28 Eaton 9155 UPS (8–15 kVA) User’s Guide 164201553—Rev H0

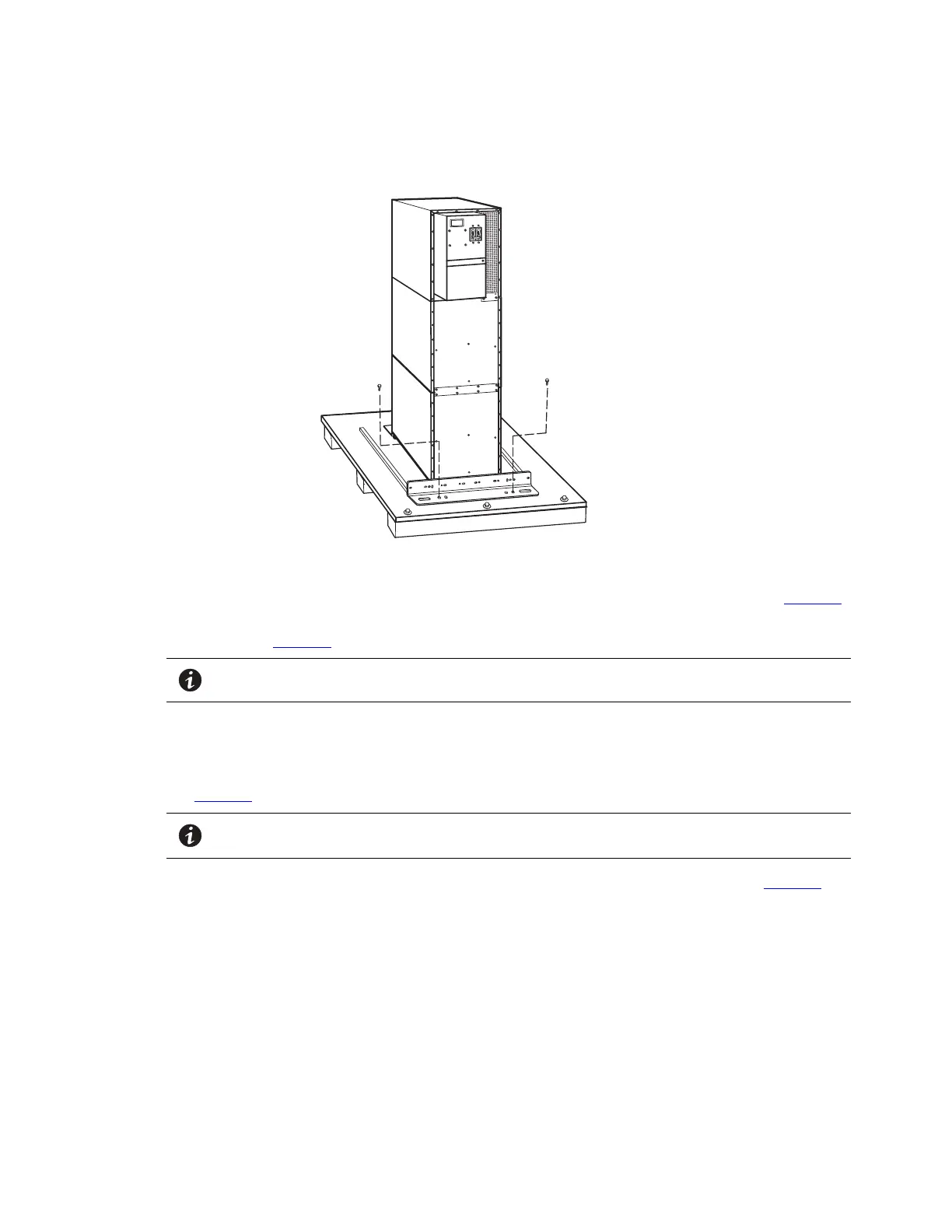

Figure 12. Removing the Stabilizing Bracket Bolts
2. Remove the M10 bolts from the two Pallet Brackets securing the leveling feet to the pallet (see Figure 13).
3. Remove the four M4 screws securing the stabilizing bracket to the cabinet rear panel and remove the
bracket (see Figure 13). Retain the hardware for later use.
NOTE Be sure to retain the stabilizing bracket and hardware for later re-assembly onto the
cabinet.
4. Remove the front cover from the bottom cabinet to access the front shipping bracket.
Press and release the handle latch at the bottom of the cover and then lift the cover up and off the cabinet.
5. Remove the three M10 bolts securing the rear shipping pad to the pallet and remove the shipping pad (see
Figure 13).
NOTE Hold the back of the cabinet so that the bolts can be removed easily without the cabinet
rolling backward.
6. Remove the two M10 bolts securing the front shipping bracket and remove the bracket (see Figure 13).
If needed, adjust the leveling feet to release the bracket.
UPS System Installation
