42 Eaton 9155 UPS (8–15 kVA) User’s Guide 164201553—Rev H0
44..33..55 BByyppaassss PPoowweerr MMoodduullee IInnssttaallllaattiioonn
For complete details on the installation process, and operation of the Eaton Bypass Power Module, refer to the
Eaton Bypass Power Module (BPM) User’s Guide, listed in paragraph 1.5 For More Information.

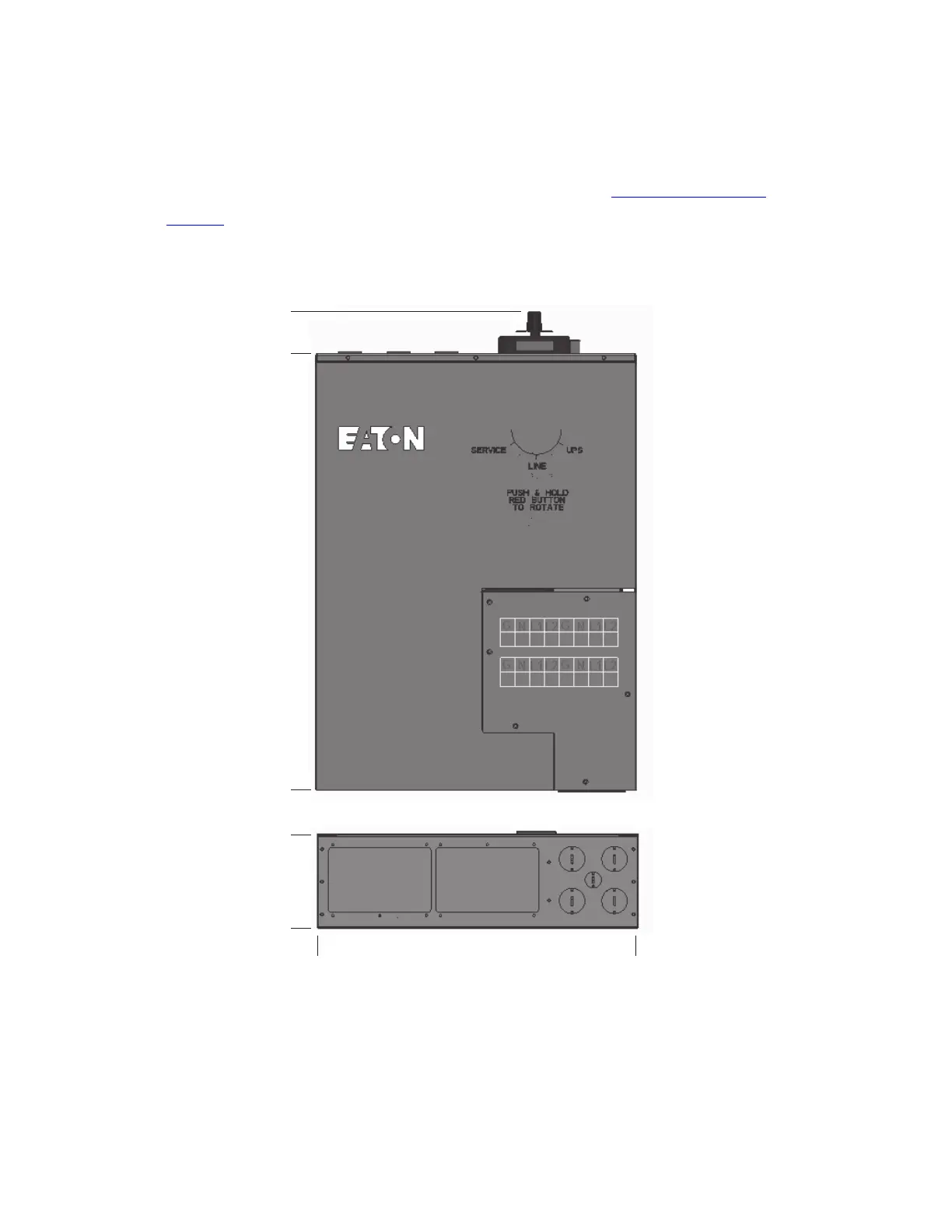

Figure 27 shows the Eaton Bypass Power Module and its dimensions.
Figure 27. Bypass Power Module Dimensions
0.0
0.0
0.0
130.1
(5.1)
603
(23.7)
663
(26.1)
440
(17.3)
Dimensions are in millimeters [inches]
UPS System Installation

Eaton 9155 UPS Specifications

General

Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	0-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
Communication Ports	USB
Safety Approvals	UL, cUL, CE
Output Voltage	208/220/230/240 VAC
Battery Type	Valve-regulated lead acid (VRLA)
Storage Temperature	-15°C to 45°C (5°F to 113°F)
