Eaton 9155 UPS - Figure 25. MBM;PDM Hardwiring

40 Eaton 9155 UPS (8–15 kVA) User’s Guide 164201553—Rev H0

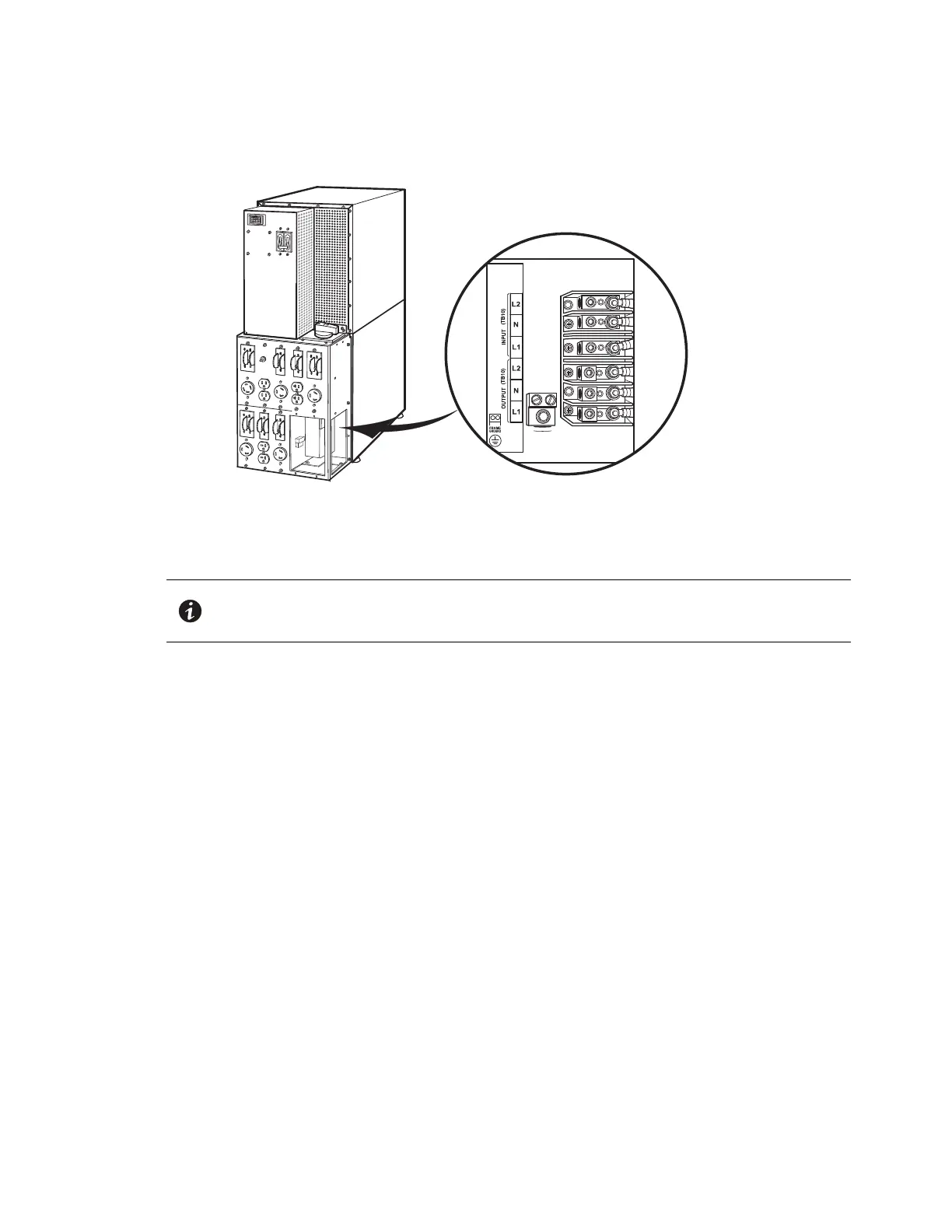

Figure 25. MBM/PDM Hardwiring
TB10
NOTE: PDM shown
NOTE Input neutral must be wired for proper operation. Failure to connect an input neutral will
void the warranty. However, when wired with the optional isolation transformer, input
neutral is supplied by the isolation transformer.
UPS System Installation
