Eaton 9355 Installation And Operation Manual

UPS Setup
12 Eaton 9355 UPS (20/30kVA) Installation and Operation Manual 164201626—Rev F www.eaton.com/powerquality
Unloading the Cabinet(s)
The following tools are required for unloading the cabinet(s):
l
15 mm wrench or socket
l
7 mm nut driver or socket
l
Adjustable wrench or channel-locks
CAUTION
The UPS and optional cabinets are heavy (see page 9). Unloading the cabinets requires at least two
people to safely remove the cabinets from the pallet.
To remove the UPS or optional cabinets from the shipping pallet:
1. Remove the two M10 bolts securing the rear shipping bracket to the pallet (see Figure 4).
2. Remove the four M8 screws securing the rear shipping bracket to the cabinet rear panel and remove the
bracket. Retain the hardware for later use.
Note: Be sure to retain the rear shipping bracket and hardware for later re-assembly if you plan to
permanently mount the cabinet.

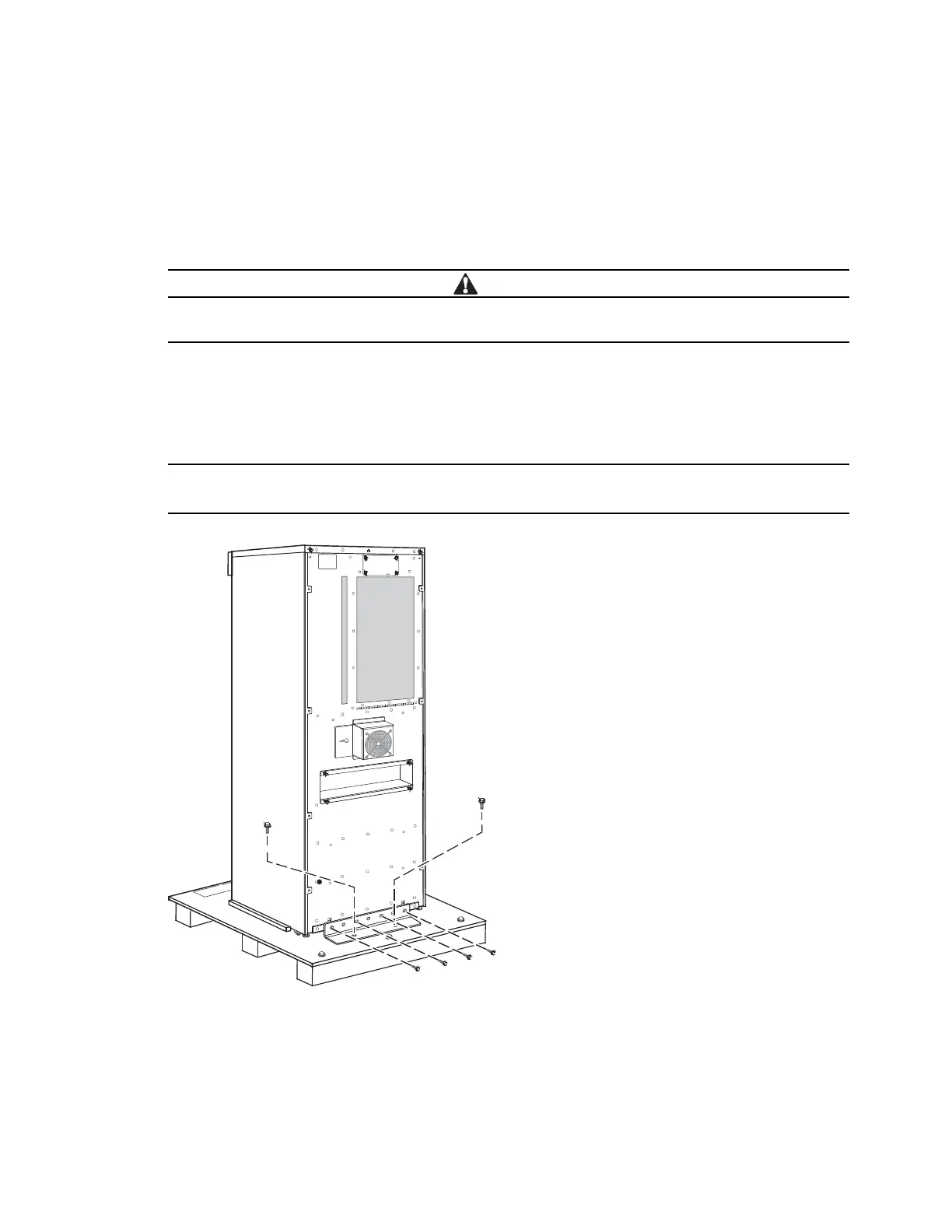

Figure 4. Removing the Rear Shipping Bracket (UPS Shown)
M8 Screws
M10 Bolts

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
