Communication
60 Eaton 9355 UPS (20/30kVA) Installation and Operation Manual 164201626—Rev F www.eaton.com/powerquality
LanSafe Power Management Software
Each Eaton 9355 UPS ships with LanSafe Power Management Software and a communication cable. To begin
installing LanSafe software, see the instructions accompanying the Software Suite CD.
Note: Use only the supplied communication cable to connect the UPS to your computer.
LanSafe software provides up-to-date graphics of UPS power and system data and power flow. It also gives
you a complete record of critical power events, and it notifies you of important UPS or power information. If
there is a power outage and the Eaton 9355 UPS battery power becomes low, LanSafe software can
automatically shut down your computer system to protect your data before the UPS shutdown occurs.
Control Terminals
The cables should be connected to the control terminals with a mating connector. Input and output terminals
have a functional isolation from terminal to terminal. They are connected to the UPS chassis through individual
1M resistors.

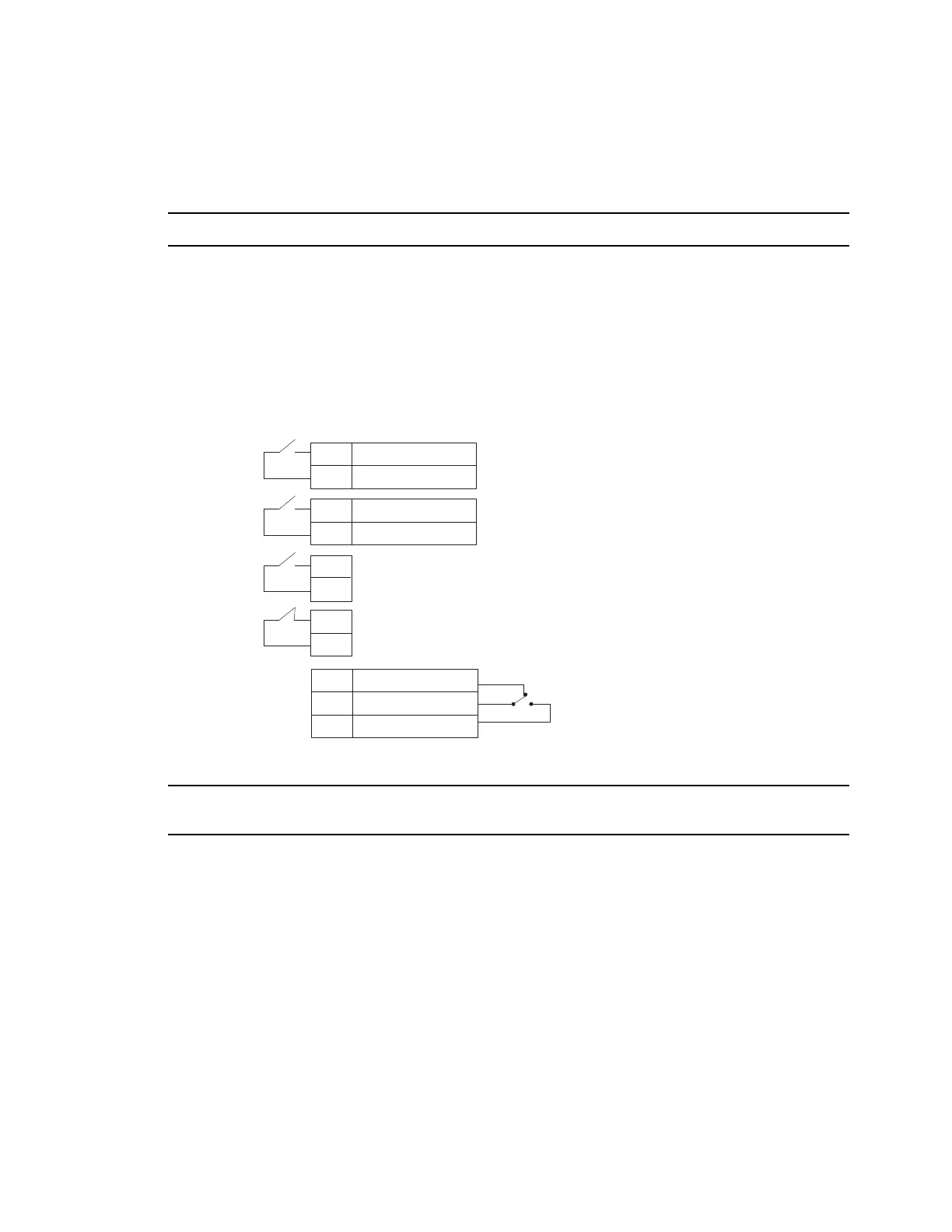

Figure 46. External Control Terminal Connections
Note: If using a semiconductor switch type, pay attention to the proper polarity. A relay or other mechanical
control is preferred.
+ Polarity
– Polarity
2
1
+ Polarity
– Polarity
2
1
2
1
2
1
Signal Input 1 (programmable)
Signal Input 2 (programmable)
REPO Normally Open
REPO Normally Closed
Normally Open
Normally Closed
1
2
Common
3
Relay Output
UPS
Connectors
(see Figure 36 on
page 53)

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
