Eaton 9355 Installation And Operation Manual

Communication
56 Eaton 9355 UPS (20/30kVA) Installation and Operation Manual 164201626—Rev F www.eaton.com/powerquality
Remote Monitor Panel
The optional RMP can be installed to monitor the operation of the UPS from virtually any location within your
facility, up to 500 ft (152.4m) from the UPS. You can surface-mount an RMP on a desktop or on a wall,
wherever you have a serial interface line. Figure 42 shows an RMP. Figure 43 shows the enclosure dimensions
and cable exit openings.

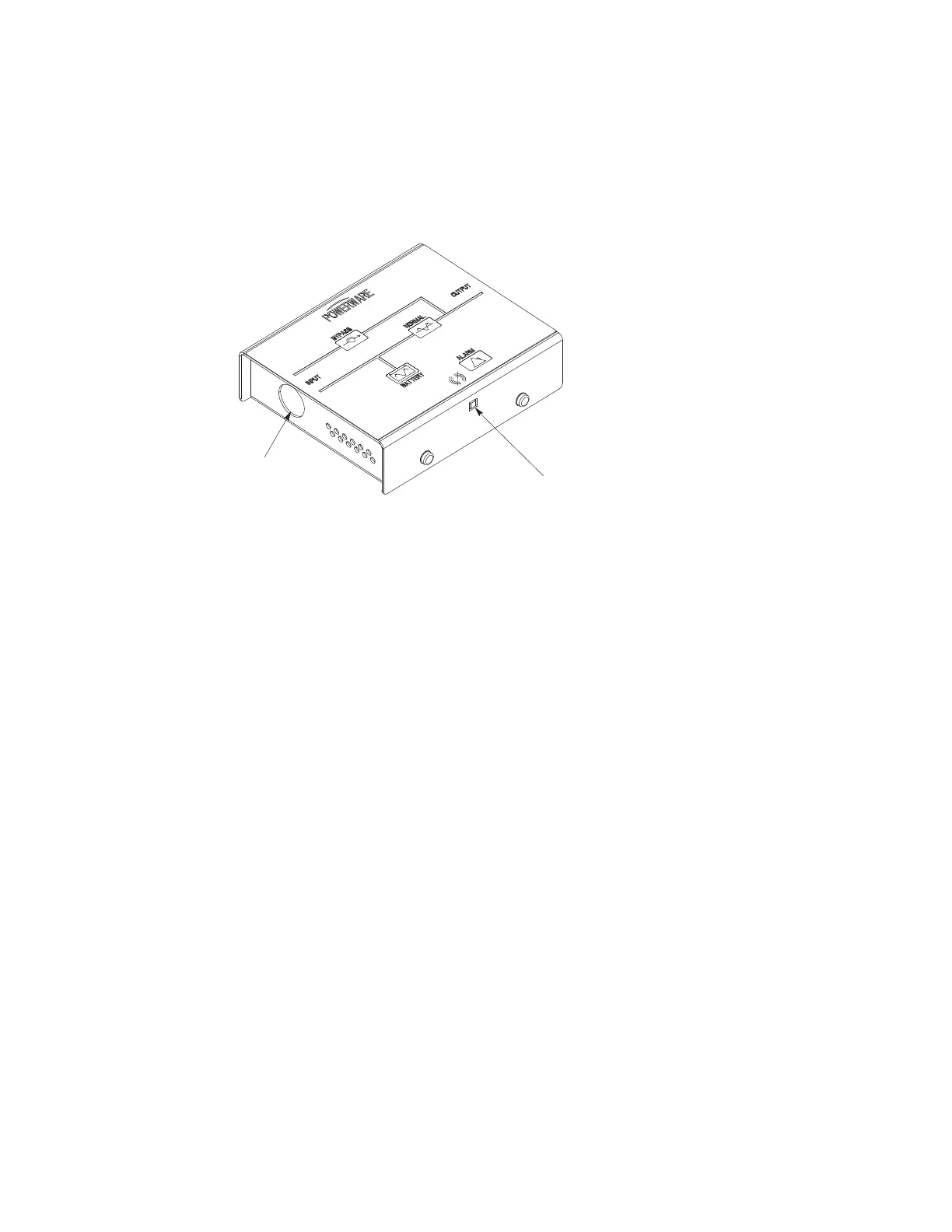

Figure 42. Remote Monitor Panel
Horn Silence Button
Cable Exit Opening for 1/2” Conduit
or Provided Strain Relief

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
