Eaton 9355 Installation And Operation Manual

Eaton 9355 UPS (20/30kVA) Installation and Operation Manual 164201626—Rev F www.eaton.com/powerquality 1
Chapter 1 Introduction
The Eaton
®
9355 uninterruptible power supply (UPS) is a true online, double-conversion, three-phase system
that can be used to prevent loss of valuable electronic information and minimize equipment downtime. It is
ideal for protecting essential information technology and electrical engineering infrastructure in corporate,
telecom, health care, banking, and industrial applications.
The Eaton 9355
UPS continually monitors incoming electrical power and removes the surges, spikes, sags,
and other irregularities that are inherent in commercial utility power. Working with a building's electrical
system, the UPS supplies clean, consistent power that sensitive electronic equipment requires for reliable
operation. During brownouts, blackouts, and other power interruptions, batteries provide emergency power to
safeguard operation.
With the Eaton 9355 UPS, you can safely eliminate the effects of electrical line disturbances and guard the
integrity of your systems and equipment. Figure 1 shows the Eaton 9355 UPS (20/30 kVA) with an optional
Extended Battery Cabinet (EBC) and Options Cabinet.
!
IMPORTANT
Startup and operational checks must be performed by an authorized Eaton Customer Service Engineer,
or the warranty terms specified on page W-1 become void. This service is offered as part of the sales
contract for the UPS. Contact an Eaton service representative in advance (a minimum two-week notice
is required) to reserve a preferred startup date.

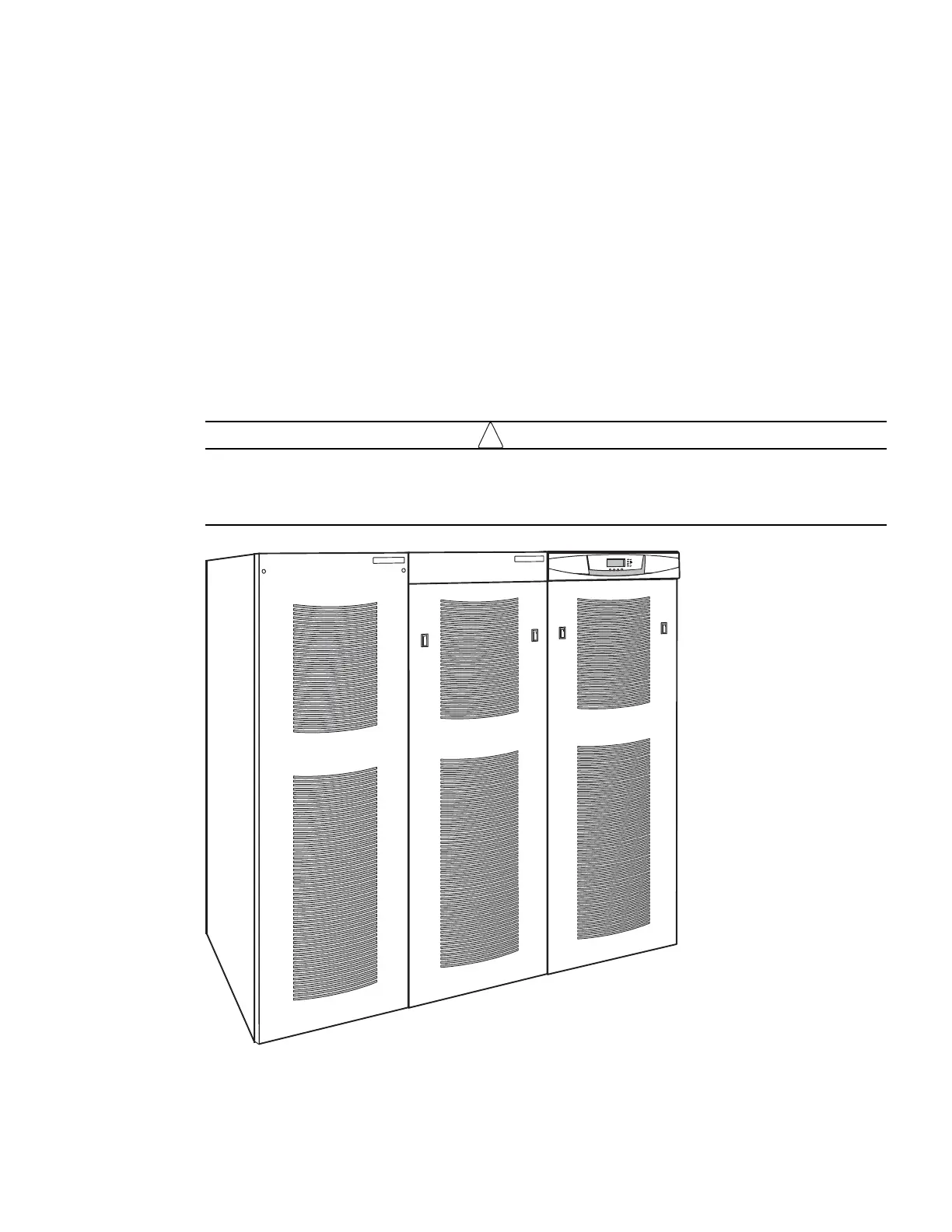

Figure 1. The Eaton 9355 UPS (20/30 kVA) with Optional EBC and Options Cabinet

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
