Eaton 9355 UPS (20/30kVA) Installation and Operation Manual 164201626—Rev F www.eaton.com/powerquality 51
Chapter 8 Communication
This section describes the:
l
DB-9 communication port
l
X-Slot cards
l
Remote Monitor Panel (RMP) and Industrial Relay Card (IRC)
l
LanSafe
®
Power Management Software
l
Remote emergency power-off (REPO)
l
Relay output contacts
l
Programmable signal inputs

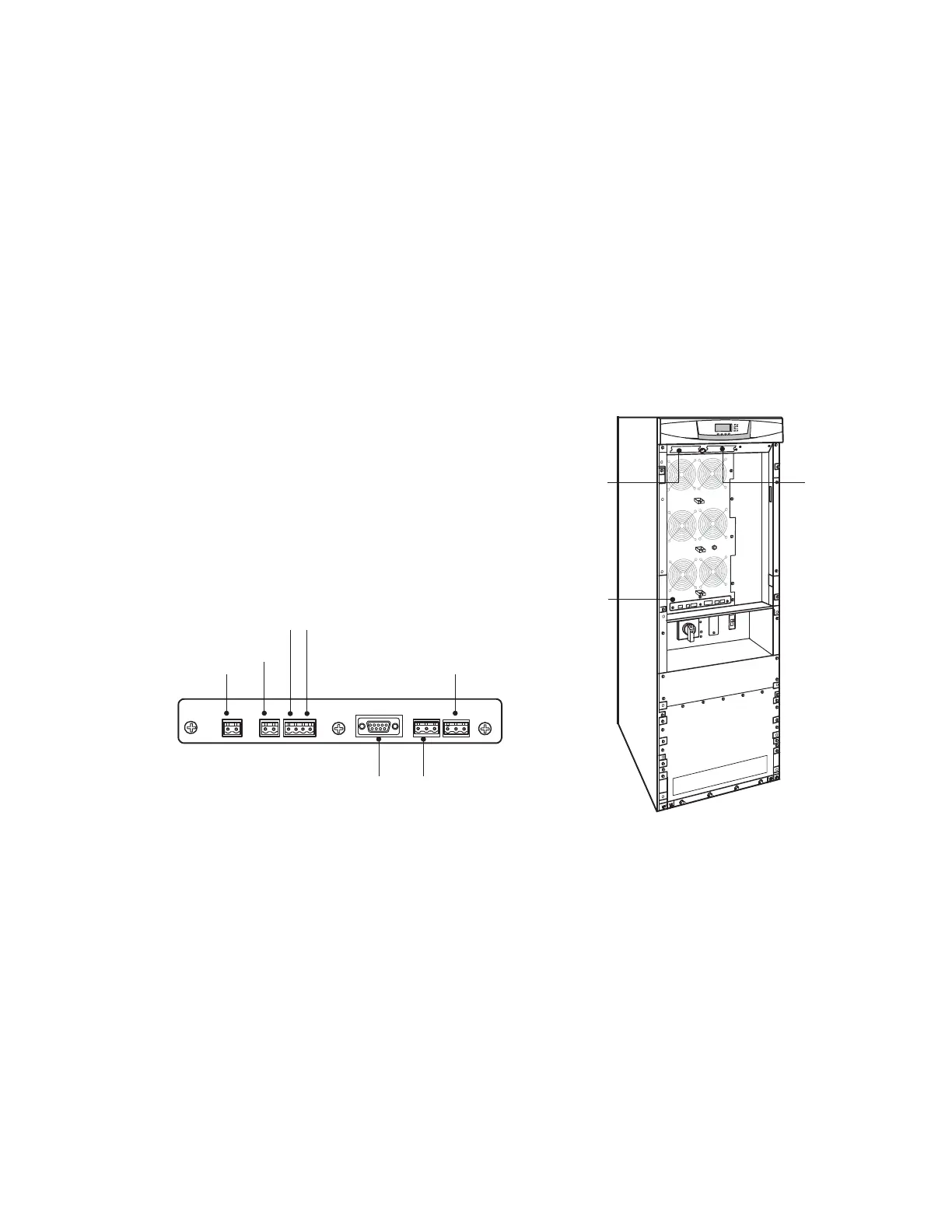

Figure 36 shows the location of the communication options and control terminals on the UPS.
Figure 36. Communication Options and Control Terminals
DB-9 Communication Port
REPO (normally open)
Signal Input 2
Signal Input 1
X-Slot
Communication
Bay #2
X-Slot
Communication
Bay #1
Relay Output Contacts
Control
Terminals
REPO (normally closed)
Pull-Chain Output
Contacts (parallel only)

Eaton 9355 Specifications

General

Efficiency	91 %
Noise level	58 dB
Output power	27000 W
Input frequency	50/60 Hz
Audible alarm(s)	Yes
Input power factor	0.99
Output power factor	0.9
Output power capacity	30 kVA
Input operation voltage (min)	220 V
Input current Total Harmonic Distortion (THD)	5 %
RS-232 ports	1
AC outlet types	-
AC outlets quantity	- AC outlet(s)
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Form factor	Tower
Display type	LCD
Certification	EN 50091-2 Class A\\r UL, cUL, NOM-NYCE
Product color	Black
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	- min
Operating altitude	0 - 3000 m
Storage temperature (T-T)	0 - 25 °C
Operating temperature (T-T)	10 - 40 °C

Weight and Dimensions

Depth	866.14 mm
Width	508 mm
Height	1676.4 mm
