6.2.1 Hose connection

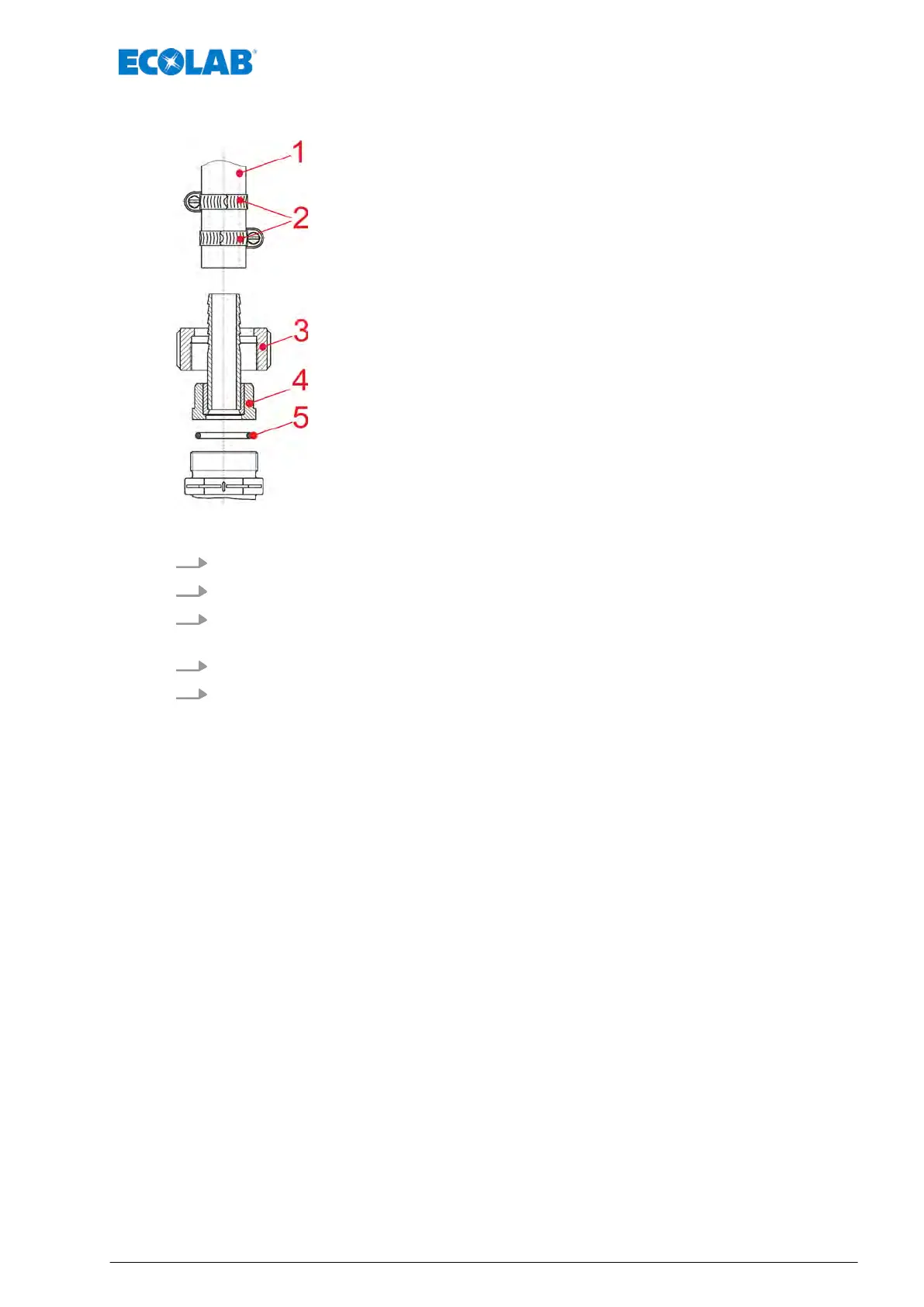

Fig. 4: Hose connection
1. Cut the hose (Item 1) straight.
2. Position the O-ring seal (Item 5) in the groove of the connections.
3. T
ighten the hose nozzle (Item 4, welded to the insertion element) with the union nut
(Item 3).
4. Slip the hose clip (Item 2, two items recommended) over the hose.
5. Slip the hose over the hose nozzle (Item 4) and tighten the hose clips (Item 2).
Mounting, installation
25 417101434 Rev. 5-05.2019
