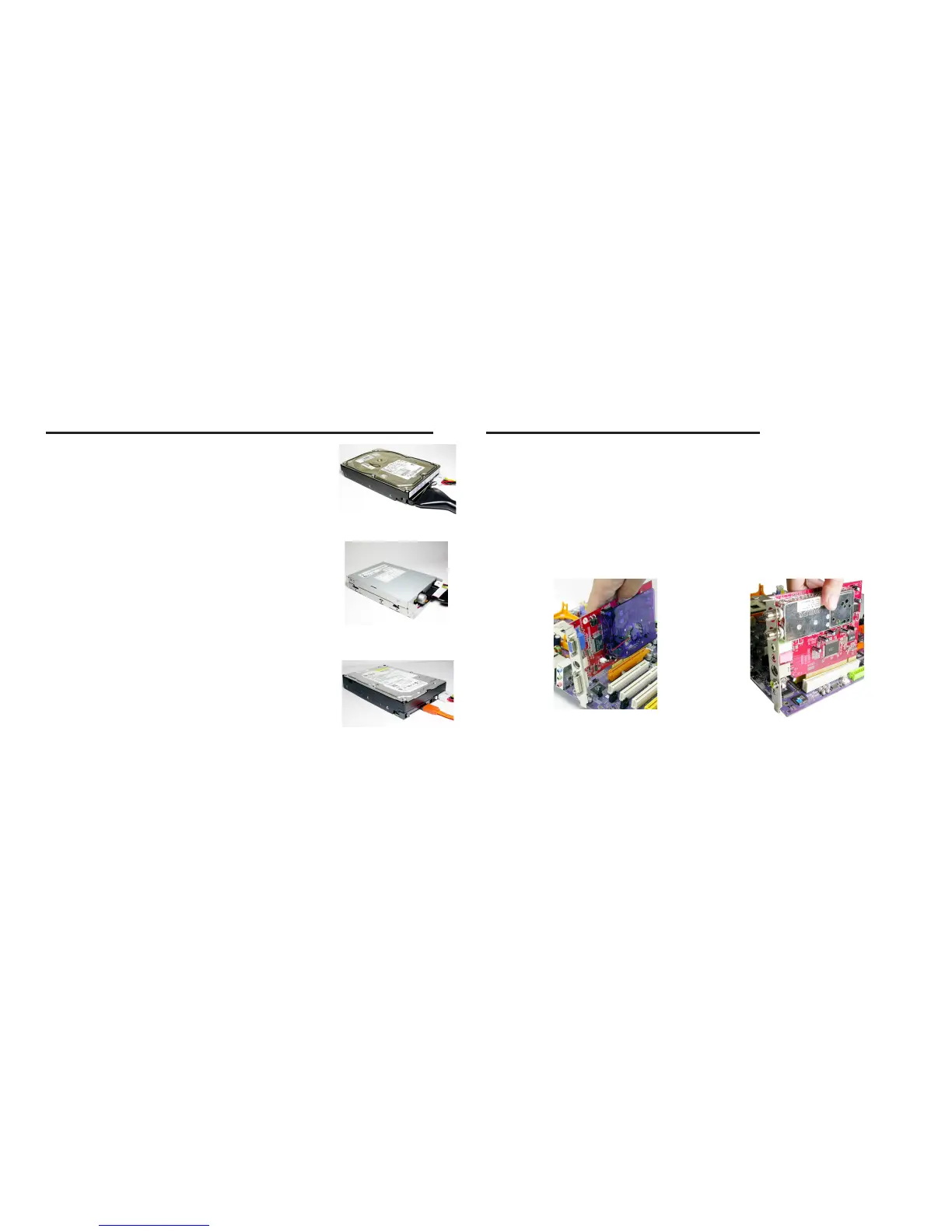

2.6 Connecting IDE, Floppy & SATA Device
1. If installing two IDE devices on the same
ribbon cable, one device must be set to
“master” and the other to “slave.” Check
the accompanying documents for the
master/slave settings of IDE Devices, ie.:
the hard disk and CD-ROM drives and then
set their jumper caps accordingly.
2. Mount the drives in the case.
3. Connect the floppy disk ribbon cable and
power cable.
4. Connect the IDE ribbon cable and power
cable.
IDE Hard Disk
Floppy Disk Device
SATA Hard Disk
2.7 Installing Expansion cards
1. Remove the slot covers from the case where you will be installing
the expansion cards.
2. Install your graphics card in the proper slot if your motherboard does
not have integrated graphics.
3. Press the card firmly into the slot
4. Secure the card with the screw from step 1.
5. Install other expansion cards using the same procedure.
Graphics card
PCI card
