5 Technical characteristics
5.1 EWM2000 Electronic control unit
1. Main PCB
2. Control/Display Board
The main PCB performs the following functions:
• acquisition of the wash cycle settings via the control/display board.
• control of the water level in the tub via the electronic pressure switch and the safety pressure
switch.
• control of the temperature of the washing solution via an NTC sensor.
• control of the speed of rotation of the motor via a signal from the tachometric generator.
• powering of all the electrical components in the washing machine and control of the wash cycle

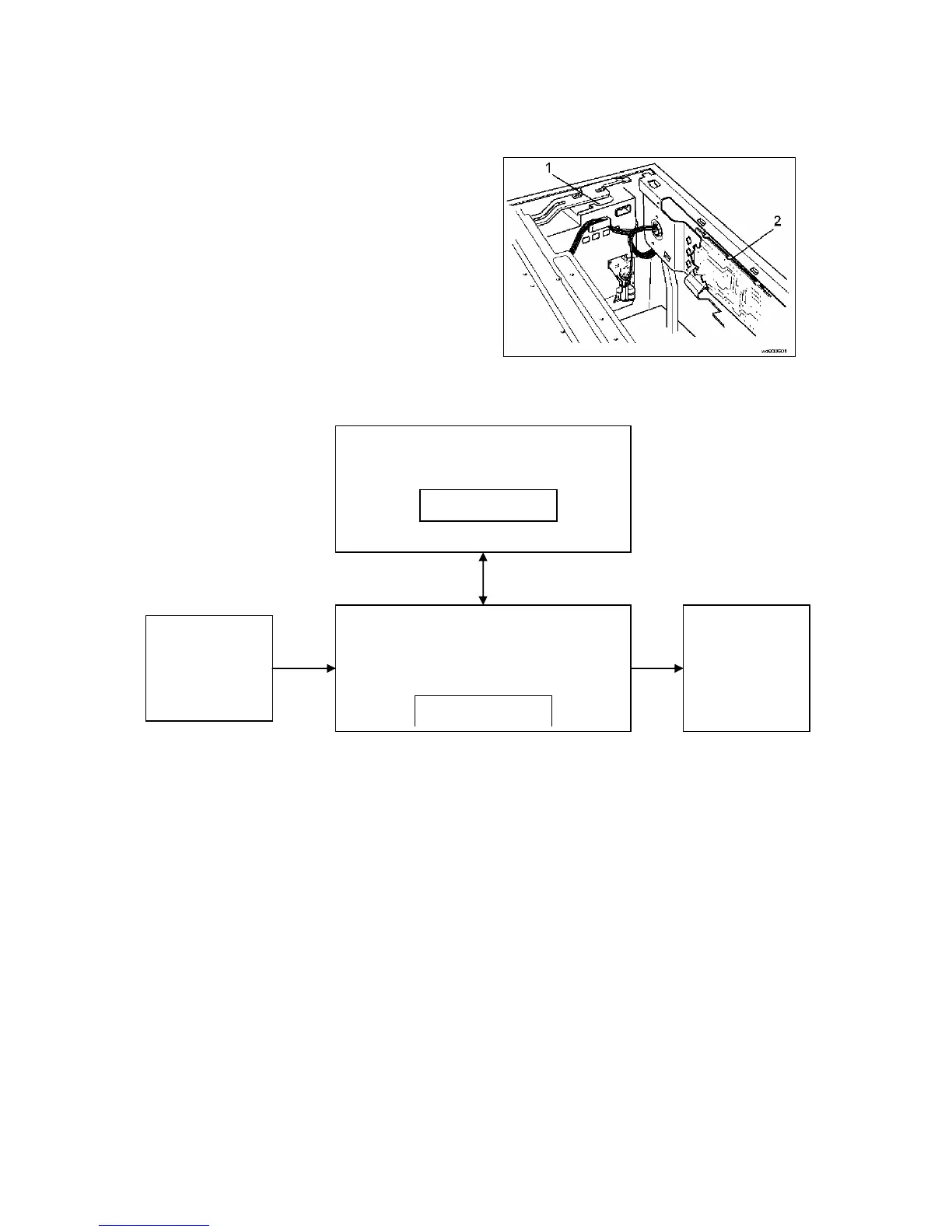

DISPLAY BOARD
Microprocessor
MAIN PCB
microprocessore
SENSORS
ELECTRICAL
LOADS
