TSE-P 02.00 EB 39/60 599 35 24-30

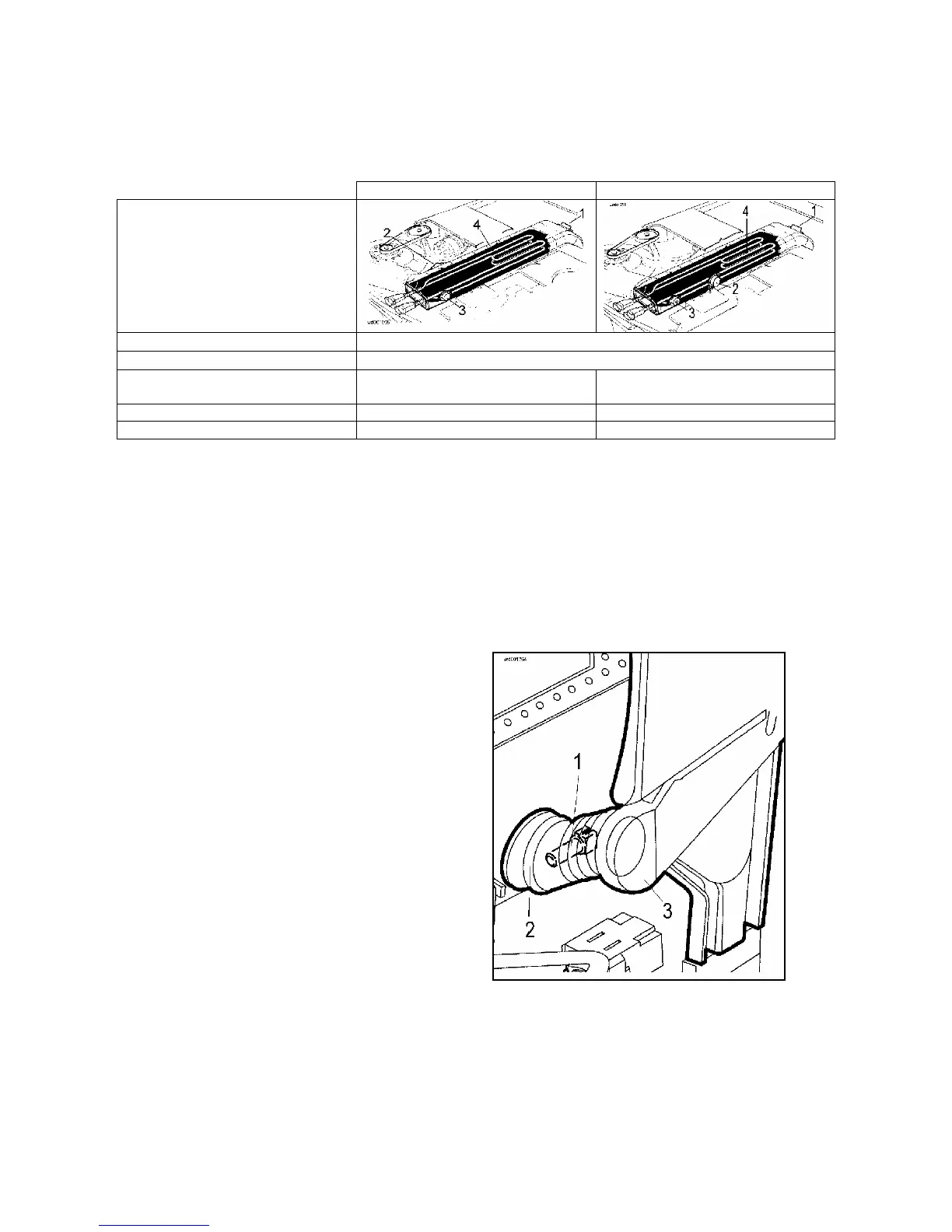

6.1.1 Temperature control
An NTC sensor fitted to the duct is used to control the drying temperature; two safety thermostats (one of
which is a manual-reset type) are fitted to the casing of the heating element.
“Standard” Version “High performance” Version
1. NTC sensor for control of
drying temperature
2. Automatic-reset safety
thermostat
3. Manual-reset safety
thermostat (150ºC)
4. Drying heater
NTC Sensor : resistance at 25°C
5000Ω
Manual-reset safety thermostat
Normally closed, opens at 150°C
Automatic-reset safety
thermostat
Normally closed, opens at 98°C Normally closed, opens at 110°C
Drying heater power
700 + 700 W 1000+1000 W
Fan rate
about 55 m
3
– hour about 80 m
3
– hour
6.1.2 Determining the drying time:
In automatic cycles, the NTC sensor fitted to the drying condenser is used to control the drying time.
1. NTC temperature sensor
2. Tub-condenser pipe
3. Drying condenser
