TSE-P 02.00 EB 38/60 599 35 24-30
6 Drying circuit (washer-dryers)
The drying system is identical to that used for washer/dryers with traditional timers.
There are 2 versions:
“Standard” with drying heating elements of 700+700 W
“High performance” with drying heating elements of 1000+1000 W

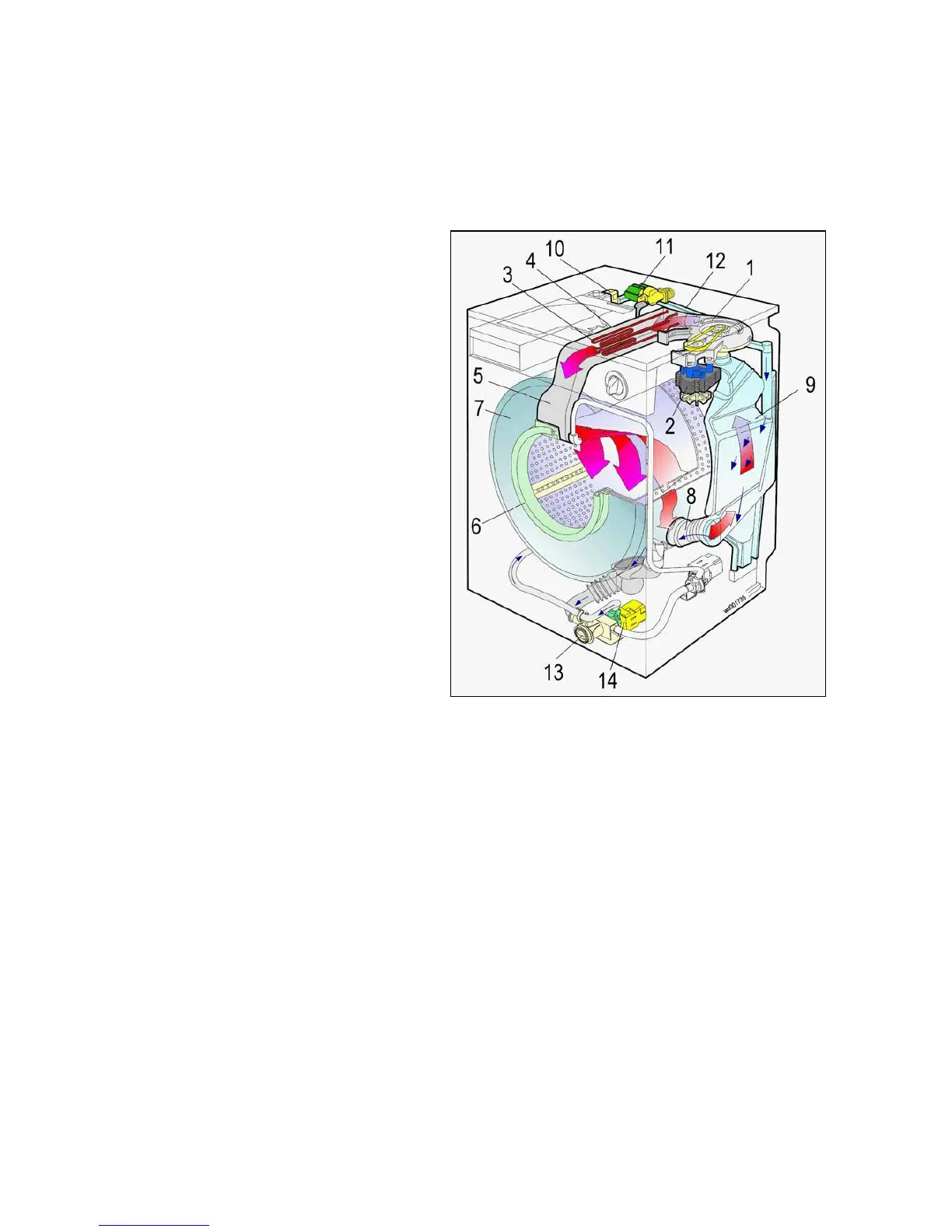

1. Fan
2. Fan motor
3. Drying heating elements
4. Heating element casing
5. Duct
6. Door gasket
7. Tub
8. Tub-condenser hose
9. Drying condenser
10. Manifold
11. Condensation water inlet valve
12. Condenser-manifold pipe
13. Body filter
14. Drain pump
Automatic drying cycles: the drying time is controlled by the microprocessor to provide the desired level of
humidity.
The drying cycle may be carried out at the end of the washing cycle or separately.
Three types of drying can be selected:
• Extra dry (for cotton only)
• Cupboard dry (cotton and synthetics)
• Iron dry (for cotton only)
Time-controlled cycles: the drying time is selected by the user (maximum 130 minutes for cottons, 100
minutes for synthetics).
Cooling: At the end of all drying cycles, a cooling phase takes place.
The drying heater is powered directly by the main PCB via two relays and the contacts of the safety
pressure switch.
In cycles for synthetic fabrics, drying takes place with only one of the branches of the heating element in
operation (half-power). For cotton cycles, both branches of the heating element are used (full power).
The fan motor is powered by a different relay; the solenoid valve is powered by a TRIAC.
