Electrolux AWF 1210 User Manual

TSE-P 02.00 EB 43/60 599 35 24-30

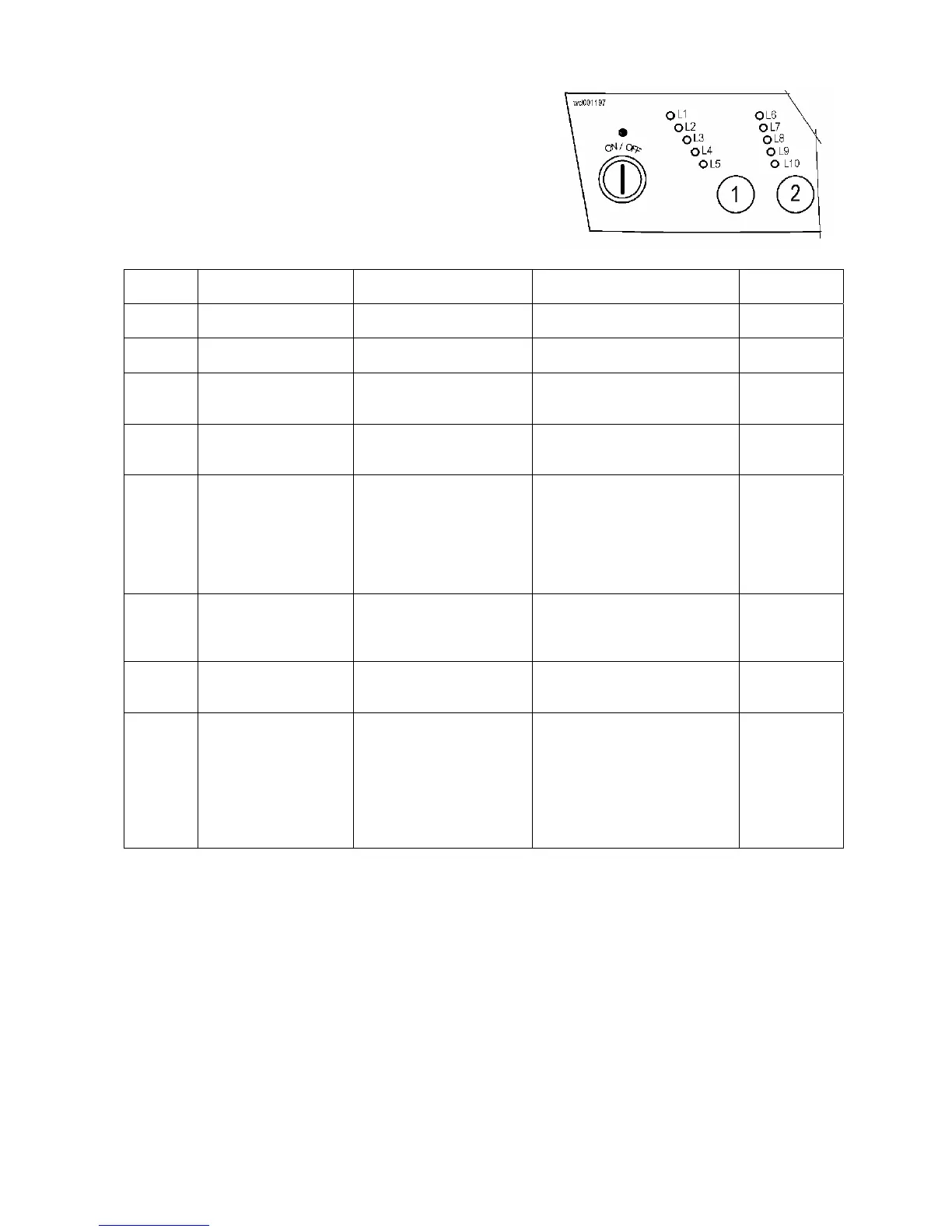

7.4 Diagnostics cycle
When the FABRICS (1) or TEMPERATURE (2) buttons are
pressed, the system passes to the previous or subsequent phase
of the diagnostics cycle. The LED corresponding to the phase of
the diagnostics cycle lights.
LED
Function
tested
Components
actioned
Operating
conditions
Parameters
displayed
3
Water fill to wash
compartment
- door interlock
- wash solenoid
Door closed, water fill to anti-
overflow level for max. 10 min
Water level in
mm
4
Water fill to pre-wash
compartment
- door interlock
- pre-wash solenoid
Door closed, water fill to anti-
overflow level for max. 10 min
Water level in
mm
5
Water fill to conditioner
compartment
- door interlock
- pre-wash solenoid
- wash solenoid
Door closed, water fill to anti-
overflow level for max. 10 min
Water level in
mm
6
Hot water fill or fill to
bleach compartment
(certain models only)
- door interlock
- hot water or bleach
solenoid
Door closed, water fill to anti-
overflow level for max. 10 min
Water level in
mm
7
Heating (and, in
Jetsystem models,
recirculation)
- door interlock
- (wash solenoid if level is
lower than the
antiboiling device)
- recirculation pump
(Jetsystem models)
- heating element
Door closed, water fill to above
anti-boiling level if not yet
reached, heating for max. 5
min or to 55°C (*)
Water
temperature in
°C
8
Check for leaks from
tub
- door interlock
- (wash solenoid if level is
<150mm)
- motor
Door closed, water fill above
150mm level if not yet reached,
motor until the drum reaches
250 rpm
Motor speed
(rpm)
9
Drain and spin, check
for pressure switch
congruency
- door interlock
- drain pump
- motor
Door closed, water drain, motor
movement, until maximum spin
speed is reached
Motor speed
(rpm ÷ 10)
10
Drying (washer/dryers
only)
- door interlock
- drain pump
- drying heater (full
power)
- fan motor
- condensation solenoid
Door closed, water drain to a
level lower than the anti-boiling
device, drying heater for max.
10 min or until the drying
temperature sensor (fitted to
the duct) detects a temperature
of 150°C
NTC drying
temperature
sensor on duct
and condenser
(in °C,
displayed
alternately for 2
sec)
(*) When the max. time is exceeded (timeout) error E61 is normally displayed (insufficient heating during
wash) since, although the heating is performed with the drum still, not every appliance can reach the
55°C temperature in 5 minutes.
In most cases this time is sufficient to control the heating; to reach the pre-set temperature, repeat this
phase without draining the water (skip for a while to another diagnostics phase and then go back to
heating control phase again).
If an alarm condition occurs during the course of the diagnostics cycle, the appliance stops and the
display or LEDs flash to indicate the alarm code.
