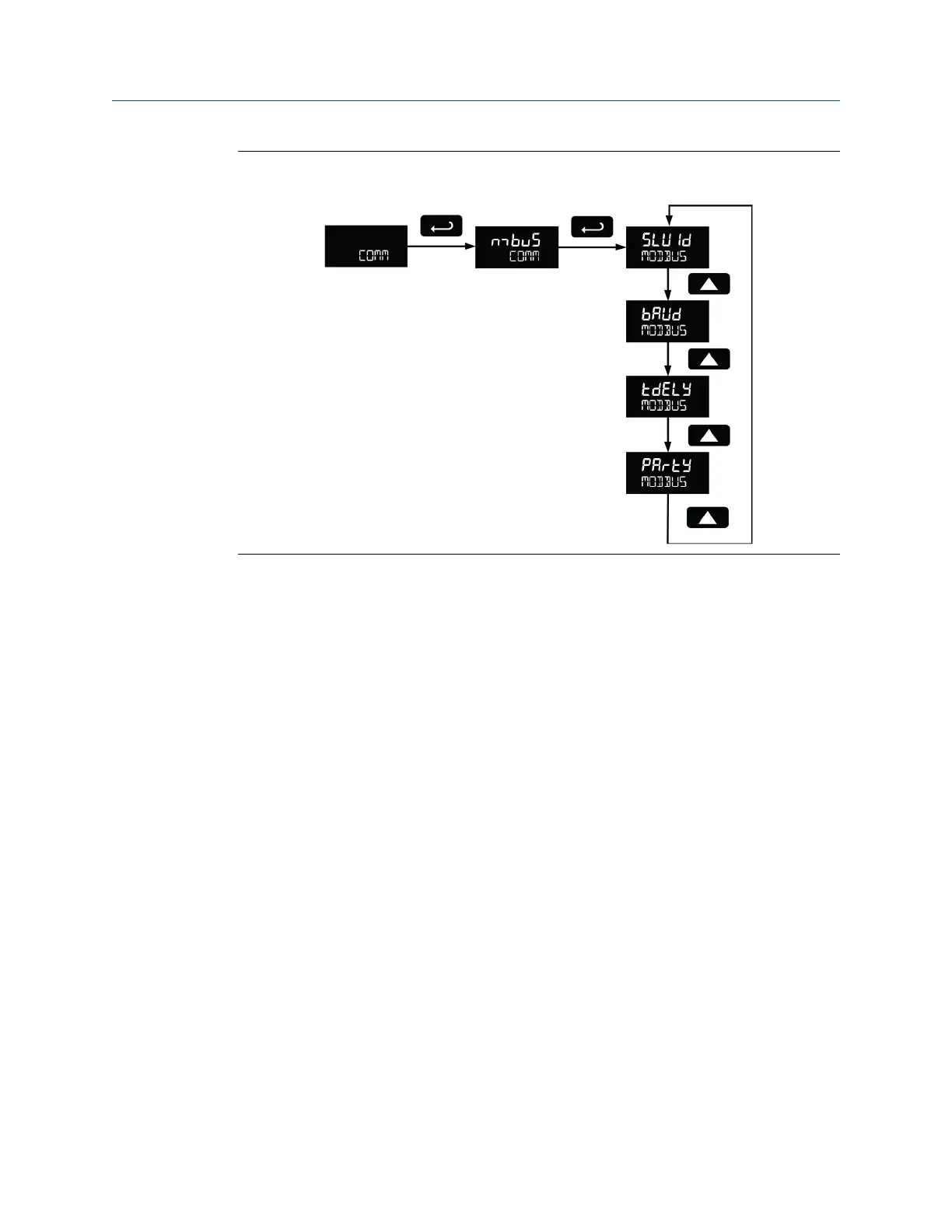

Serial communications (COMM)Figure 6-23:
Modbus communications is performed with the 2-wire RS-485 with Modbus RTU option.
When using more than one meter in a multi-drop mode, each meter must be provided
with its own unique address. The meter address (Slave ID) may be programmed between 1
and 247. The baud rate may be set to 1,200; 2,400; 4,800; 9,600; 19,200; 38,400; 57,600;
or 115,200 bps. The transmit delay may be set between 0 and 199 ms. The parity can be
set to even, odd, or none with 1 or 2 stop bits.
For ProtEX Modbus Register Tables, contact Daniel.
6.14
Standby mode (STANDBy)
Standby mode is available on battery powered and battery backup models only.
The Standby menu is used to enter a power-saving standby mode that will turn off the
display and activate a low power mode for the through-glass buttons. Signal processing
operations will continue to run. This mode may be used to reduce power consumption and
increase battery life when the meter is not in use.
Product advanced features
84 LTM Internal Display
