3. Parameters of DC reactor (TDL-4DI01-XXXX)
The 75kWG and larger drives with standard configurations have DC reactor. The models and parameters for reactors
applicable to 55kW or below drives are listed below.
Table A-5 Parameters of 380V series DC reactor
Drive’s
power
(kW)
Reactor model
Reactor
product code
Fig. No.
Cutout sizes
(mm)
Installation sizes
(mm)
Weight(
kg)
PC
(W)
Pm
(W)
L
1
b
1
h n
2
n
1
d
11
TDL-4DI01-0150
K424-EM02
Fig.A-4
114
100 98 100 80 6.5 4 15 23.5
15
18.5
TDL-4DI01-0220
K424-EM04
134 100 114 120 80 6.5 6.8 24 30.6
22
30
TDL-4DI01-0370
K424-EM05 134 120 114 120 100 6.5 8 28 33.2
37 K424-EM06 134 140 114 120 100 6.5 10 33 42.8
45
TDL-4DI01-0550
K424-EM07
Fig.A-5
134 140 114 120 100 6.5 10 33 42.8
55 K425-EM10 135 120 225 100 80 6.5 14 36 63.7
380V Series EMI Filter
1. Model description
DL-20EBT1, where DL denotes the power filter series of Changzhou Jianli Electronic Co.,Ltd., 20 denotes the rated
current, EB denotes the 3-PH 3-wire system, while T1 and K1 denotes the internal circuit structure.
2. Sizes
The sizes of EMI filter are shown in Fig. A-6. See Table A-6 for the details.
C
A
B
H
J
G
I
L
E
M
M
F
P
K

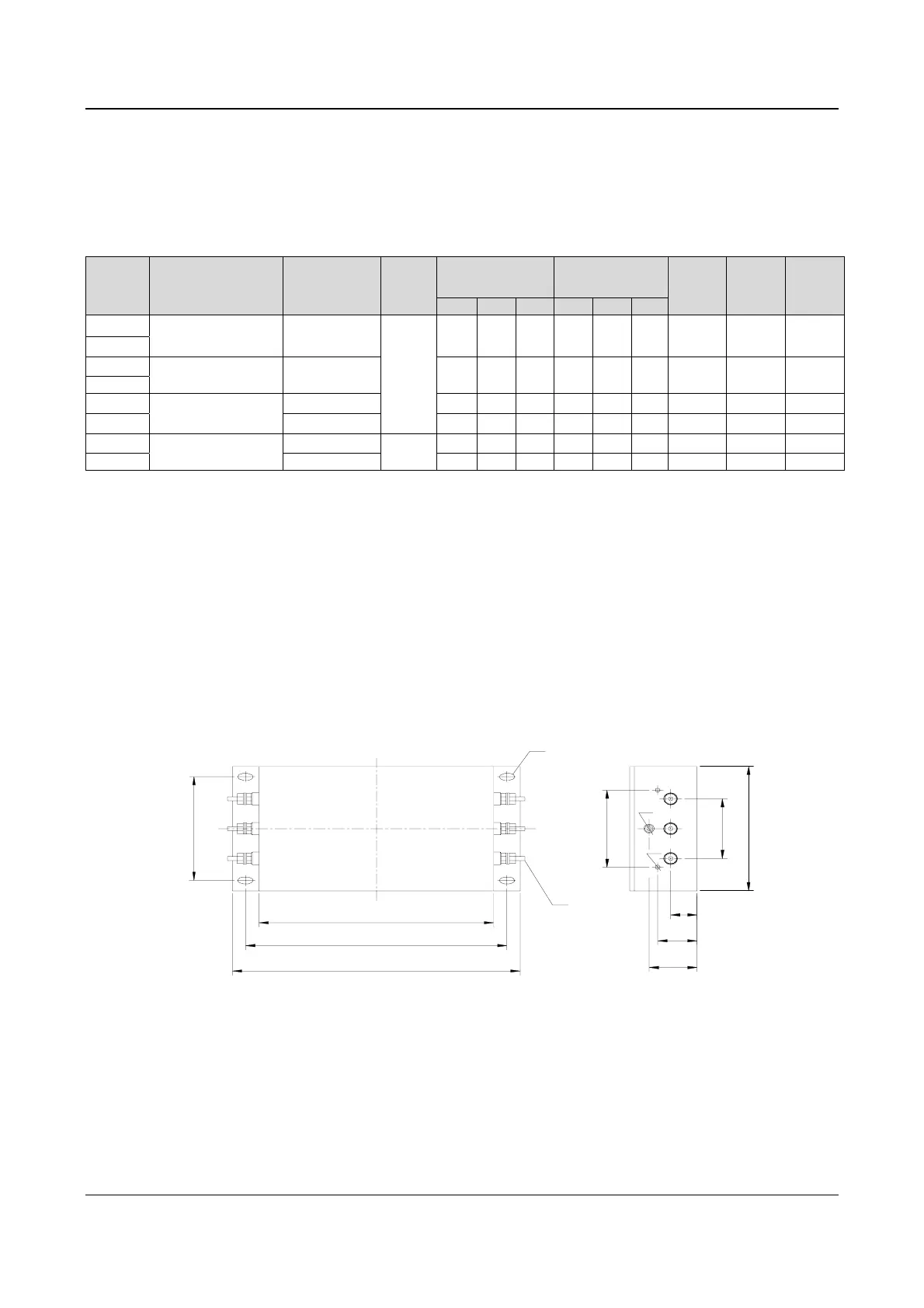

Fig. A-4 Outline of EMI
