Chapter 3 Installation and Wiring 15
EV2000 Series Universal Variable Speed Drive User Manual
Chapter 3 Installation and Wiring
3.1 Installation Environment
Please mount the drive vertically inside a well-ventilated
location.
When selecting mounting environment, the following
issues should be taken into account:
Ambient temperature should be within the range of
-10℃~40℃. If the temperature is higher than 40 ℃, the
drive should be derated and forced ventilation is
required;
Humidity should be lower than 95% non-condensing
Mount in the location where vibration is less than
5.9m/s
2
(0.6G);
Mount in the location free of direct sunlight, dust, metal
powder, corrosive gas or combustible gas.
If there are any special requirements for installation,
please contact us for clarifications.

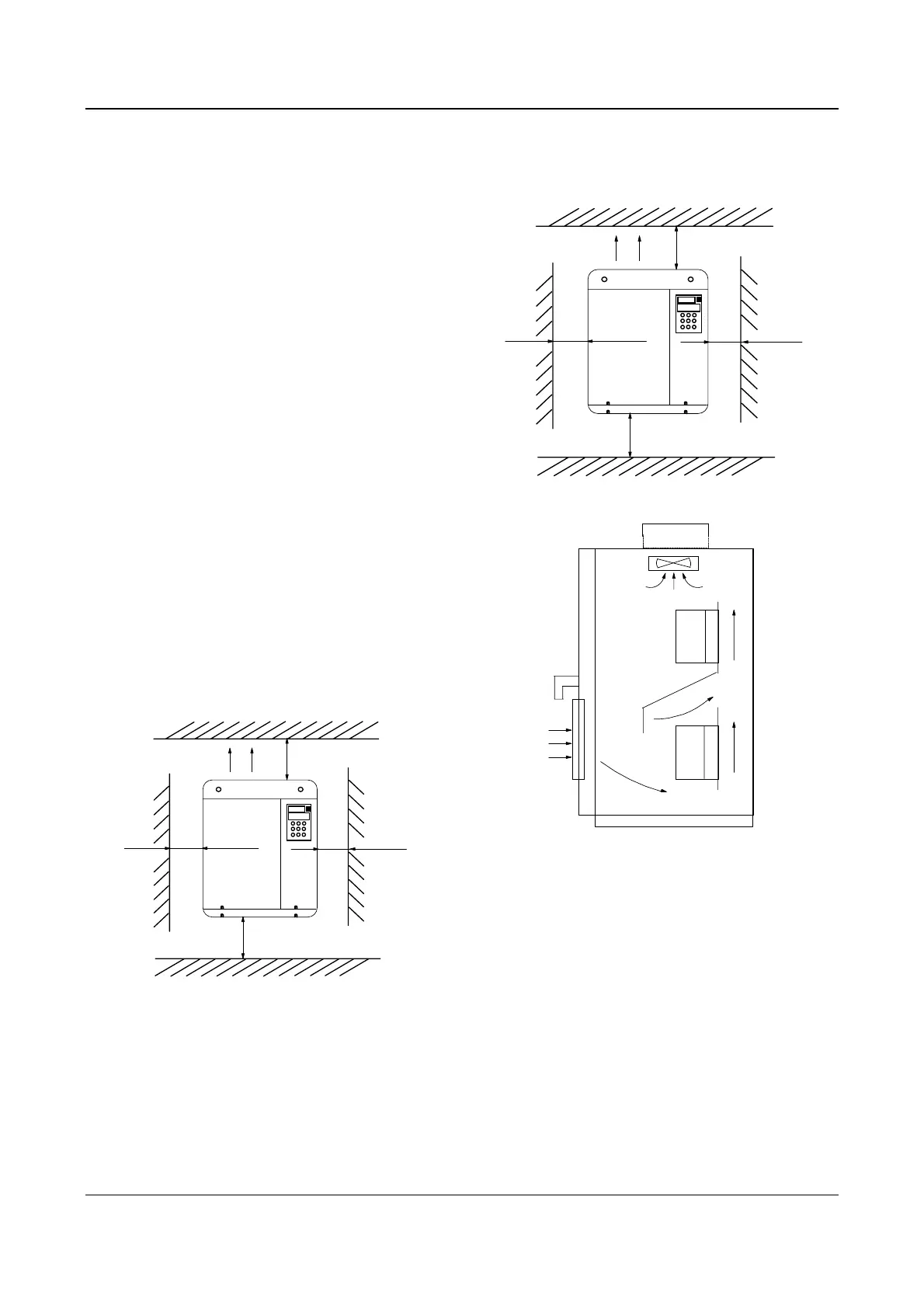

The requirements on mounting space and clearance are
shown in Fig. 3-1 and Fig. 3-2.
When two Variable Speed Drives are mounted one on
top the other, an air flow diverting plate should be fixed
in between as shown in Fig. 3-3.
10cm
or above
5cm
or
above
5cm
or
abo ve
10cm
or above
air expulsion by fan
Fig. 3-1 Installation clearance (45kW or below)
35cm
or above
15cm
or
abo ve
15cm
or
above
35cm
or above
air expulsion by
fan
Fig. 3-2 Installation clearance(55kW or above)
Drive
Drive
Fig. 3-3 Installation of several drives
3.2 Removing and Mounting of Parts
3.2.1 Removing and Installation of Operation Panel
1. Disassembly
Put your middle finger into the hole on the top of
operation panel, press down the snapper and pull the
panel outward as shown in. Figure 3-4.
2. Installation
Place the bottom edge of the operation panel at the
hooks of the mounting groove and press down the
To Next Page
