12 Chapter 2 Product Introduction
EV2000 Series Universal Variable Speed Drive User Manual
3. Optional panel and mounting box
a) Operation panel b) Mounting box (Model: EVF-KB02)

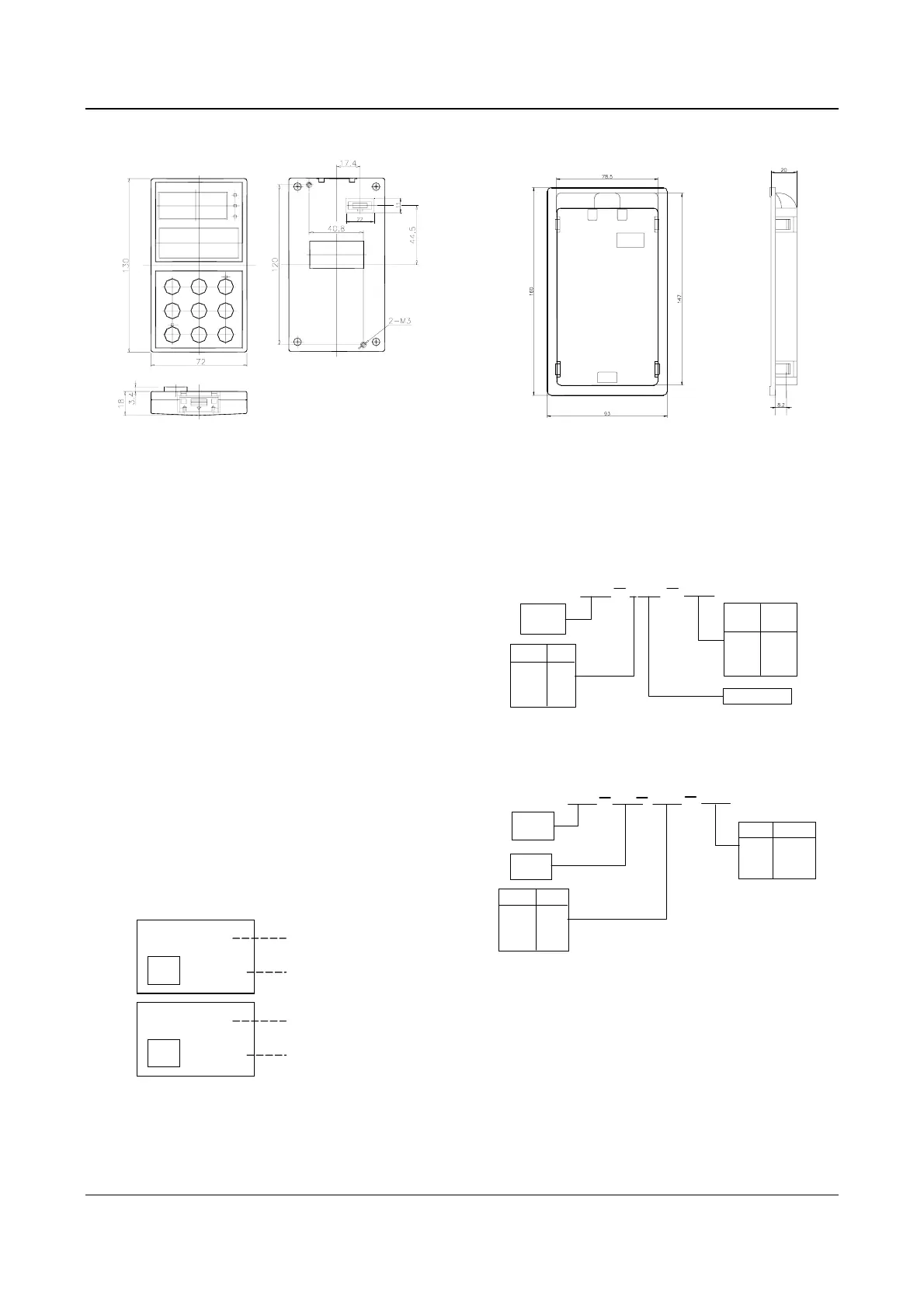

Fig. 2-4 Operation panel and mounting box
2.3 Optional Parts
All the optional parts are given below, make additional
orders if needed.
2.3.1 LCD Operational Panel
Model:TDP-LCD03
Language: Chinese/English optional
LCD operation panel can perform fast parameter copy.
Interface: As shown in Fig. 2-5, the interface is divided
into main display area, operation instruction area and
explanations for operation instructions.
Main display area: Display the status, parameters.
Operation display area: Display the next operation, if
there are several operations for selection, the operation
contents will be displayed in this area one by one.
Explanations for operations: Display the explanations for
the “operation display area”
Freq. Set Mode
E/D
Parameter
Main display area
Operation display are
a
FREQ SET
E/D
DATA SET
Main display area
Operation display are
a
Fig. 2-5 LCD display interface
2.3.2 Braking Kits
1. Braking kit
TDB
4C01 0150
Braking unit
Volt
Code
220V 2
380V 4
660V 6
Code
220V 2
380V 4
660V 6
Motor
power
Braking
kit
Fig. 2-6 Model of braking kit
2. Braking resistor
TDB
R01
0015
Power
Code
1.5kW 0015
3.0kW 0030
5.0kW 0050
Code
0400 2
0200 4
0100 6
Resistor
Braking
Kit
0400
Braking
resistor
Fig. 2-7 Explanations of Model of braking resistor
