Chapter 4 Operation Instructions 41
EV2000 Series Universal Variable Speed Drive User Manual
enter menu level 3
F3.00
enter menu level 1
enter menu level 2
Save
F0
F3
50.00
F3.13
05.00
.
06.50
XX
F3.14
F3.13
F3
50.00
ENTER
DATA
Not save
MENU
ESC
MENU
ESC
F3
MENU
ESC
ENTER
DATA
ENTER
DATA
MENU
ESC
MENU
ESC

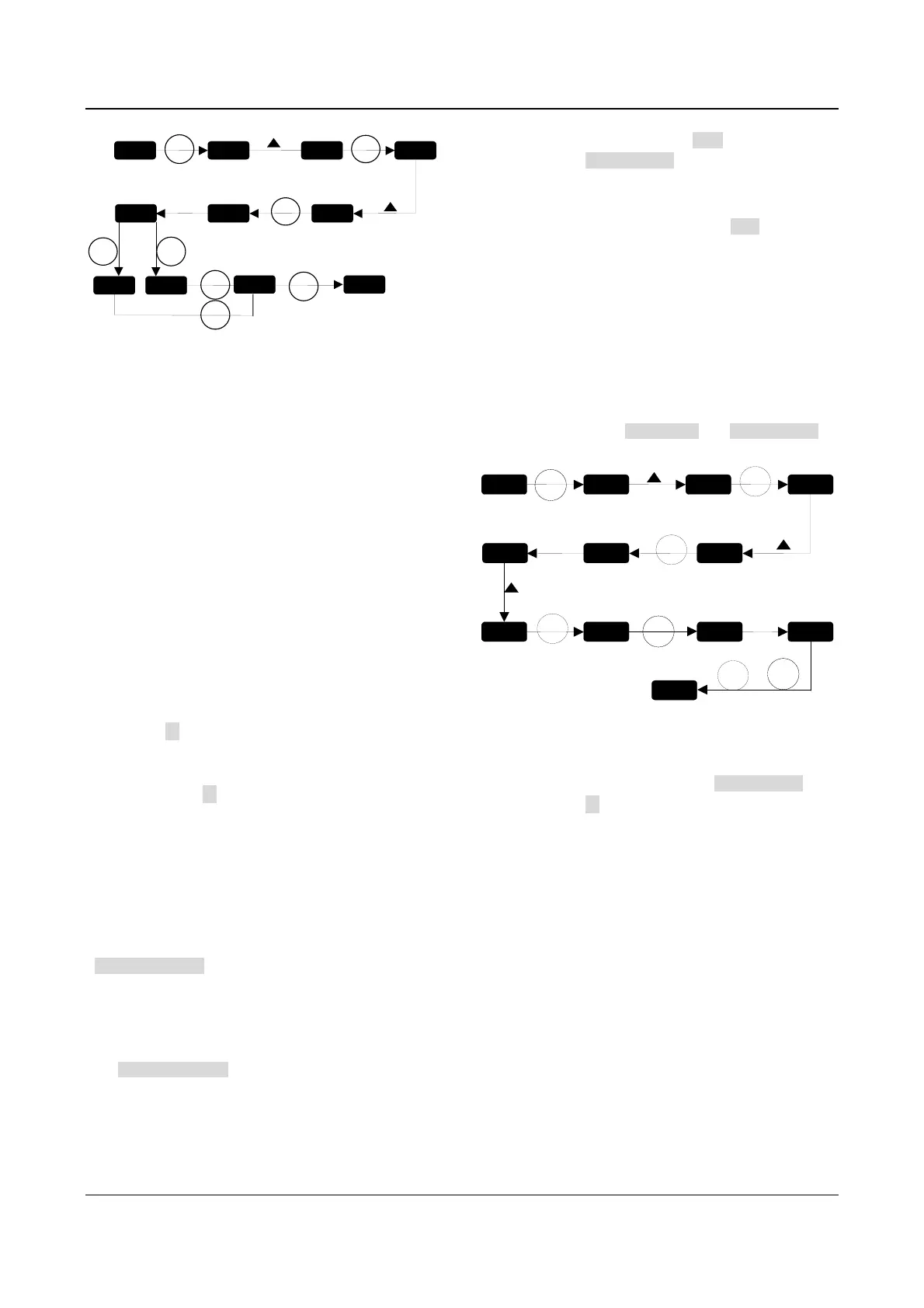

Fig. 4-7 Setting the parameters
In menu level 3, the settings of the parameter cannot be
changed if none digit of the parameter is flashing. The
possible reasons are:
1) The settings of this parameter cannot be changed,
such as the actual detected parameters or recorded
parameters;
2) The settings of this parameter cannot be changed
when the drive is operating, and can only be changed
when the drive stops;
3) The parameters are protected, that is, if FP.01 is set
to 1 or 2, the settings of all the parameters cannot be
changed to avoid wrong operation. If you really want to
change the settings, first set FP.01 to 0.
3. Fine Tuning reference frequency
Example: changing the reference frequency from
50.00Hz to 48.00Hz.
Just press ▼ key directly regardless of the current
display, the present frequency setting will appear and
decrease 0.01Hz. Holding the key will speed up the
decrease. Press ▲ key to increase the frequency by
0.01Hz.
4. Changing the control mode:
Set F9.07 to “x1x” or “x2x”, and control mode is allowed
changing. If F9.07 is set to “x1x”, the control mode can
be changed at STOP state; if set at “x2x”, the control
modes can be changed in both operation and STOP
state.
PANEL/REMOTE key can be used to select the control
mode both in operating status and stopping status.
Press this key and you can switch among panel control
mode, terminal control mode and serial port mode.
When panel control mode is selected, the LED beside
the PANEL/REMOTE will turn on; when terminal control
mode is selected, the LED will turn off; when serial port
control mode is selected, the LED will blink.
5. Starting and Stopping the drive
Under panel control mode, press RUN key to start the
drive and press STOP/RESET key to stop it. To switch
the control mode, please refer to the above paragraph.
6. Jog
When the drive is in STOP state, press JOG key and
hold it, the panel will display start frequency and then
the frequency will ramp to 5Hz. Keep pressing the key,
the drive will jog at 5Hz.
7. Setting user’s password
Enter menu level 3 and set FP.00 at a 4-digit figure as
your password. See the panel operation in Figure 4-7.
8. How to lock the panel:
First set the hundred’s place of F9.07 at a non-zero
figure, and then press MENU/ESC and ENTER/DATA at
the same time.
+
XX
F0
F9
50.00
F9.00
F9.07
0020
0
0
20
0120
F9.08
F9
-
50.00
50.00
EN T ER
DATA
EN T ER
DATA
EN T ER
DATA
MENU
ESC
MENU
ESC
EN T ER
DATA
MENU
ESC
Fig. 4-8 Locking panel
9. How to unlock the panel
At stopping or operating state, press ENTER/DATA key,
and then press ▼ three times. Note that the operation
will not change the value of F9.07.
Note:
Even if the hundred’s place of F9.07 is not set to zero
(panel locking function is enabled), the panel is in
unlocking status every time the drive is powered on.
4.3 Start-up
4.3.1 Checking before Start-up
Please wire the drive according to Section 3.3, and refer
to Fig. 3-7.
To Next Page
