120 Quantum MP User Guide
www.emersonct.com Issue: A4
11.9 Menu 9: Programmable logic, motorized pot and binary sum
The External Trip input (Terminal C4 = Input 6 on the SM-I/O120V
Module) is conditioned using the programmable logic to prevent the
drive from powering up in the External Trip state. This is accomplished
by passing the signal through a 100 ms delay (set by Pr 9.09) before
sending it to Pr 10.32. Pr 9.05 is set to 1 to invert the signal from the SM-
I/O120V module in order to match the drive logic polarity. The default
parameter settings are reflected in the logic diagram and table.

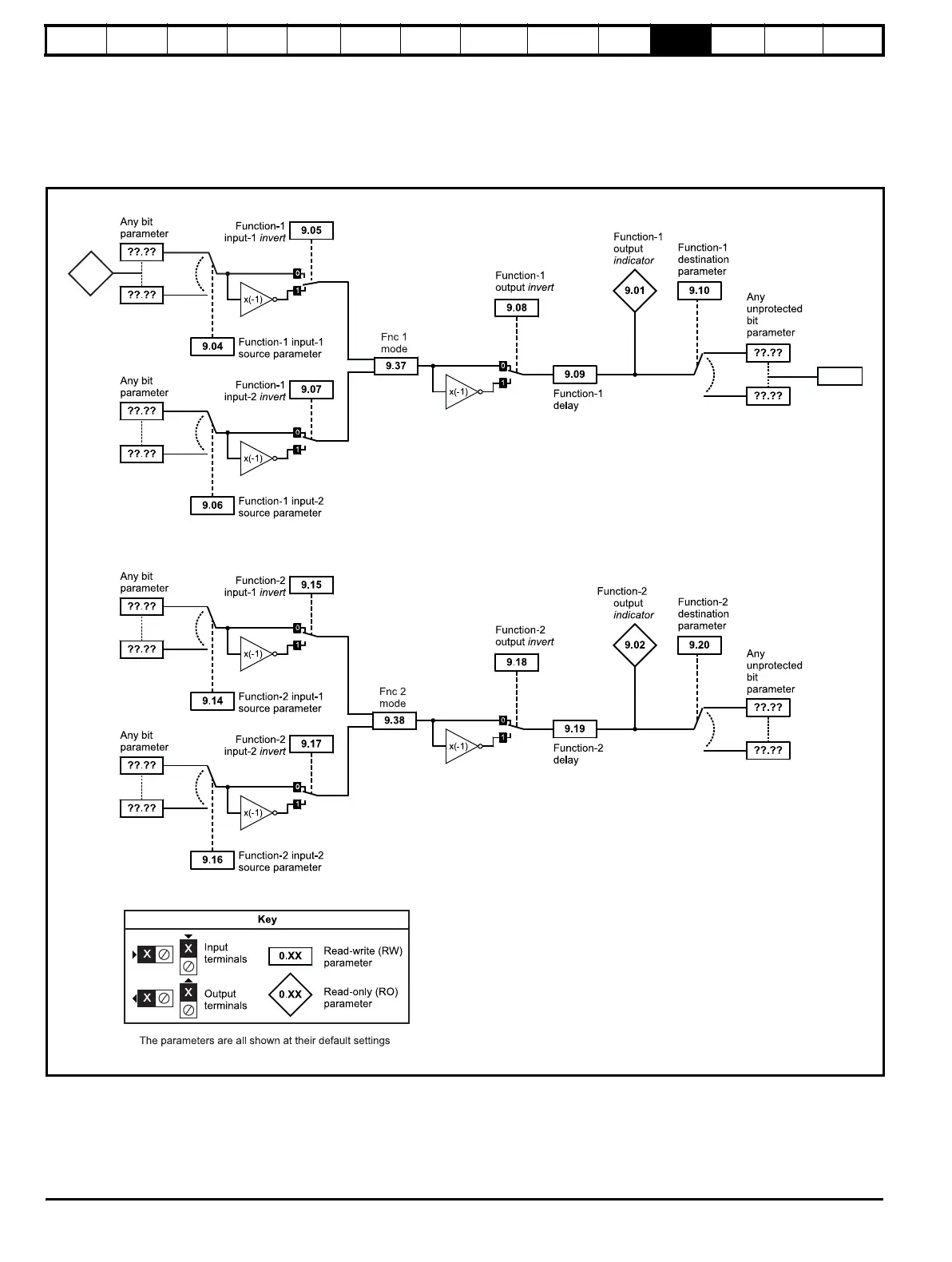

Figure 11-12 Menu 9 logic diagram: Programmable logic
17.06
10.32
External
trip
