Quantum MP User Guide 75
Issue: A4 www.emersonct.com

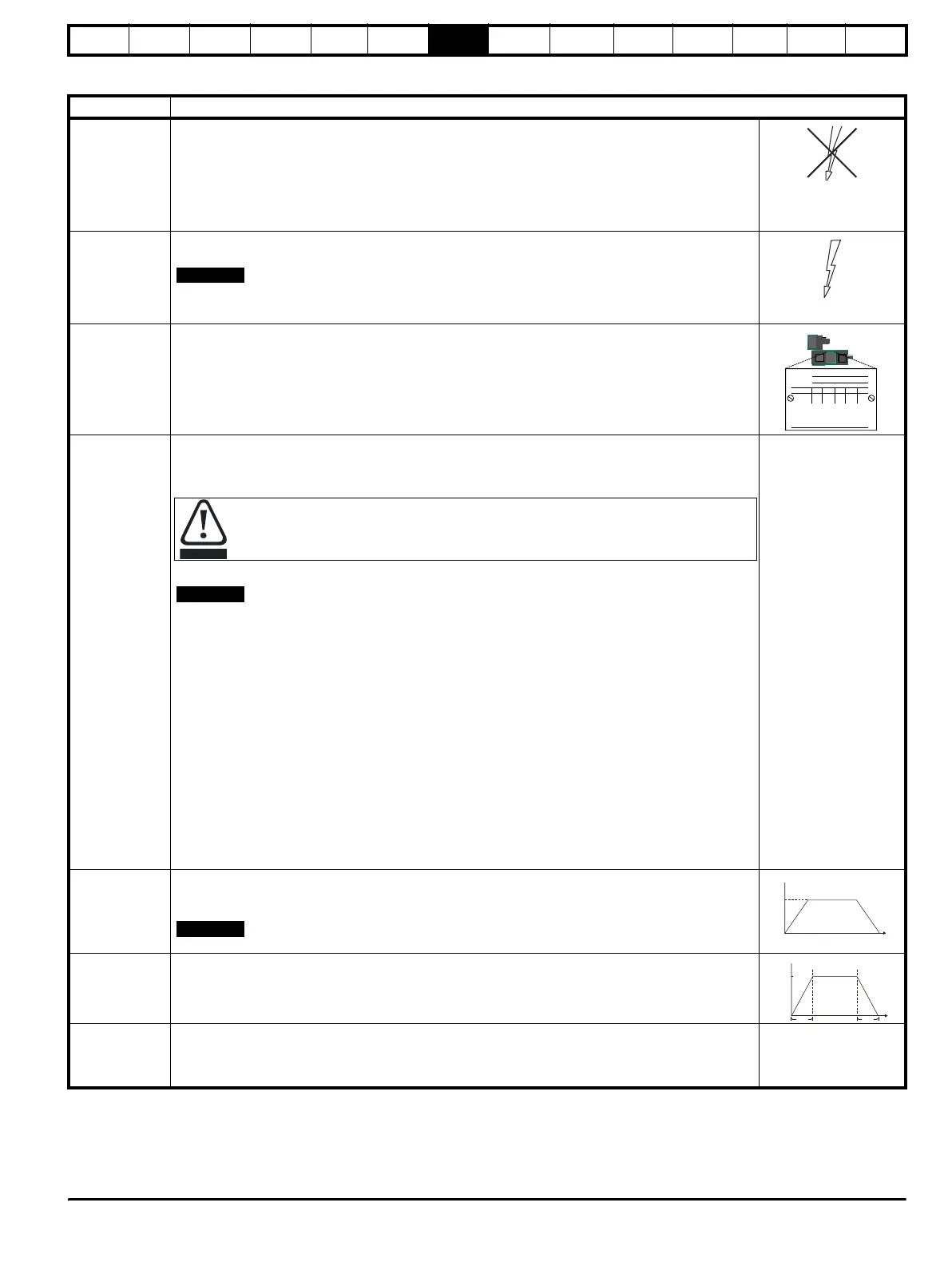

7.2 Quick start commissioning / start-up (from European defaults)
Action Detail
Before power-up
Ensure:
• Drive Enable signal is not given (terminal 31)
• Run signal is not given
• Motor connected
• Tach connected if one is being used
• Encoder connected if one is being used
• 120 Vac control transformer, Configured per Table 4-6.
Power-up the
drive
Ensure:
• Drive displays ‘inh’
The drive will trip ‘th’ (Motor thermistor trip) if no motor thermistor is connected to analog input 3 (terminal 8). If the motor protection
is not connected to the drive, the ‘th’ trip can be disabled by setting Pr
7.15 ( in01, 0.81 ) (analog input 3 mode) to VOLt.
If the drive trips, see Chapter 13 Diagnostics on page 157
Enter motor
nameplate
details
Enter:
• Motor rated voltage in Pr 5.09 (SE06, 0.27) (V)
• Motor rated current in Pr 5.07 (SE07, 0.28) (A)
• Motor rated speed (base speed) in Pr 5.08 (SE08, 0.29) (rpm)
• Field rated current in Pr 5.70 (SE10, 0.31) (A)
• Field rated voltage in Pr 5.73 (SE11, 0.32) (V)
Set motor
feedback
parameters
Incremental encoder basic set-up
Enter:
• Drive encoder type in Pr 3.38 (Fb07, 0.77) = Ab (0): Quadrature encoder
• Encoder power supply in Pr 3.36 (Fb06, 0.76) = 5V (0), 8V (1), 15V (2) or 24V (3)
If output voltage from the encoder is >5V, then the termination resistors must be disabled
Pr 3.39 (Fb08, 0.78) to
0.
• Drive encoder lines per revolution (LPR) in Pr 3.34 (Fb05, 0.75) (set according to encoder)
• Drive encoder termination resistor setting in Pr 3.39 (Fb08, 0.78)
0 = A-A\, B-B\, Z-Z\ termination resistors disabled
1 = A-A\, B-B\, termination resistors enabled, Z-Z\ termination resistors disabled
2 = A-A\, B-B\, Z-Z\ termination resistors enabled
Tachometer set-up
Enter:
• Tachometer voltage rating Pr 3.51 (Fb02, 0.72) (V/1000 rpm)
• Tachometer input mode Pr 3.53 (Fb03, 0.73)
Estimated speed set-up
Enter:
• Speed feedback selector Pr 3.26 (Fb01, Pr 0.71) = Est SPEED (5)
Set maximum
speed
Enter:
• Maximum speed in Pr 1.06 (SE02, 0.23) (rpm)
• Set Pr 5.64 = ON if field weakening is required
For field weakening in Estimated Speed mode please refer to Chapter 8 Optimization on page 78
Set acceleration /
deceleration
rates
Enter:
• Acceleration rate in Pr 2.11 (SE03, 0.24) (time to accelerate to maximum speed)
• Deceleration rate in Pr 2.21 (SE04, 0.25) (time to decelerate from maximum speed)
Enable the field
controller
Field controller set-up
• Select field mode by setting Pr 5.78 = IntrnL (Internal field controller is used), Etrnl (External half control),
E FULL (External in full control).
•Set Pr 5.12 (SE12, 0.33) = ON to enable the field
NOTE
Mot X XXXXXXXXX
No XXXXXXXXXX kg
XXXXXXXXXXXXXXXXXXXXXXXXXX
X
X
XX
XX
XXX
XXX
XX
XX
XXX
XXX
X
X
XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXX
Setting the encoder voltage supply too high for the encoder could result in damage to the feedback
device.
CAUTION
NOTE
NOTE
SE02
t
SE02
SE03
t
SE04
