Installing the IQ Envoy – Part 1

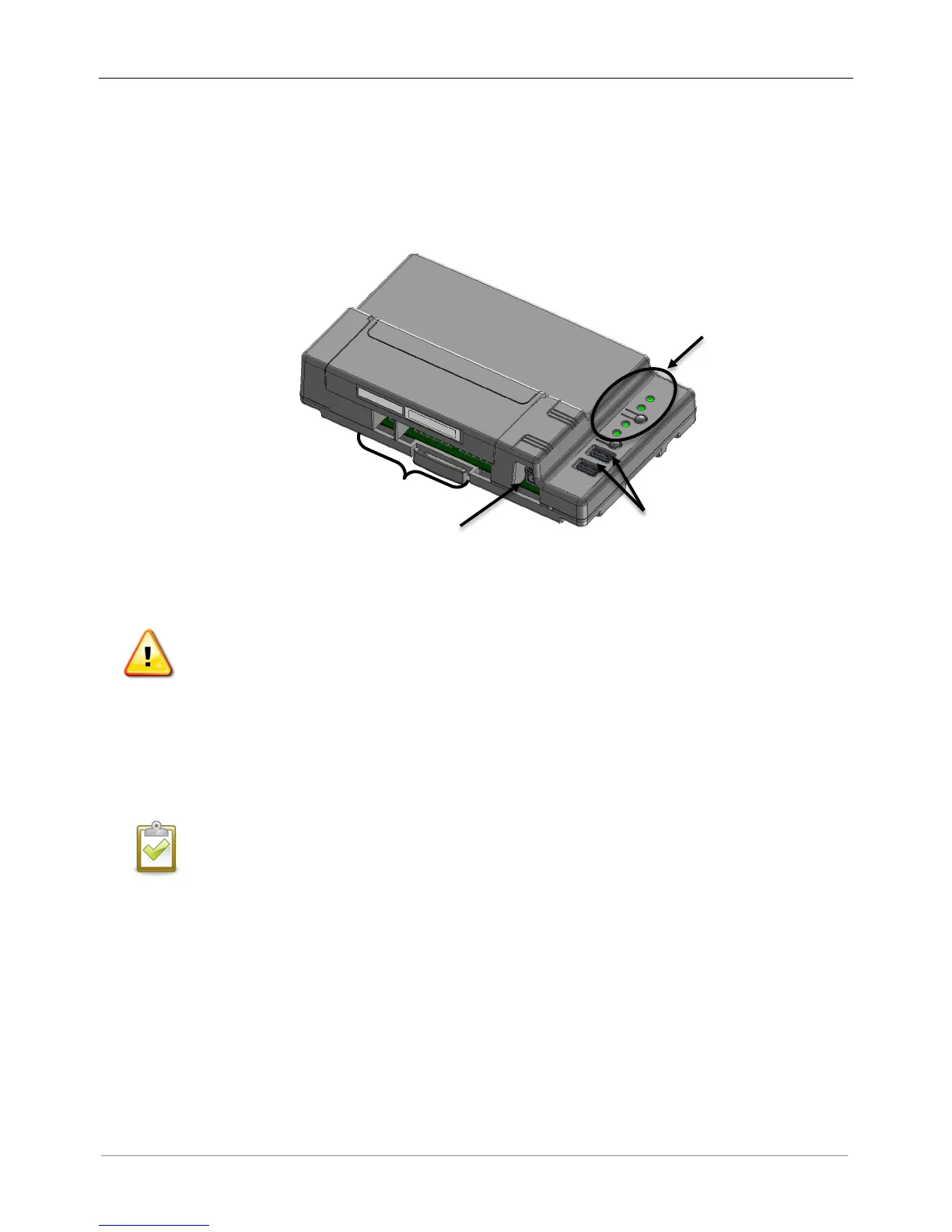

To install the IQ Envoy, perform the following steps and refer to this diagram and the wiring diagram on the
following page:
1. Choose a Location for the IQ Envoy
WARNING: Risk of equipment damage. When installing the IQ Envoy in an enclosure, choose
area for installation where ambient temperature does not exceed 46º C (115º F).
a. Install the IQ Envoy near the main load center or PCC (point of common coupling) and consider the
length of the production CT leads (5 feet) when choosing the location. Do not extend the leads of the
production CT.
b. Install the IQ Envoy in a protected dry space in an NRTL Certified, NEMA type 3R (or better) enclosure
with conduit attachment. Use an appropriately rated enclosure if hard wiring the IQ Envoy indoors.
NOTE: Metallic enclosures may impair Wi-Fi signal strength.
c. Mount the Envoy:
• Mount it horizontally using the included DIN rail.
• To wall-mount, use two #8 screws and a screwdriver. Mount the DIN rail first, then clip the IQ
Envoy to the DIN rail.
