Preparing

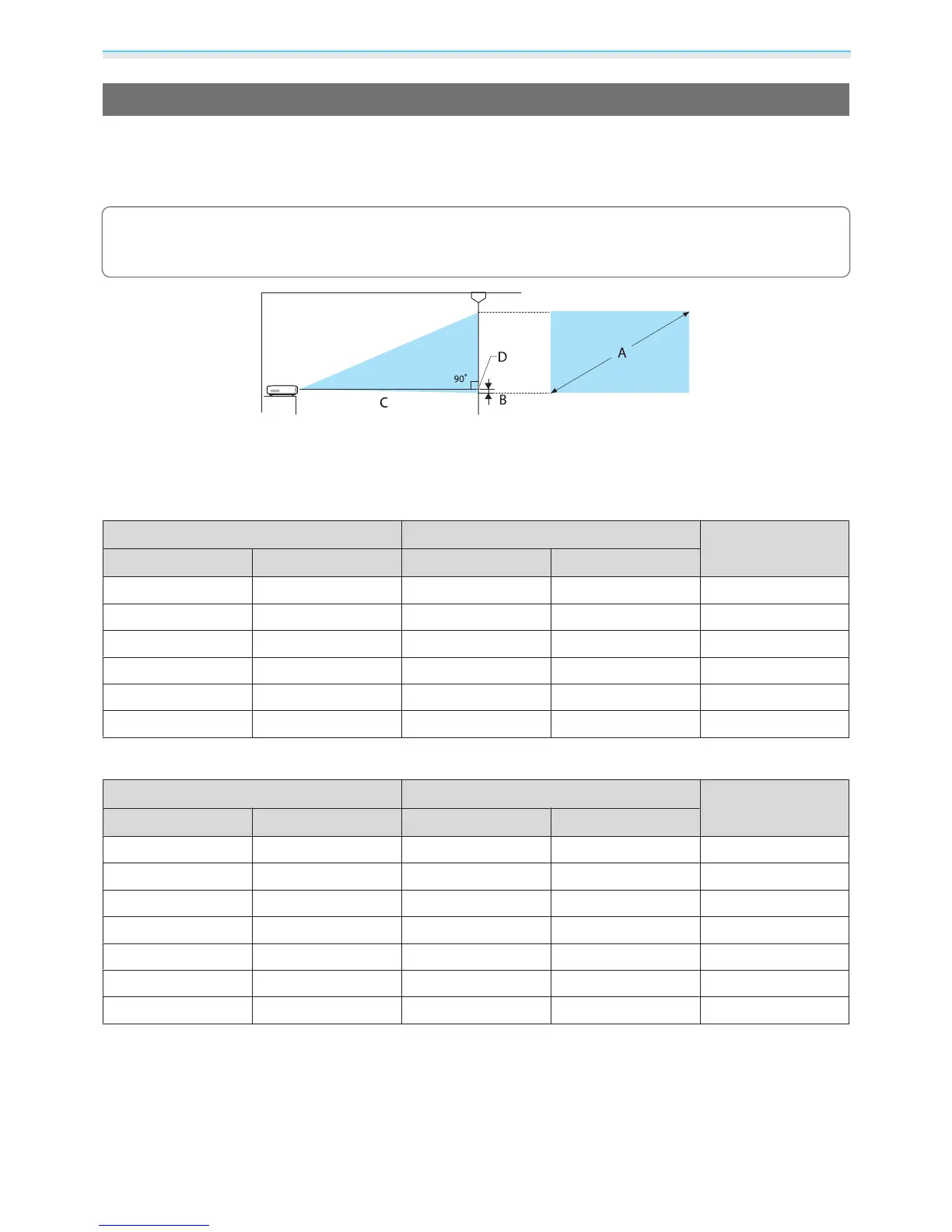

Adjusting the Projection Size

The size of the projection increases as the projector is moved away from the screen.

Use the table below to setup the projector at the optimum position from the screen. The values given here

are for your reference only.

The projected screen becomes smaller when correcting keystone distortion. Increase the projection

distance to fit the projected screen to the screen size.

B Distance from the center of the lens to the base of the projection screen

D The center of the lens

Unit: cm

16:9 Screen Size Projection Distance (C) Distance (B)

A W x H Minimum (Wide) Maximum (Tele)

60" 130 x 75 162 195 -7

80" 180 x 100 217 261 -9

100" 220 x 120 272 327 -11

120" 270 x 150 327 393 -14

150" 330 x 190 410 492 -17

180" 440 x 250 492 592 -20

Unit: cm

4:3 Screen Size Projection Distance (C) Distance (B)

A W x H Minimum (Wide) Maximum (Tele)

40" 81 x 61 132 159 -6

60" 120 x 90 199 240 -8

80" 160 x 120 266 320 -11

100" 200 x 150 334 401 -14

120" 240 x 180 401 482 -17

150" 300 x 230 502 603 -21

200" 410 x 300 671 806 -28

Other manuals for Epson EH-TW5200

Questions and Answers:

Need help?

Do you have a question about the Epson EH-TW5200 and is the answer not in the manual?

Projection Specifications

native resolution	1080p (1920 x 1080)
f-number	1.58 - 1.72
focal length	16.9 - 20.28 mm
zoom ratio	1 - 1.2
throw ratio	1.22 - 1.47 (Wide - Tele)
lamp type	200W UHE
lamp life (normal / eco)	5, 000 hours / 6, 000 hours
screen size (projected distance) - zoom : wide	34” - 328” [0.9 - 9.0 m]
screen size (projected distance) - zoom : tele	34” - 328” [1.08 - 10.8 m]
