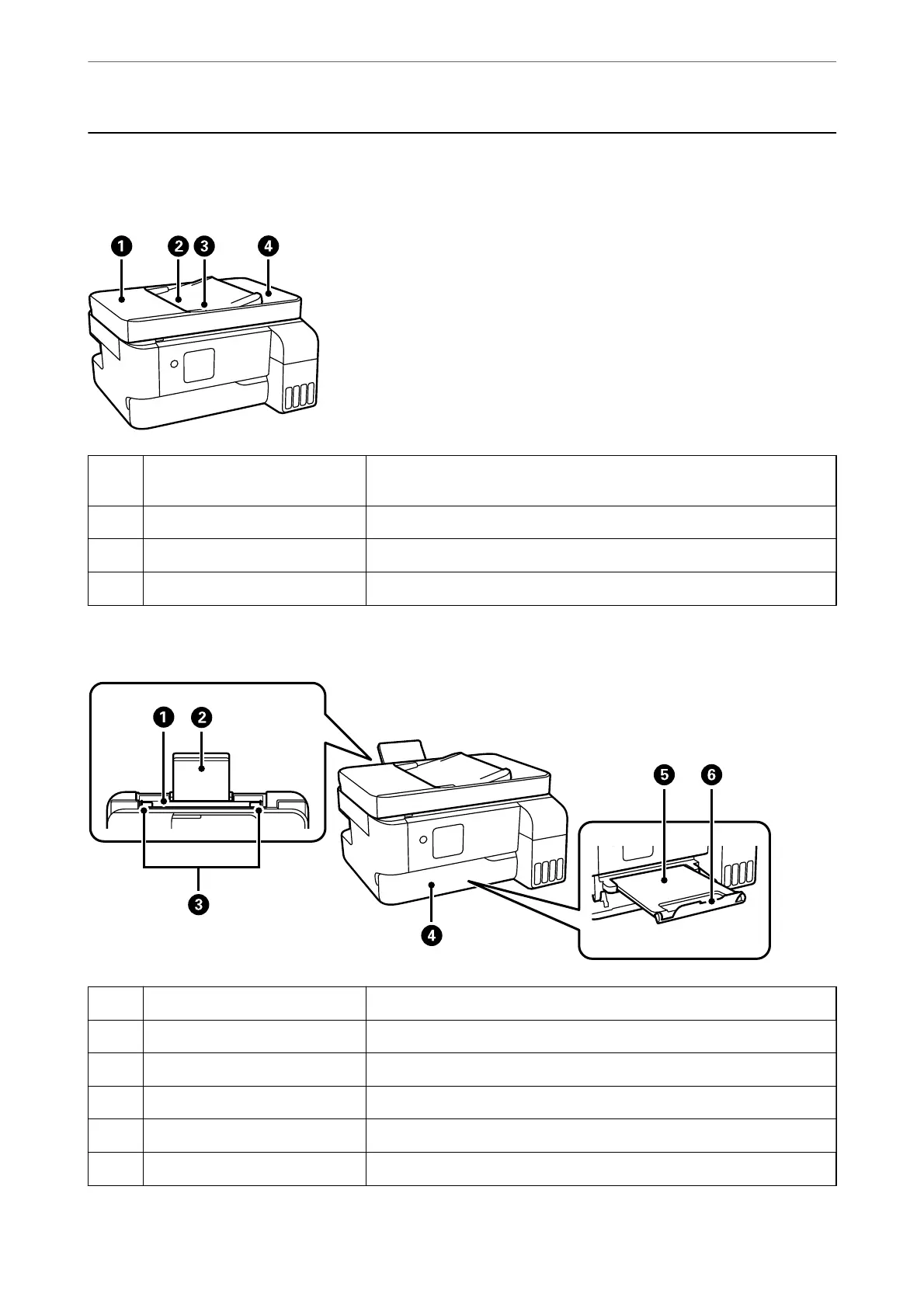

Epson L3560 Series User Manual

Front
Only for ET-4810 Series/L5590 Series
A
ADF (Automatic Document
Feeder) cover
Open when removing jammed originals in the ADF.
B
ADF input tray Feeds originals automatically.
C
ADF edge guide Feeds originals straight into the printer. Slide to the edge of the originals.
D
ADF output tray Holds originals ejected from the ADF.
Only for ET-4810 Series/L5590 Series
A
Rear paper feeder Loads paper.
B
Paper support Supports loaded paper.
C
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
D
Output tray cover Opens automatically when printing starts.
E
Output tray Holds the ejected paper. Pull out manually and push it back in to store.
F
Stopper Position the stopper to prevent printouts from falling from the output tray.
Part Names and Functions > Front
19
