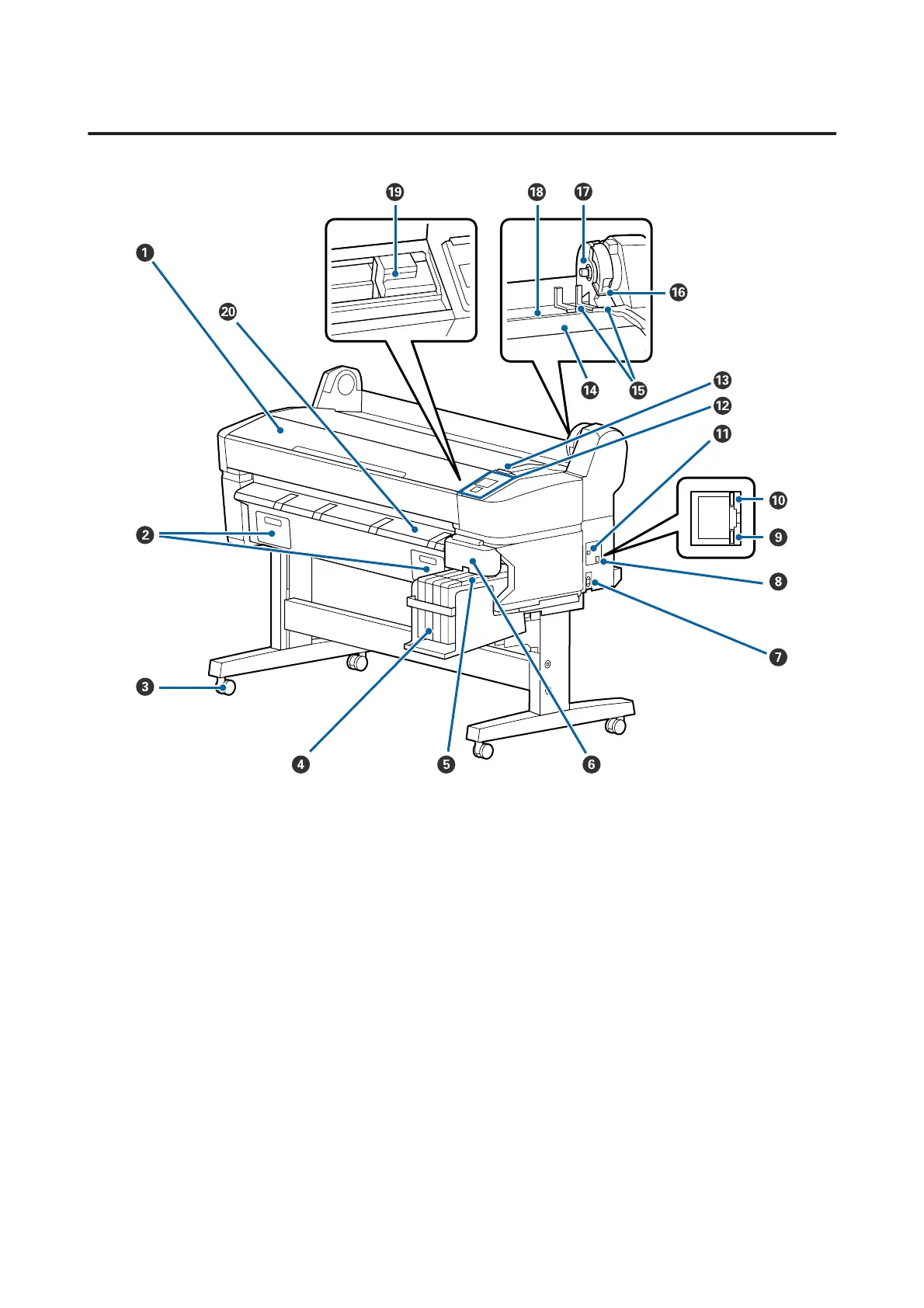

Front (SC-F6000 Series)
A Printer cover
Open this cover when cleaning the printer or clearing jams.
B Maintenance box covers
Open these covers when replacing the Maintenance Box. Make sure they are attached before using the product.
U “Replacing Maintenance Boxes” on page 66
C Casters
There are two casters on each leg. The casters are normally kept locked once the printer is in place.
D Ink tank
Holds ink used for printing.
E Slider
U “Slider” on page 14
F Side cover
Open the side cover to remove the slider for chip unit replacement. Always close the side cover securely after
inserting the slider.
SC-F6200 Series/SC-F6000 Series User's Guide
Introduction
11
