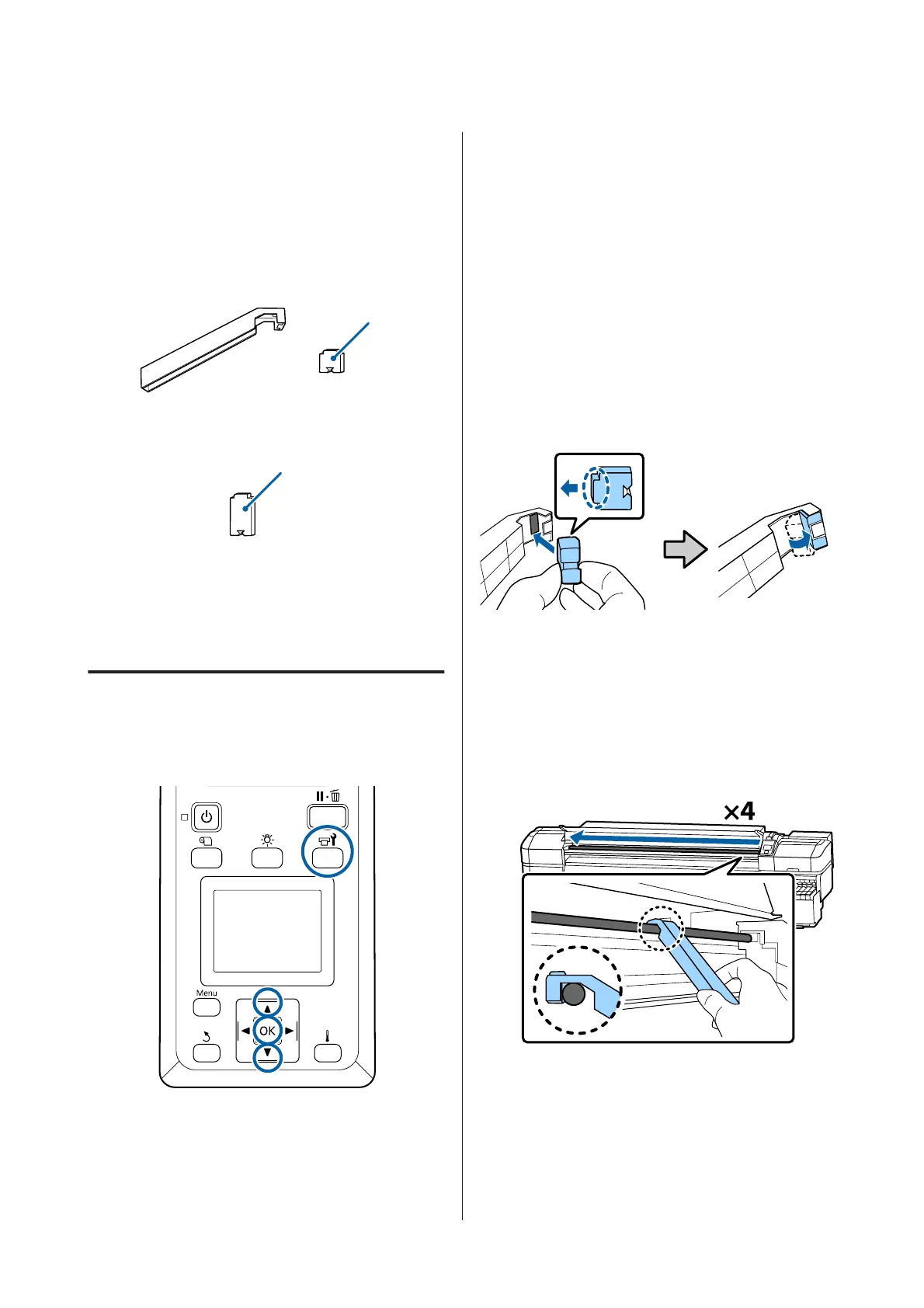

There are two carriage rods, rod A and rod B. Apply
grease to both rods using the grease kit supplied with
the printer.
The grease application tool varies depending on the
rod as shown below.
Carriage rod A
A
Carriage rod B
B
Before starting this procedure, be sure to read the
following:
U “Precautions regarding maintenance” on page 59
Greasing procedure for carriage
rod A
Buttons that are used in the following settings
A
After confirming that the printer is ready, press
the # button.
The Maintenance menu will be displayed.
B
Use the u button to select Other maintenance,
and then press the Z button.
C
Use the u button to select Grease Carriage
Rod, and then press the Z button.
When Grease kit is needed. Continue? is
displayed. Make sure that you have a grease kit
ready to use.
D
Select Yes, and then press the Z button.
E
Insert the tab of the pad A (new) firmly into the
rectangular slot on the grease tool and fit the
pad to the tool as shown.
F
Open the front cover.
G
Hold the pad of the tool firmly against the back
of the carriage rod A, and then slide it smoothly
from the right end to the left end to wipe off
stains on the rod.
Repeat this action four times.
SC-F9300 Series User's Guide
Maintenance
84
To Next Page
