Camera
overview

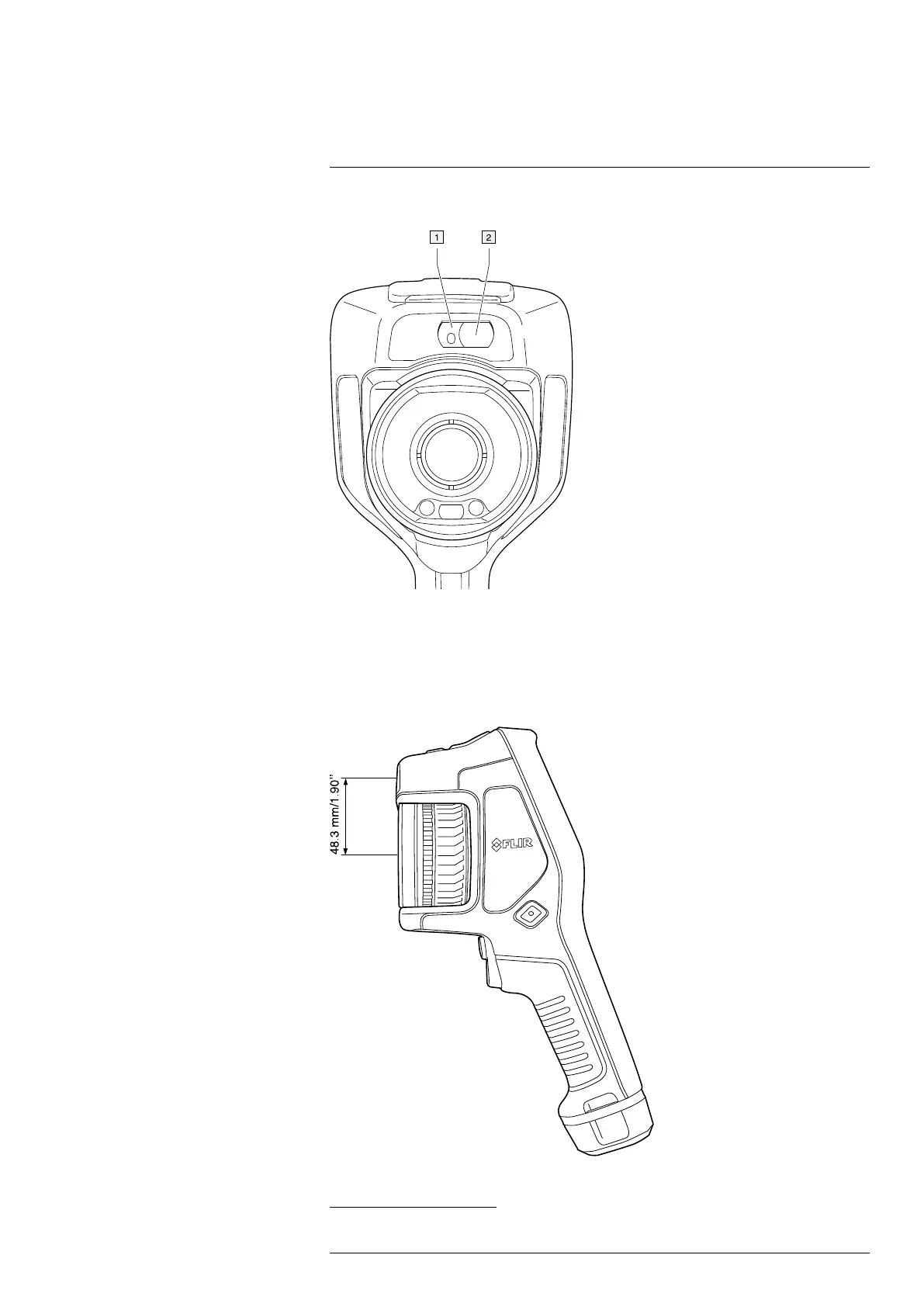

6
6.3.1
Laser
transmitter
and
receiver
1.
Laser
transmitter.
2.
Laser
receiver
.
2
6.3.2
Difference
in
position
This
figure
shows
the
difference
in
position
between
the
laser
transmitter
and
the
optical
center
of
the
infrared
lens.
#T810587;
r.
AA/74078/74713;
en-US
12
2.
This
item
is
dependent
on
the
camera
model.
18
20
