Camera parts
14
5. button (On/off).
Function:
• To turn on the camera, push and release the button.
• To turn off the camera, push and hold the button until the progress bar that is dis-
played on the screen reaches the end.
6. Joystick.
Function:
• To navigate in menus and dialog boxes, move the joystick up/down/left/right.
• To change values, move the joystick up/down/left/right.
• To select or confirm choices, push the joystick.
7.
button (Menu/Back).

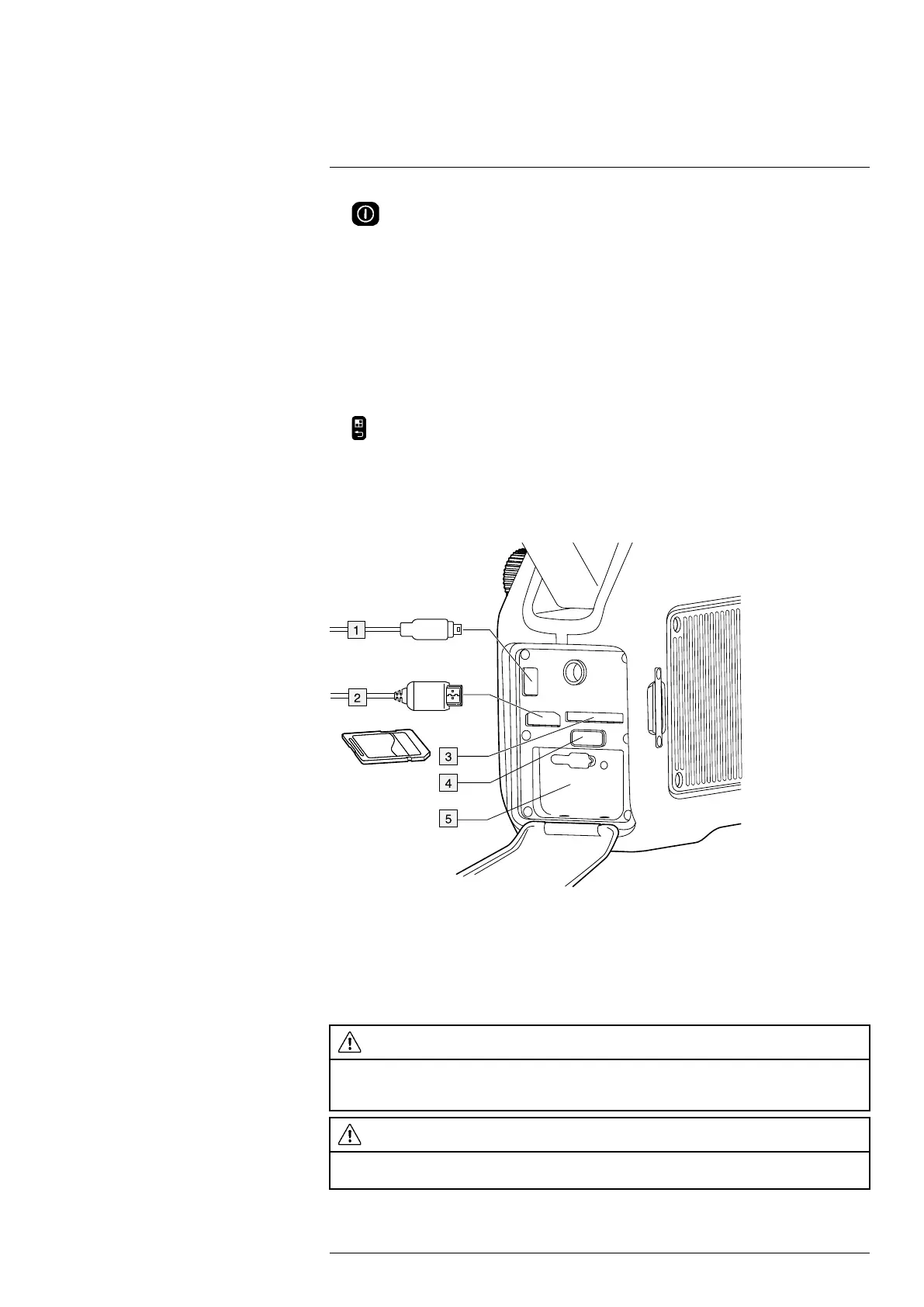

14.4 View from the rear with open cover
14.4.1 Figure
14.4.2 Explanation
1. USB Mini-B cable (to connect the camera to a computer).
2. HDMI cable (for live video output).
3. Memory card slot.
4. Battery release button.
5. Battery.
WARNING
Do not open the cover for the connector and battery compartment while the camera is in a classified
(hazardous) area. An explosion can occur. This can cause injury or death to persons and damage to
the equipment.
CAUTION
Make sure that you do not use a torque value that is more than 80 Ncm on the Torx T20 screw. Damage
to the camera can occur if you do not obey this.
#T810169; r. AN/42241/42268; en-US
37
