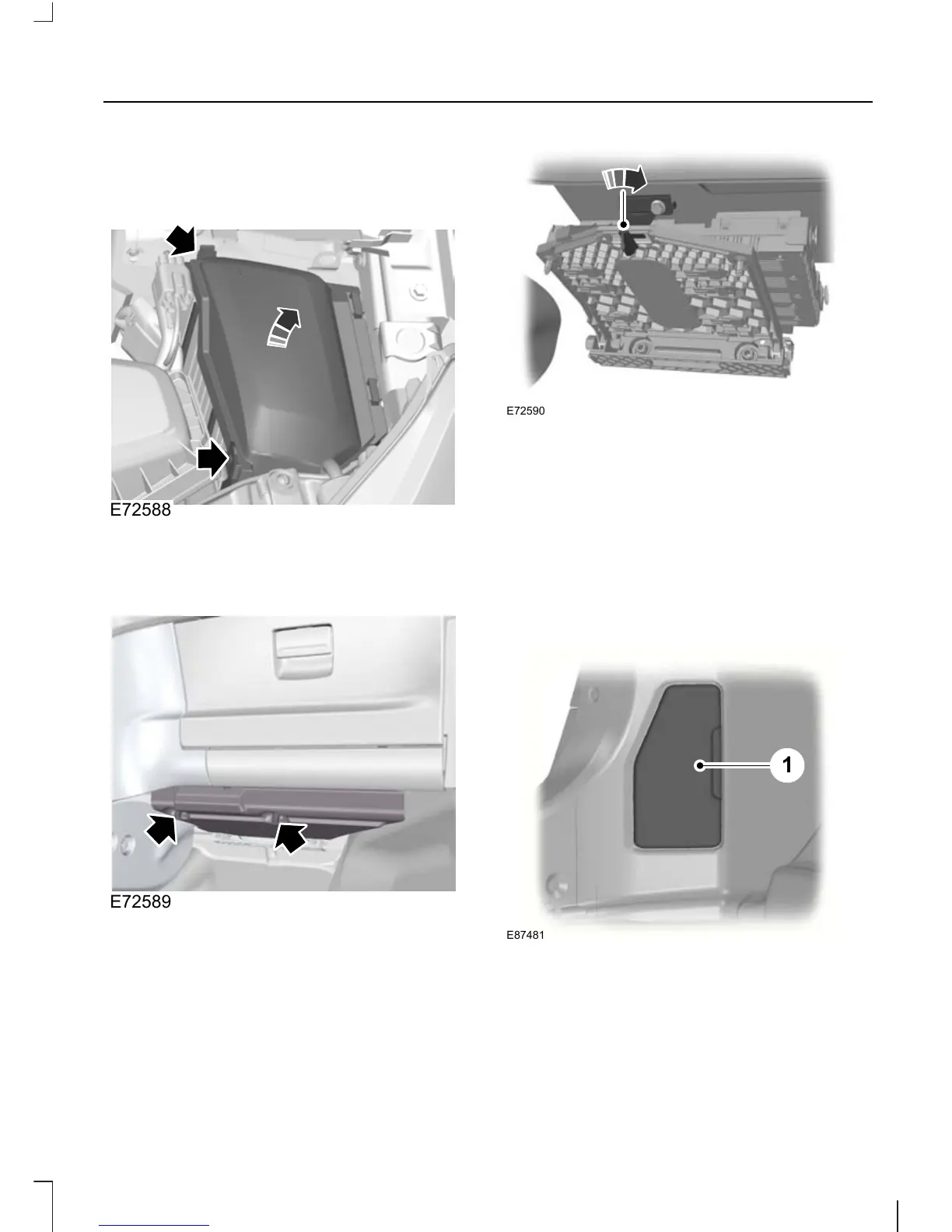

FUSE BOX LOCATIONS

Engine compartment fuse box

E72588

Central fuse box

All vehicles

E72589

1. Pinch the retaining clips to release the

cover.

E72590

2. Remove the cover.

3. Turn the knob through 90 degrees and

release the fuse box from the retaining

bracket.

4. Lower the fuse box cover and pull it

towards you.

5. Install in the reverse order.

Rear fuse box - 4-door and 5-door

E87481

1. Remove the cover.

193
