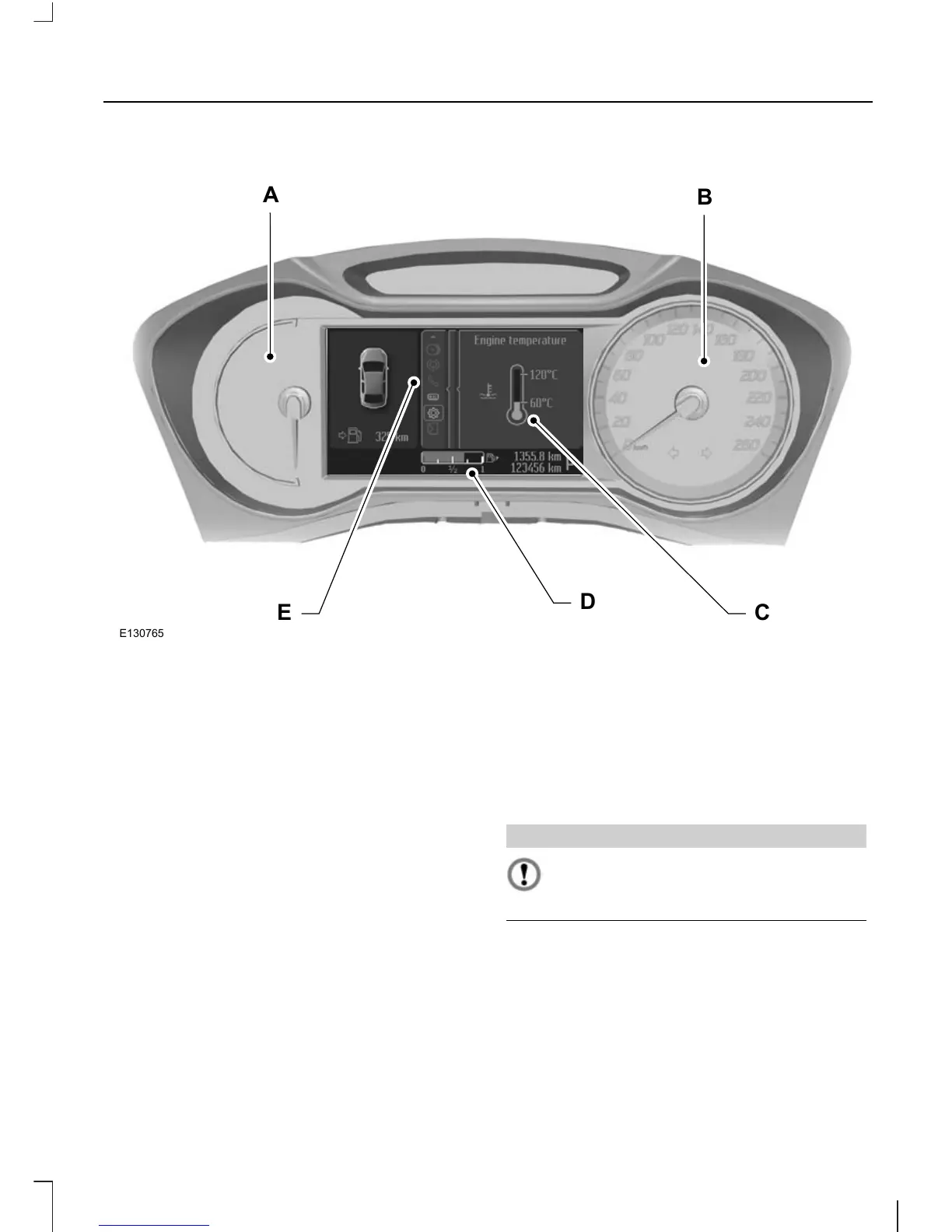

TachometerA
SpeedometerB
Engine coolant temperature gaugeC
Fuel gaugeD
Message centre. See Information Displays (page 84).E
Engine coolant temperature gauge
Note: On type 3 this gauge is shown within
the message centre and will not be
displayed unless required. See Information
Displays (page 84).
Shows the temperature of the engine
coolant. At normal operating temperature,
the indicator will remain in the centre
section.
CAUTION
Do not restart the engine until the
cause of overheating has been
resolved.
If the indicator moves towards 120°C, the
engine is overheating. Stop the engine,
switch the ignition off and determine the
cause once the engine has cooled down.
See Engine Coolant Check (page 219).
79
Instrument Cluster
