Ford MONDEO - Bulb Specification Chart

To Next Page

To Previous Page

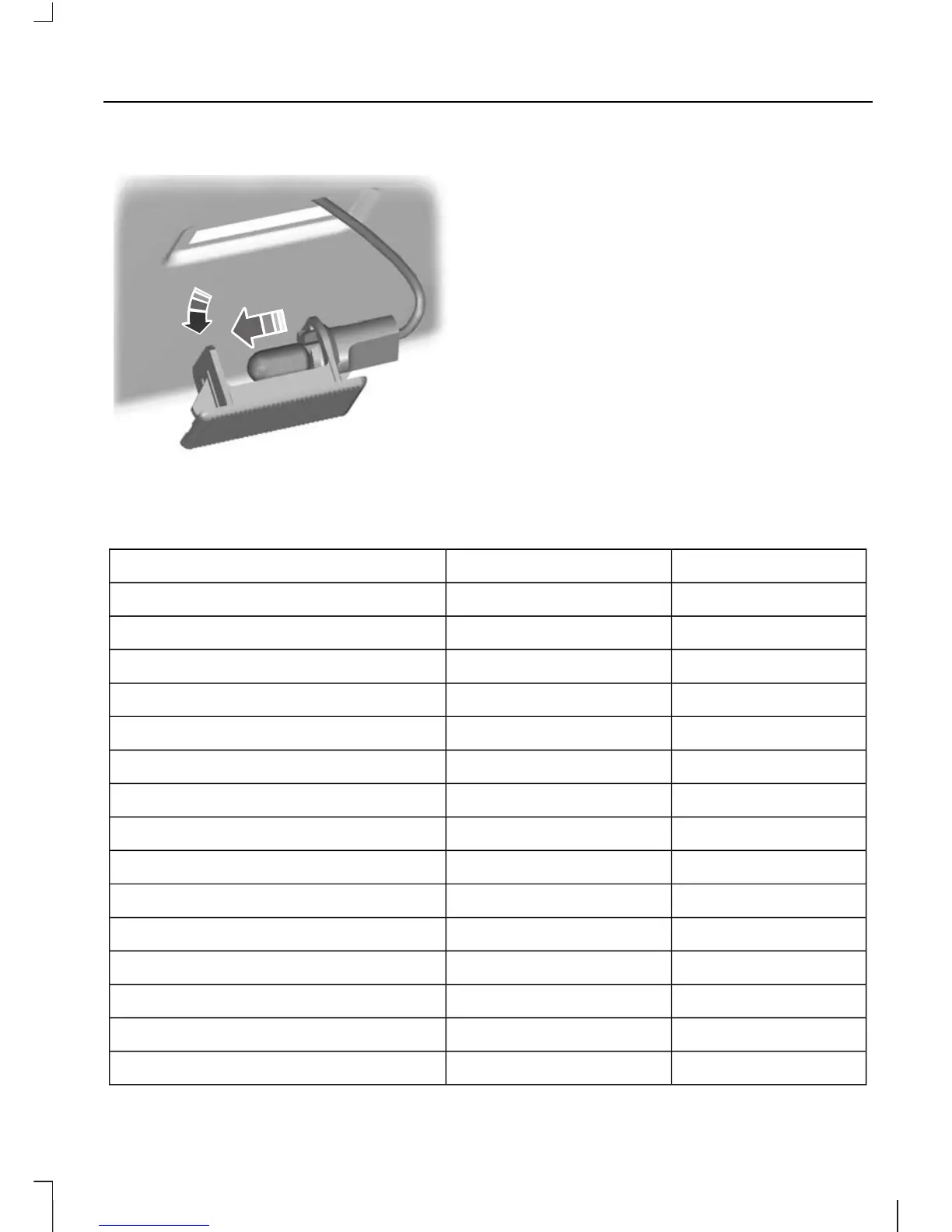

Luggage compartment lamp

E72784

1. Carefully prise out the lamp.

2. Remove the bulb.

BULB SPECIFICATION CHART

Power (watt)SpecificationLamp

21PY21WFront direction indicator

55H1Headlamp main beam

55H7Headlamp dipped beam

55H1Cornering lamp

5W5WSide repeater

5W5WApproach lamp

35H8Front fog lamp

5W5WSide lamp

21PY21WRear direction indicator

21H21WRear fog lamp

21P21WReversing lamp

5W5WNumber plate lamp

10FestoonInterior lamp

5BA9sReading lamp

5W5WVanity mirror lamp
