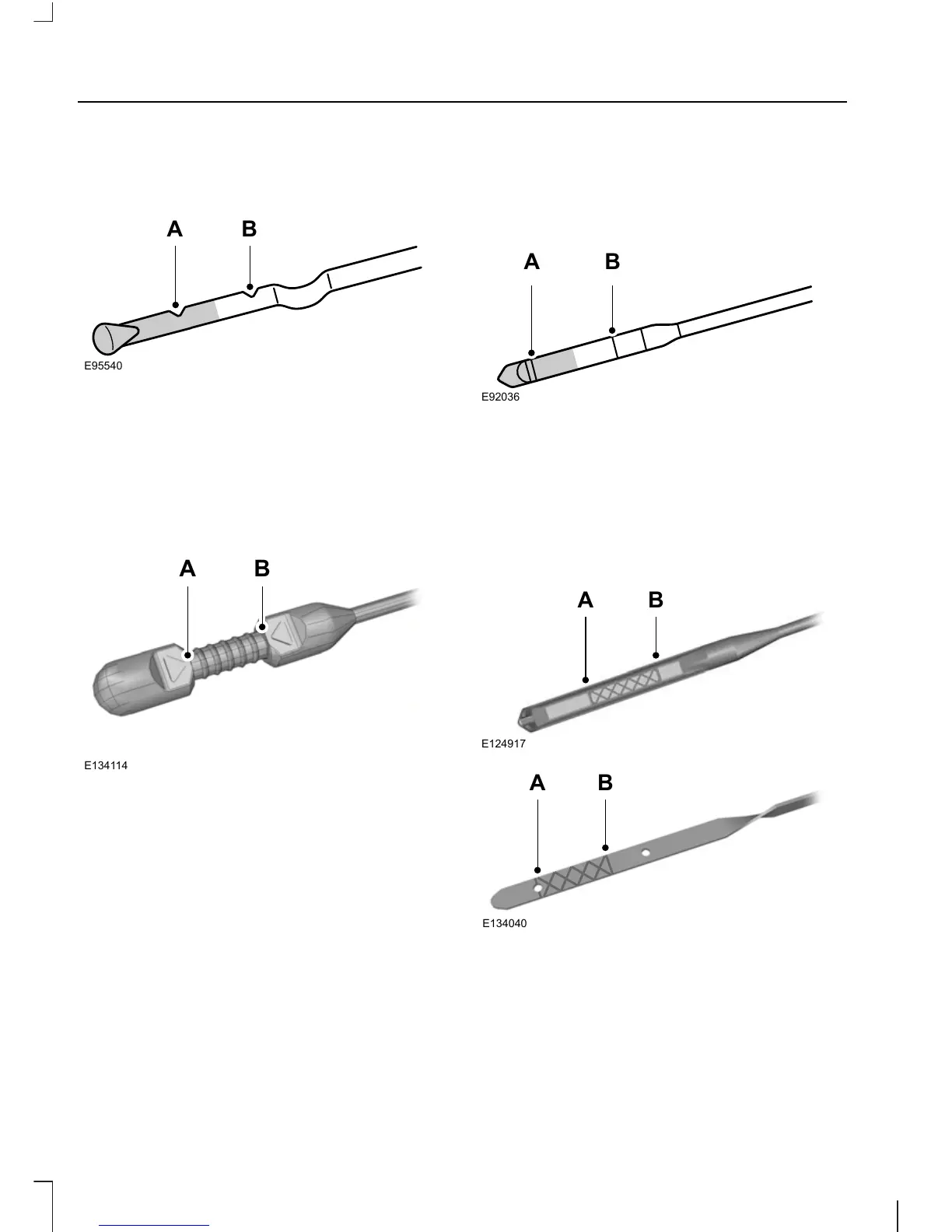

ENGINE OIL DIPSTICK - 1.6L

DURATEC-16V TI-VCT (SIGMA)

E95540

MINA

MAXB

ENGINE OIL DIPSTICK - 1.6L

ECOBOOST SCTI (SIGMA)

E134114

MINA

MAXB

ENGINE OIL DIPSTICK - 2.0L

DURATEC-HE (MI4)/2.3L

DURATEC-HE (MI4)

E92036

A B

MINA

MAXB

ENGINE OIL DIPSTICK - 2.0L

ECOBOOST SCTI (MI4)

E124917

A B

E134040

MINA

MAXB
