Page 6
Fresenius 2008
®
K Calibration Procedures
P/N 507296 Rev D
1.3 FRONT PANEL CONTROLS
The front panel consists of two areas, the touch screen and the control panel. The
touch screen is the area under the glass in the center of the front panel. The
control panel surrounds the touch screen and it contains the membrane keys. The
following illustrates these areas:

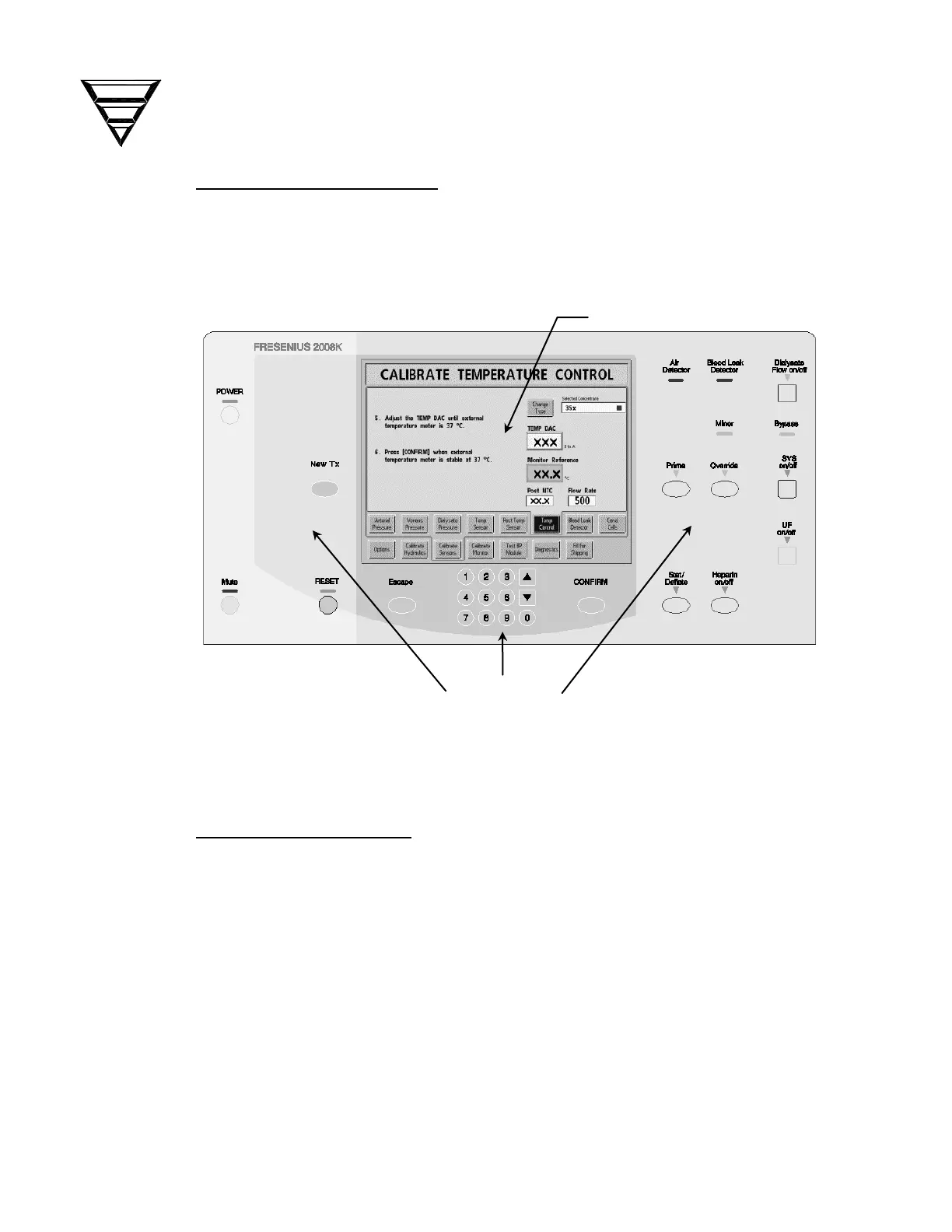

Figure 2 - 2008K Front Panel
Control Panel Operation
Throughout the calibration procedures, whenever a control panel key is to be
pressed, the appropriate key name is surrounded by square brackets as in the
following example:
Press the [CONFIRM] key and the screen will change.
In this example, the CONFIRM key on the control panel should be pressed.
