Page 64
Fresenius 2008
®
K Calibration Procedures
P/N 507296 Rev D
2.4.2 VOLTAGE DETECTION CALIBRATION
From the Calibrate Monitor screen, select the Voltage Detection screen button.

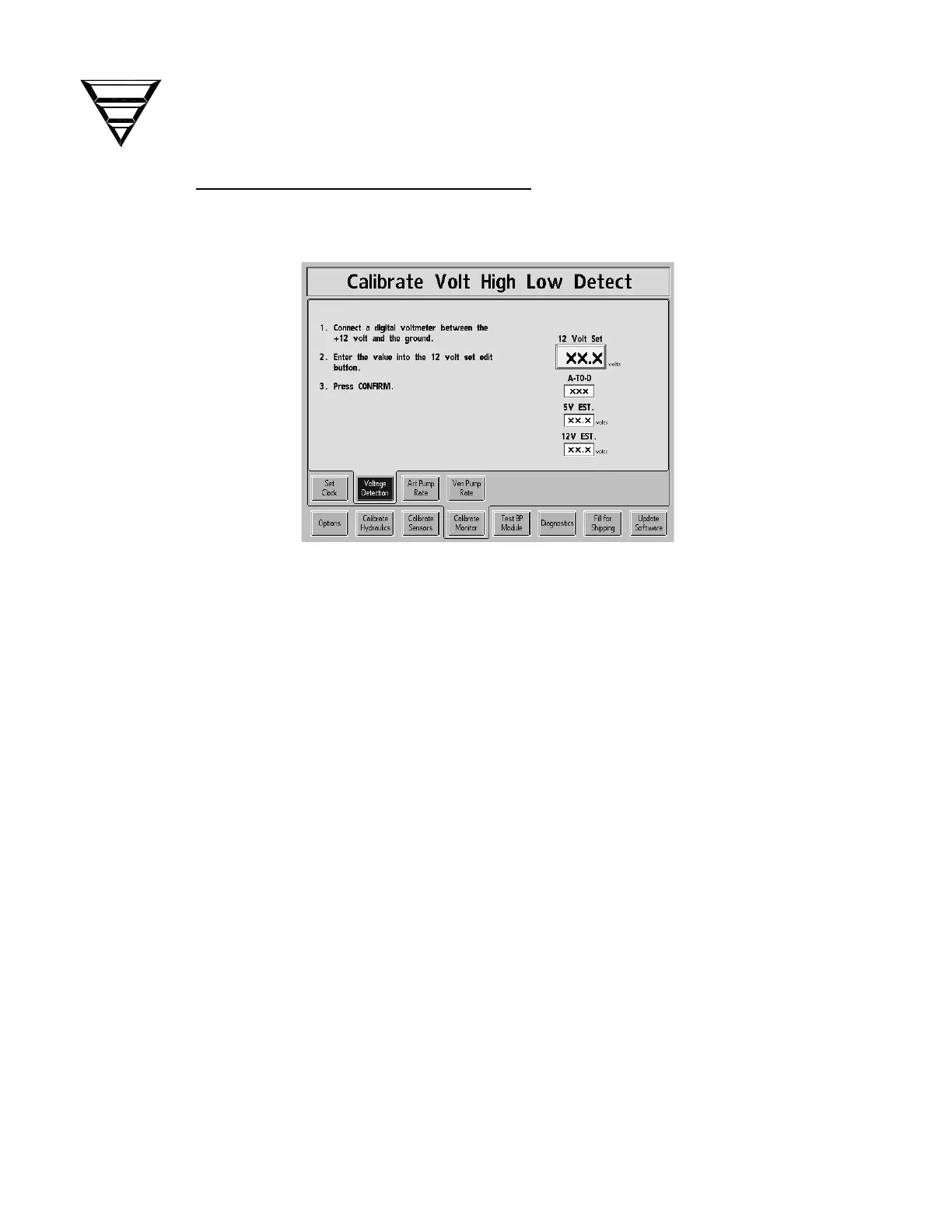

The screen will change to the following:
1. Open the monitor unit and connect a Digital Voltmeter between the
+12 volt test and the ground test points shown in Figure 7.
2. Select the 12 volt set data button.
Set the 12 volt set value to the voltage shown on the digital voltmeter, then
press the [CONFIRM] key.
3. Press the [CONFIRM] key again and the screen will change.
