Fresenius 2008
®
K Calibration Procedures
P/N 507296 Rev D
2.2.2 FLOW PRESSURE CALIBRATION
From the Calibrate Hydraulics screen, select the Flow Pressure screen button.

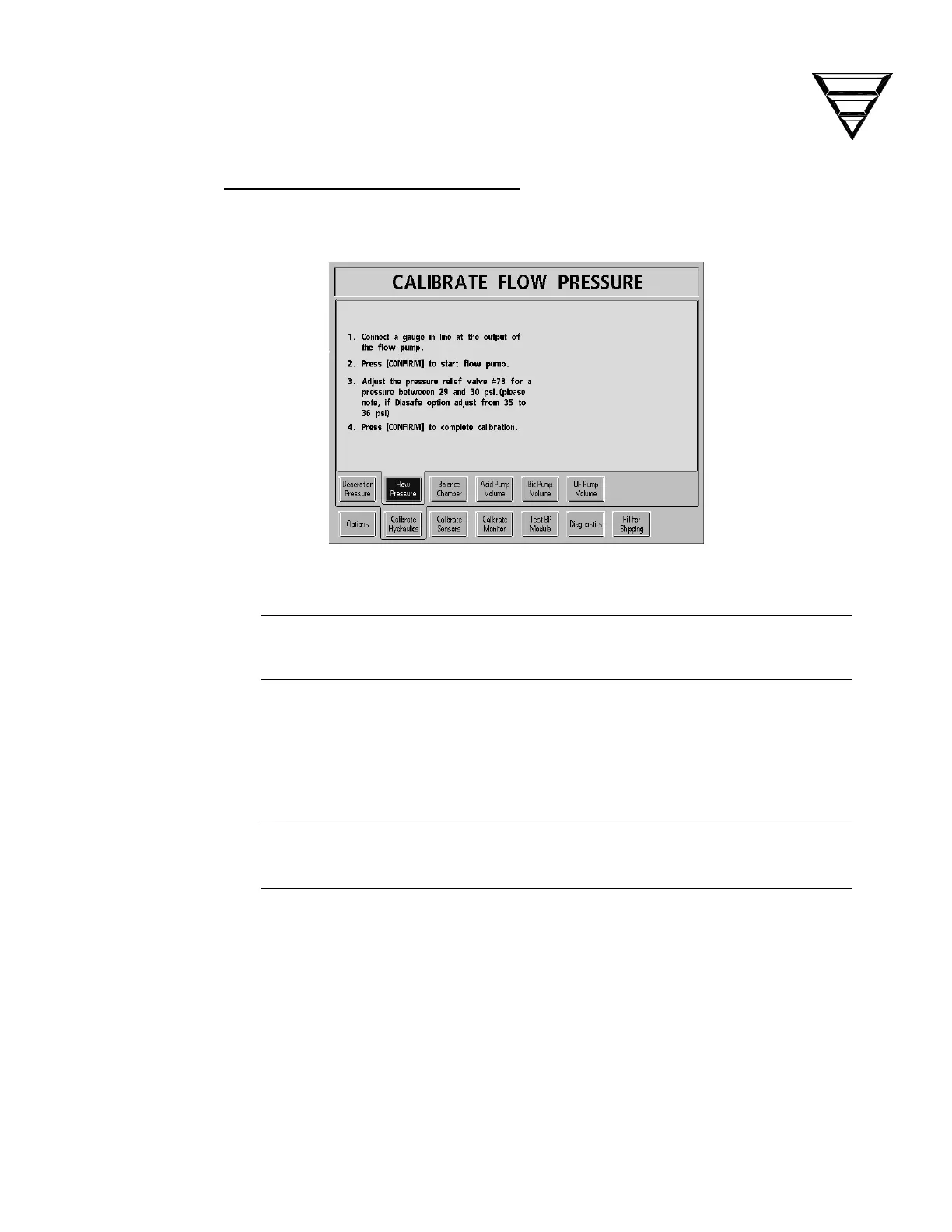

The screen will change to the following:
1. Connect a gauge in line at the output of the flow pump (See Figure 1, pg. 5).
Note: The output side of the flow pump is the side with the white
reinforced jacket over the line. The input side has clear plastic line
2. Press the [CONFIRM] key to start the flow pump.
3. Adjust pressure relief valve #78 (See Figure 1, pg. 5) for a pressure
between 29 and 30 psi indicated on the gauge.
Note: If a DIASAFE
filter system is installed adjust pressure relief
valve #78 for a pressure between 35 and 36 psi.
4. Press the [CONFIRM] key to complete the calibration and return to the
Calibrate Hydraulics screen.
Remove the gauge from the flow pump output.
