2 Product Overview
54
Control Panel

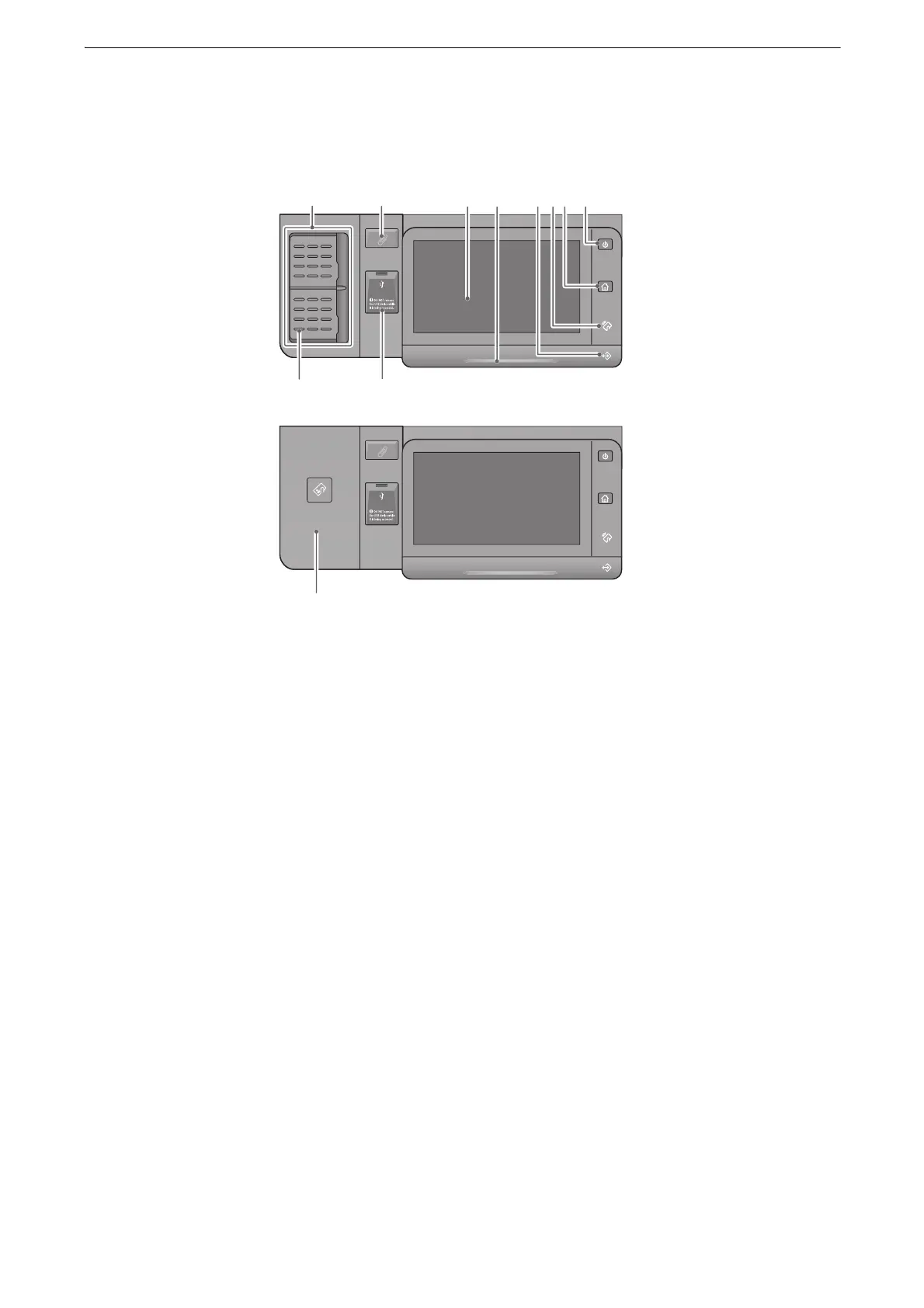

The following describes the names and functions of components on the control panel.
1 Touch screen
Displays messages required for operation, and buttons for various features. You can directly
touch the touch screen to instruct operations and set features.
2 Status LED
Briefly glows blue when an operation is accepted or when a process is completed. The LED
flashes amber if a system error or a problem with the device occurs, including paper jams
and running out of paper or toner.
3Data LED
Blinks when the device is sending or receiving data to or from a client.
This indicator lights up when data is stored in the device memory, or when faxes are stored
in a folder.
4NFC area
Hold your NFC-enabled mobile device near this area. The NFC feature must be enabled on
the device to communicate with each other.
5 Home button
Press this button to display the Home screen.
6 Power button
Press this button to turn the device on or off. You can use the button to wake the device or
put it to the Power Saver mode. The button flashes slowly when the device is in the Power
Saver mode.
z
Refer to "Power Source" (P.44) and "Power Saver Mode" (P.48).
