Fuji Xerox Color C70 User Manual

2 Product Overview
48
Product Overview
2

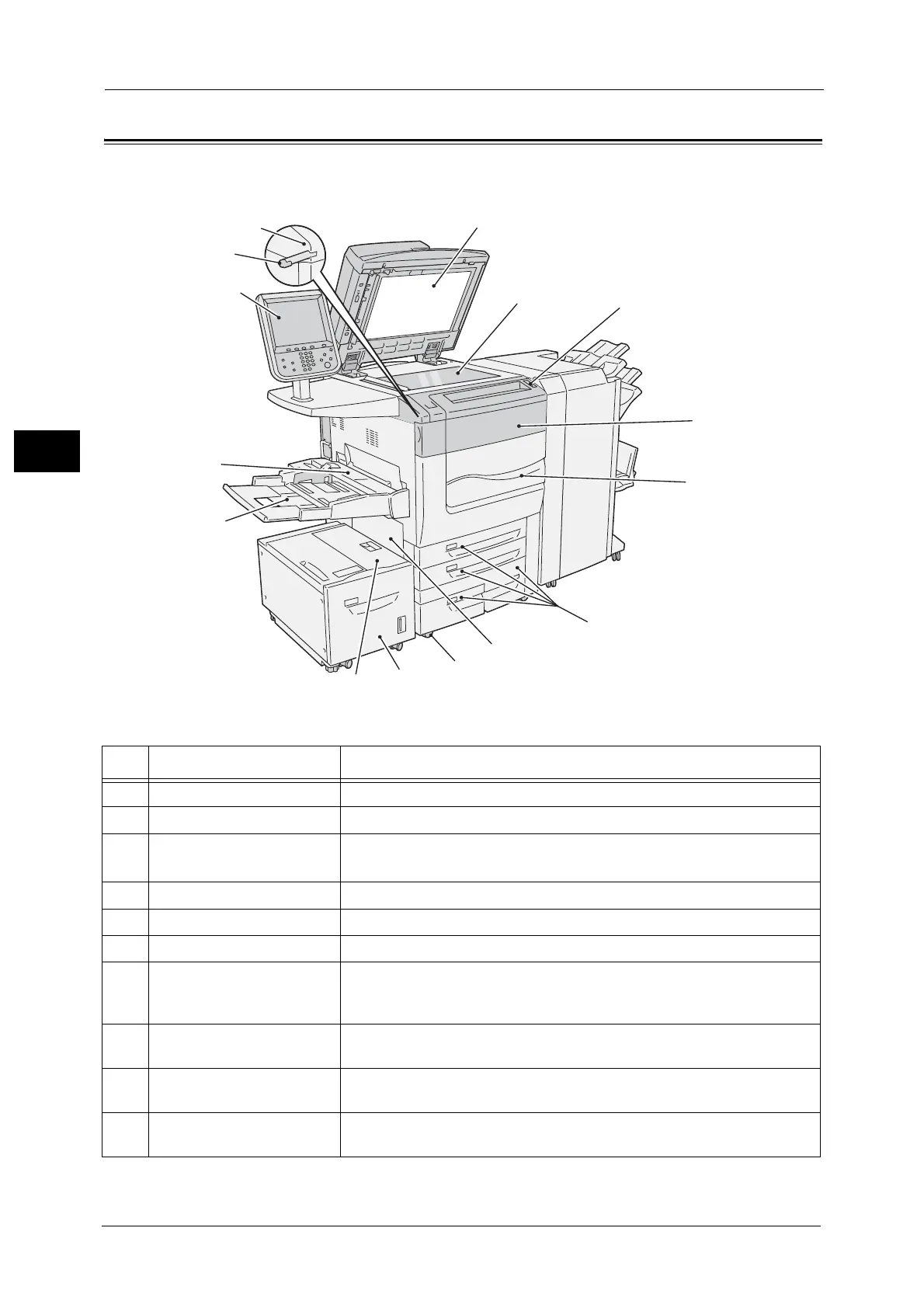

Machine Components
 Main unit and A4 High Capacity Feeder (optional)
This view varies
depending on
the model.
14
15
1
3
4
5
6
7
8
9
10
11
12
2
13
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Power switch Switches the power of the machine on and off.
For more information, refer to "Power Source" (P.57).
4 Machine front toner cover Open this cover to replace toner cartridges.
5 Machine front door Open this door to clear paper jams or replace consumables..
6 Tray 1, 2, 3, 4 Load paper here.
7 Bottom left door Open this door to clear paper jams.
If Tray 6 (A4 High Capacity Feeder) is installed in the machine, move Tray 6
(A4 High Capacity Feeder) to the left first.
8 Locking casters Casters which prevents the machine from moving. Lock these casters after
moving the machine to its installation site.
9 Tray 6 (A4 High Capacity
Feeder)
Load paper here.
10 Tray 6 top cover Move Tray 6 (A4 High Capacity Feeder) to the left and then open this top
cover to clear paper jams.
