SERVICE PARTS INFORMATION 11
Resistor, Cement

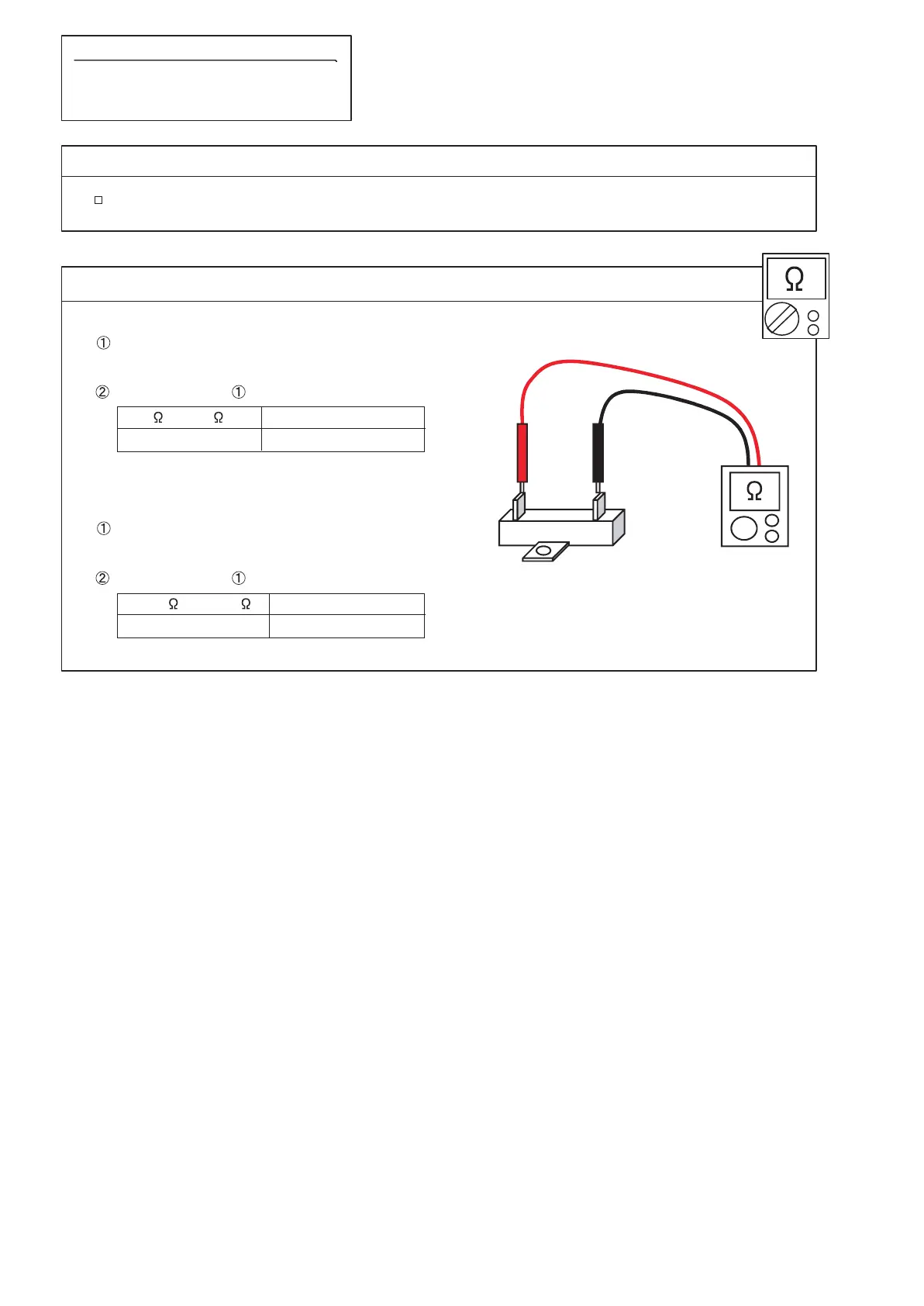

Check Point 1 : Appearance check
Check Point 2 : Electric check
Set the tester to the "Resistance" mode, and measure the resistance value between the terminals.
(No polarity)
Judge the result of as follows:
9.9 to 10.1 Normal
Other than the above Deteriorated, defective
No fissures, breaks, damage, etc. at the body and terminals section?
1. Surge prevention resistor (connected to magnetic contactor)
Set the tester to the "Resistance" mode, and measure the
resistance value between the terminals. (No polarity)
Judge the result of as follows:
53.2k to 58.8k Normal
Other than the above Deteriorated, defective
2. Discharge resistor (connected to electrolytic capacitor)
