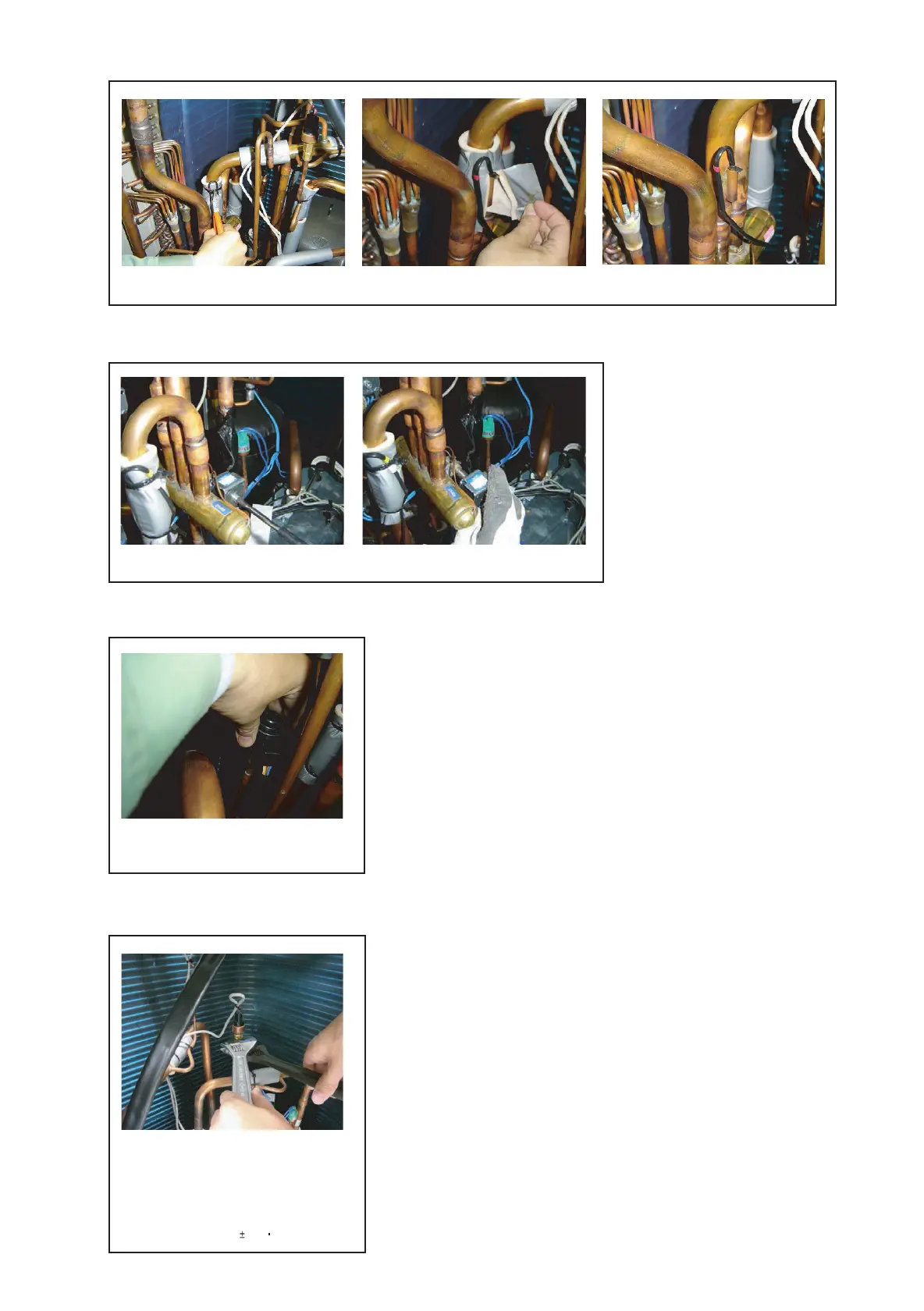

11. THERMISTORS removal

12. SOLENOID COILS (4way valve and Solenoid valves) removal

Cut the binder.

Remove the mounting screw. Remove the SOLENOID COIL.

Remove the PRESSURE SENSOR

with wrench.

There are two sensors.

(High and Low pressure)

Remove the heat insulation.

06-08

14. PRESSURE SENSORS removal

13. EEV COILS removal

Remove the EEV coil by hand.

There are two coils.

Note the tightening torque at the installation.

Tightening torque is 15 1.5N m.
