03-07
+1
3-2-5 "COOL" Position for Outdoor air unit

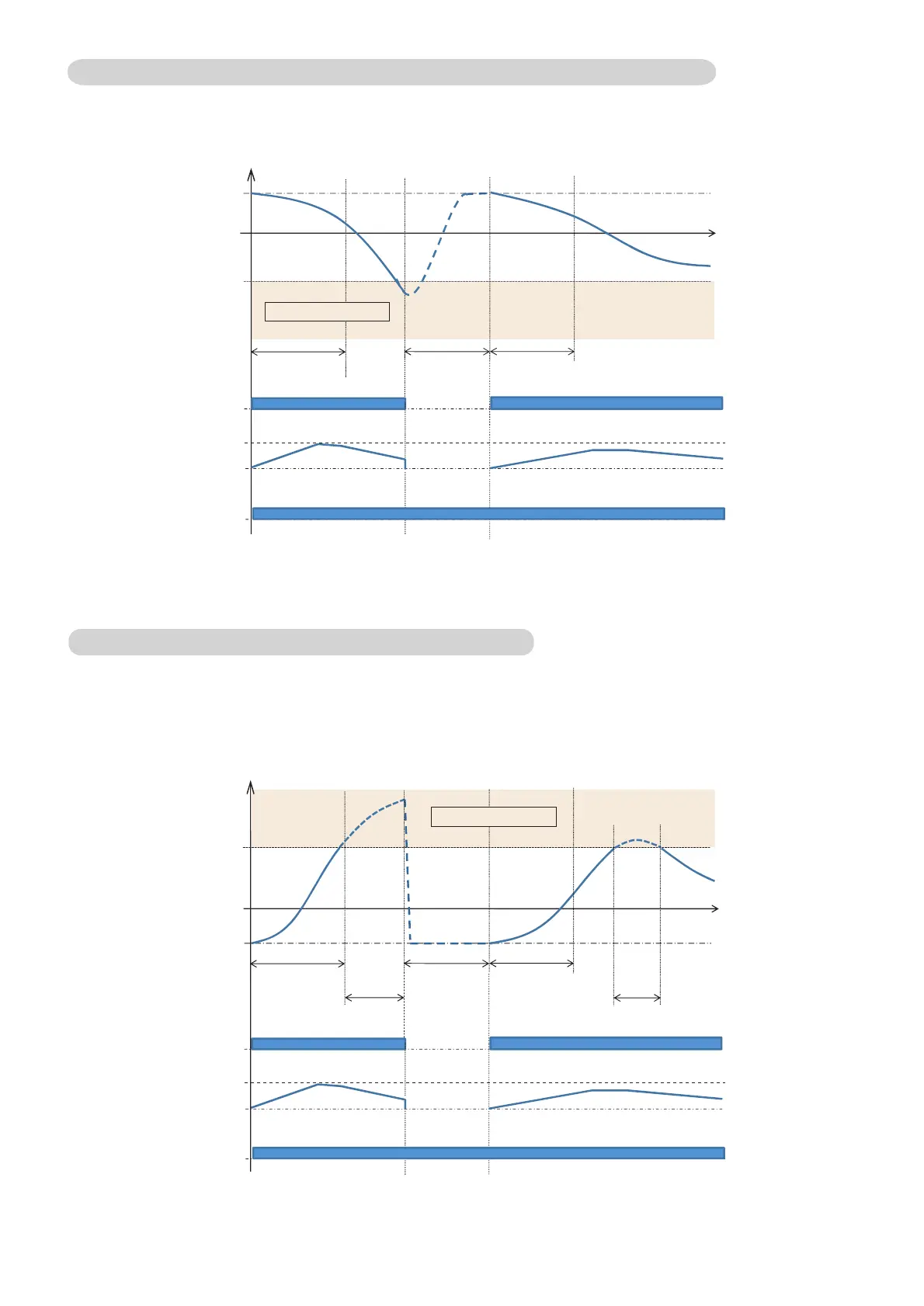

An example for COOLING TEMPERATURE CONTROL time chart (Manual setting)
When using the cooling mode, set the temperature to a value lower than the discharge airflow temperature, otherwise
the outdoor air unit will not start the cooling operation and only the fan will rotate.
 Outdoor air unit
fan
Ts
 Opening of
EEV
100%
0%
 Refrigerant
flow
ON
OFF
ON
OFF
 Discharge airflow
Temperature
Outdoor temp.
Ts : Corrected setting temperature
Ts - 9°F
(Ts - 5°C)
Ts + 1°F (Ts + 0.5°C) : The thres hold temperature of start of refrigerant flow
Ts - 9°F (Ts - 5°C) : The thres hold temperature of stop of refrigerant flow
3-2-6 "HEAT" Position for Outdoor air unit
(1) When using the heating mode, set the temperature to a value higher than the discharge airflow temperature, otherwise
the outdoor air unit will not start the heating operation.
(2)
An example for HEATING TEMPERATURE CONTROL time chart (Manual setting)
During defrosting, the OPERATION indicator lamp flashes 6 sec. ON and 2 sec. OFF, and repeat. The heating operation
will be temporarily interrupted.
Excess capacity area
Thermistor ON
(6 minutes)
Thermistor ON
(6 minutes)
Thermistor OFF
(3 minutes)
Thermistor ON
(6 minutes)
5 minutes has passed
at excess capacity area
5 minutes has passed
at excess capacity area
Thermistor ON
(6 minutes)
Thermistor OFF
(3 minutes)
 Outdoor air unit
fan
Ts
 Opening of
EEV
100%
0%
 Refrigerant
flow
ON
OFF
ON
OFF
 Discharge airflow
Temperature
Outdoor temp.
Ts : Corrected setting temperature
Ts +9°F
(Ts +5°C)
Ts - 1°F (Ts - 0.5°C) : The thres hold temperature of start of refrigerant flow
Ts + 9°F (Ts + 5°C) for 5 minutes or more
: The thres hold temperature of stop of refrigerant flow
Excess capacity area
