COMPACT CASSETTE TYPE
MODELS : AUUA7TLAV, AUUA9TLAV, AUUA12TLAV,
AUUA14TLAV, AUUA18TLAV, AUUA24TLAV

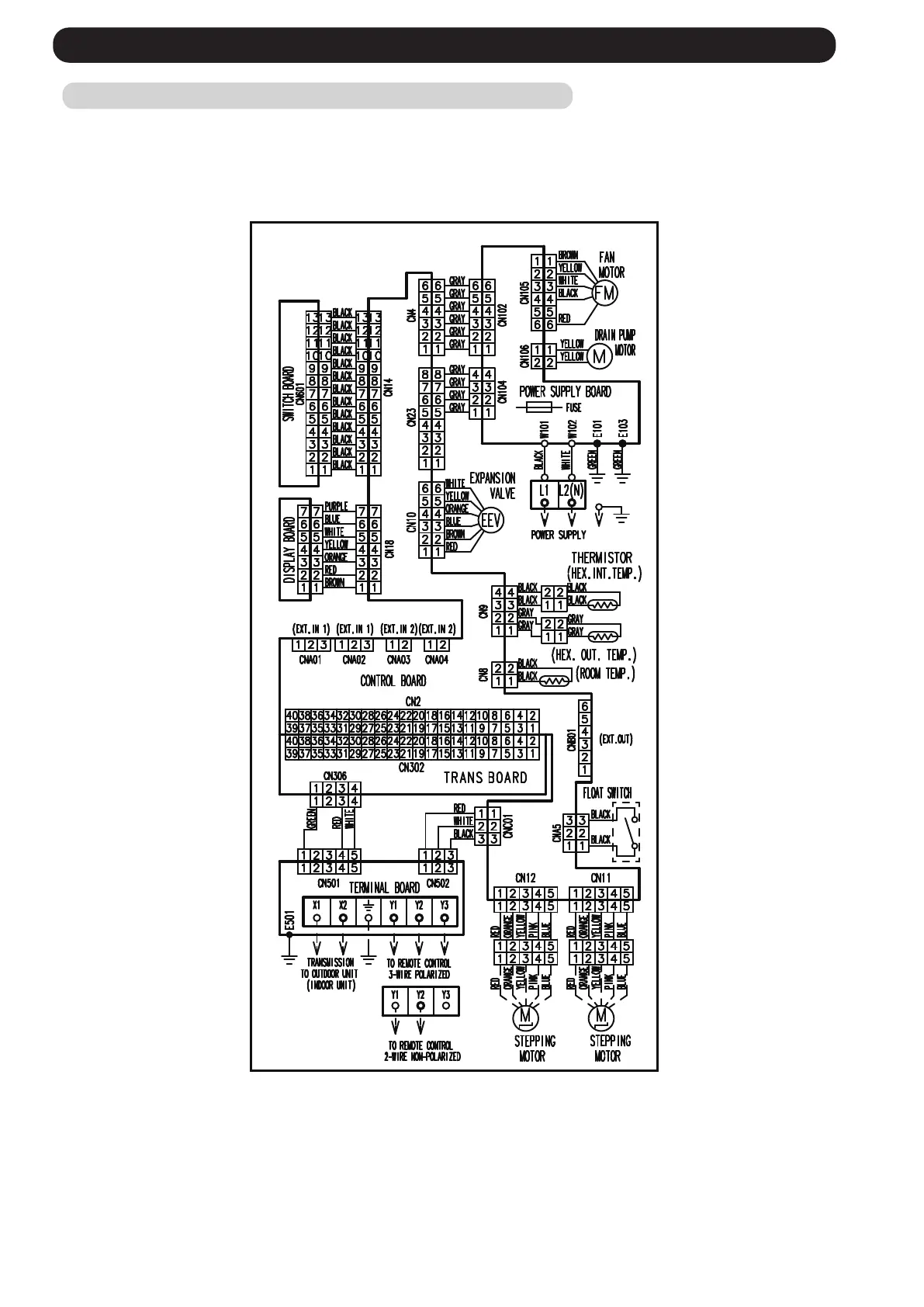

5-2 WIRING DIAGRAM
5-2-1 Indoor Unit
05 - 05
