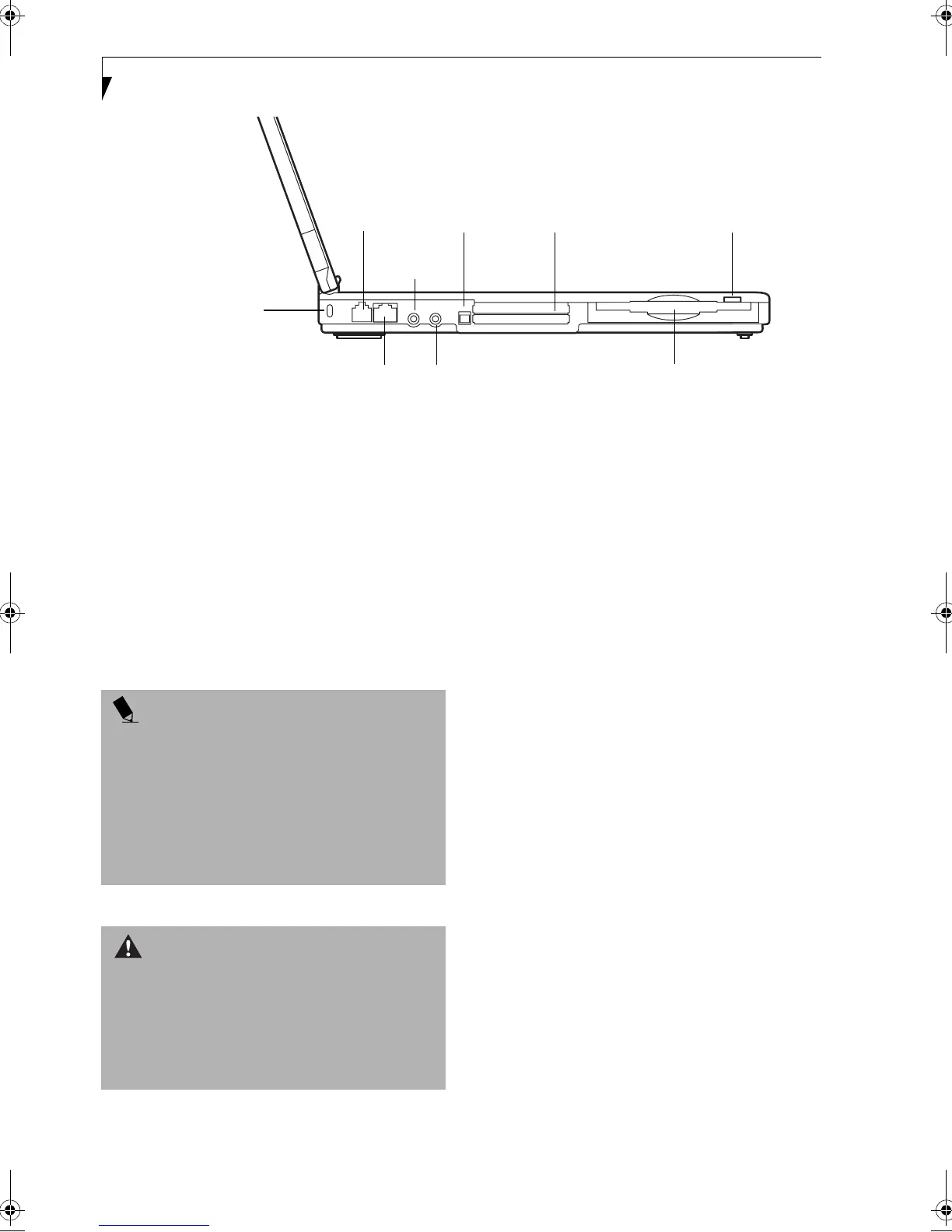

Figure 2-4 LifeBook notebook left-side panel
LEFT-SIDE PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s left-side components. (Figure 2-4)
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional
physical lock-down device.
Modem (RJ-11) Telephone Jack
The Modem (RJ-11) telephone jack is for attaching a
telephone line to the internal 56K modem. (See Modem
(RJ-11) Telephone Jack on page 44 for more information.)
Microphone Jack
The microphone jack allows you to connect an external
mono microphone. (See Microphone Jack on page 45 for
more information.)
PC Card Slot
The PC Card Slot allows you to install one Type I, Type
II or Type III PC Card. (See PC Cards on page 42 for more
information.)
Internal Floppy Disk Drive
A standard floppy disk drive to accommodate 3.5”
floppy disks. ((See Internal Floppy Disk Drive on page 37
for more information.)
Headphone Jack
The headphone jack allows you to connect headphones
or powered external speakers. (See Headphone Jack on
page 45 for more information.)
LAN Jack (RJ-45)
The LAN jack is designed to accept a Local Area
Network (LAN) RJ-45 plug. (See Internal LAN (RJ-45)
Jack on page 44 for more information.)
PC Card Slot
PC Card
Anti-Theft Lock Slot
Modem
LAN Port (RJ-45)
Port (RJ-11)
Microphone
Jack
Headphone Jack
Eject Button
Internal Floppy
Floppy Disk
Eject Button
Disk Drive
POINT
n
The internal modem is designed to the ITU-T V.90
standard. Its maximum speed of 53000bps is the
highest allowed by FCC, and its actual connection
rate depends on the line conditions. The maximum
speed is 33600bps at upload.
n
The internal modems on all Fujitsu LifeBook note-
books from are certified for use in the United States
and Canada. The modem may be certified in other
countries.
WARNING
The internal modem is not intended for use with Digital
PBX systems. Do not connect the internal modem to a
Digital PBX as it may cause serious damage to the inter-
nal modem or your entire LifeBook notebook. Consult
your PBX manufacturer’s documentation for details.
Some hotels have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
