Ports a nd controls
This chapter presents the individual hardware com ponents of your device. It gives an
overview o f the indicators and connections of the device. Please familiarize yourself
with these item s before you start to work with the device.

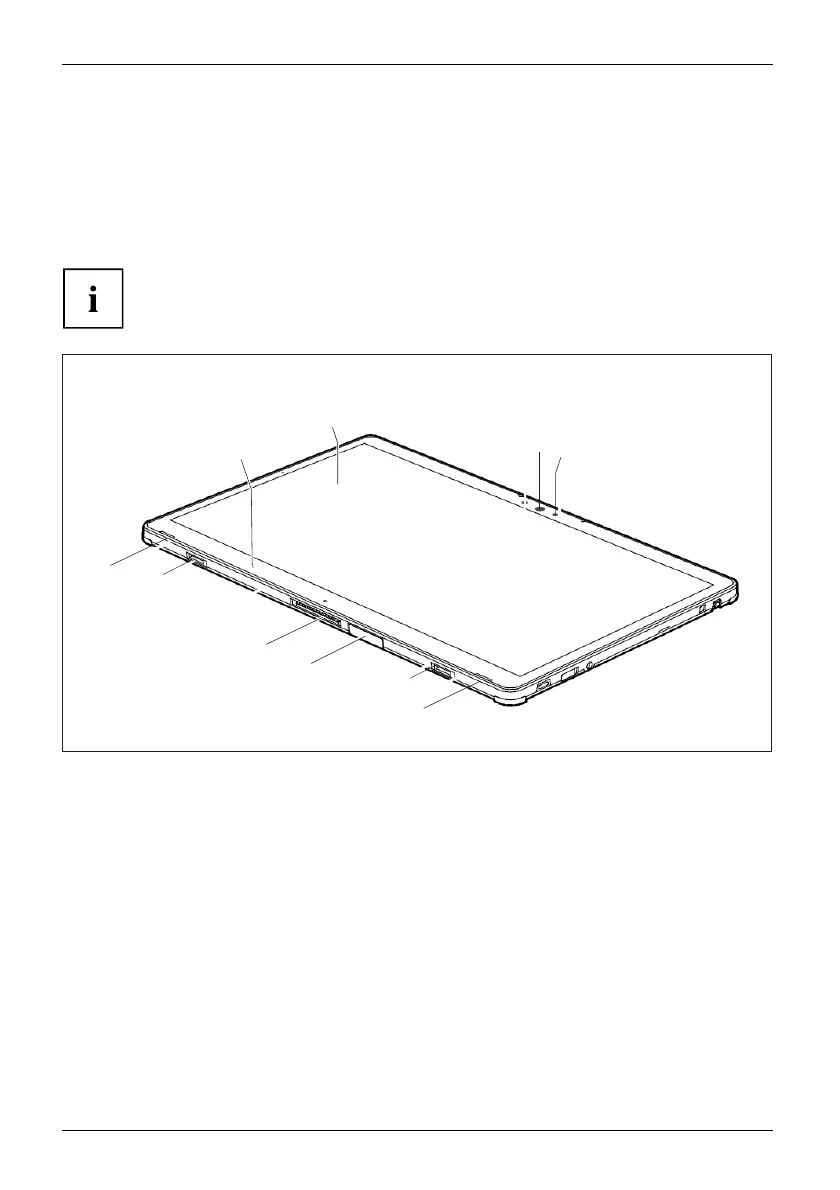

Front (device version without palm vein sens or)
Depending on your selected device version, your tablet PC may b e equipped with a palm
vein sensor on the right-hand side, see "Right side" sub-section on the following pages.
1
2
3
5
5
4
6
7
1 = Touch screen
2 = Webcam
3 = Webcam LED
4 = Speaker
5 = Mechanical mounting for k
eyboard
docking station / cradle
6 = Docking port
7 = Ambient light sensor
8 = Sim door
10 Fujitsu
4
8
