1.46 How to Display and Set Up Navigational Data
Wind, depth, ocean current, water temperature, date and time and waypoint data can
be displayed on this radar, however appropriate sensors are required.
1.46.1 How to set up the navigational data
1. Open the menu.
2. Select [7 INFORMATION BOX].
3. Select [4 NAV DATA SETTINGS].

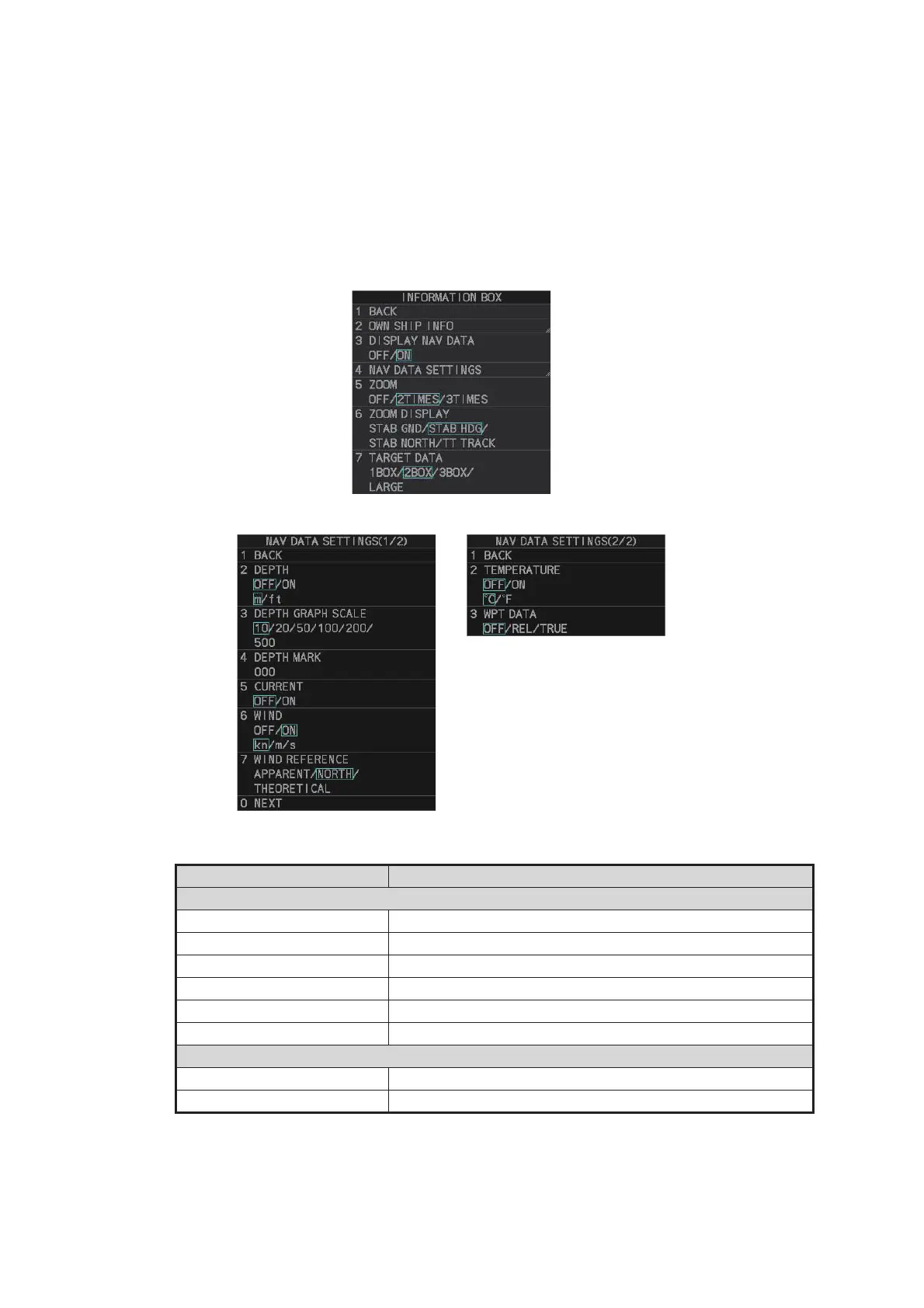

4. Referring to the table below, select the appropriate menu item, then press the EN-
TER MARK key.
5. Referring to the table above, select the appropriate setting, then press the ENTER
MARK key.
6. Close the menu.
Menu item Available settings
Page 1
[2 DEPTH] [OFF], [ON]; [m], [ft]
[3 DEPTH GRAPH SCALE] [10], [20], [50], [100], [200], [500] (m)
[4 DEPTH MARK] [000] to [500] (m)
[5 CURRENT] [OFF], [ON]
[6 WIND] [OFF], [ON]; [kn], [m/s]
[7 WIND REFERENCE] [APPARENT], [NORTH], [THEORETICAL]
Page 2
[2 TEMPERATURE] [OFF], [ON]; [°C], [°F]
[3 WPT DATA] [OFF], [REL], [TRUE]
