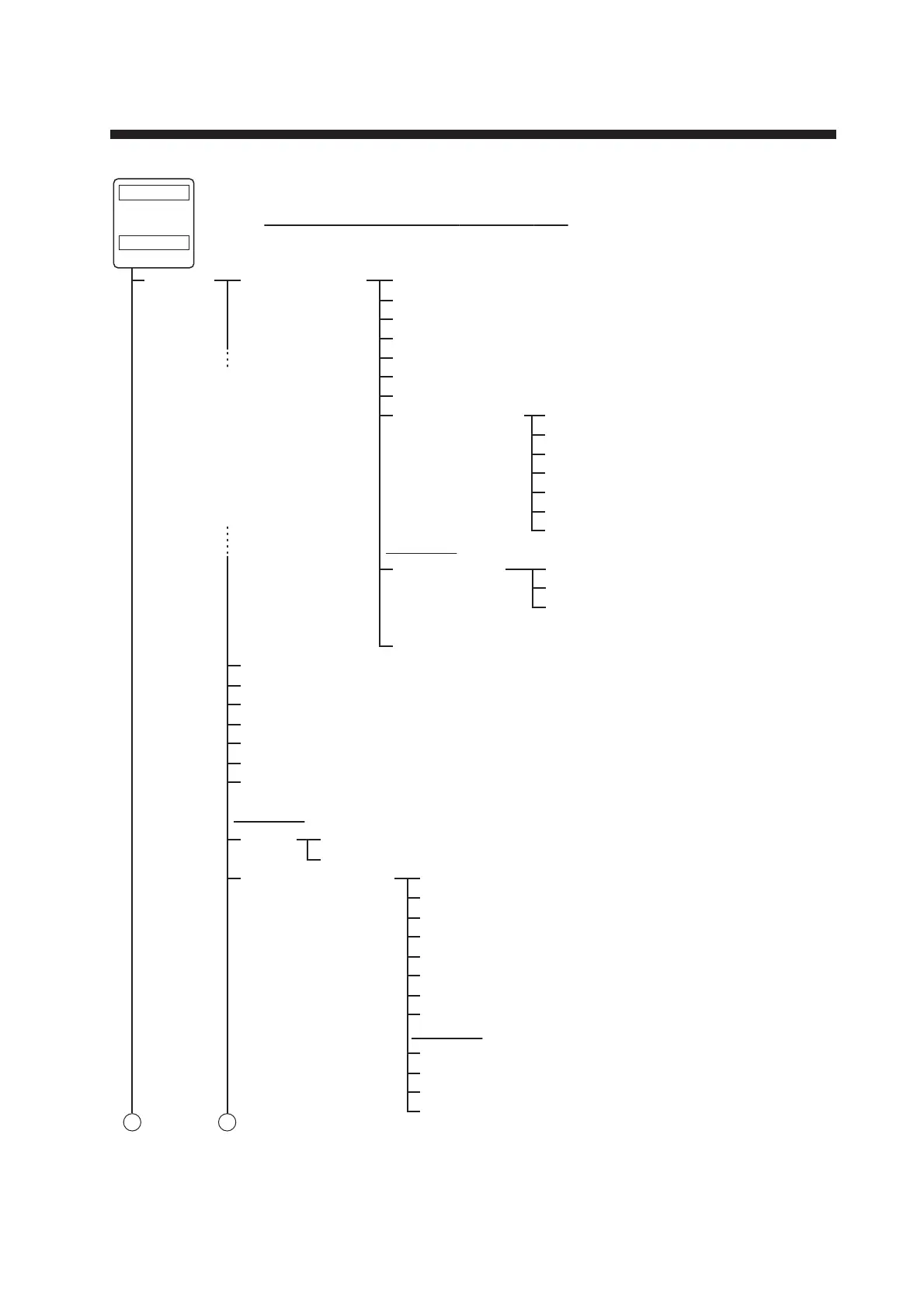

1
2
MENU box
(click)
MENU key
(press)
or
1 ECHO 2 CUSTOMIZED
ECHO
2 INT REJECTOR (OFF, 1, 2, 3)
3 ECHO STRETCH (OFF, 1, 2, 3)
4 ECHO AVERAGE (OFF, 1, 2, 3)
5 TARGET ANALYZER (OFF, ON)*
2
6 RAIN ECHO HATCHING (OFF, ON)*
2
7 NOISE REJECTOR (OFF, ON)
8 VIDEO CONTRAST TYPE (1, 2, 3, 4, A, B, C)
2 0.5NM (S1, S2)
3 0.75NM (S1, S2, M1)
4 1.5NM (S1, S2, M1, M2)
5 3NM (S2, M1, M2, M3)
6 6NM (M1, M2, M3, L)
7 12NM (M1, M2, M3, L)
8 24NM (M2, M3, L)
9
PULSE LENGTH
2 CONDITION
3 2ND ECHO REJ (OFF, ON)
4 TUNING INTIALIZE (Requires antenna rotation)
5 PERFORMANCE MONITOR (OFF, ON, GRAPH ONLY)
*
1
6 PM ARC (2, 3, 5, 6)
*
1
7 SART (OFF, ON)
8 ECHO AREA (CIRCLE, WIDE, ALL)*
2
9 WIPER (OFF, 1, 2)
2 SIGNAL ENHANCEMENT (1, 2, 3)
3 SUPPRESS SECTOR (START: 000° to 359°; ANGLE: 000° to 180°)
2 ACE
3 SELECT CUSTOM 2 CUSTOM1 (OFF, ON)
3 CUSTOM2 (OFF, ON)
4 CUSTOM3 (OFF, ON)
5 NEAR (OFF, ON)
2 SHIP (OFF, ON)
3 HARBOR (OFF, ON)
4 BIRD (OFF,
ON
)*
3
5 COAST (OFF, ON)
6 FAR (OFF, ON)
7 NEAR BUOY (OFF,
ON
)
8 FAR BUOY (OFF, ON)
9 ROUGH SEA (OFF, ON)
3 DEFAULT (NO, SAVE, USER, FACTORY)
4 ACE (OFF, ON)
Next page
Next page
Next page
2 STC CURVE (2, 2.5, 3, 3.5, 4.2)
3 STC RANGE (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
4 LOW LEVEL ECHO (0 to 8)
Default settings are listed in Bold Italic font.
*
1
: Options only available when
PM function is installed.
*
2
: Shown for B/W-types only.
*
3
: Appears as “4 ICE” when
Ice Mode is enabled at
installation.
To Next Page
