5. VIDEO PLOTTER OPERATION
5-12
5.8 Own Ship and Other Ship’s Track
A total of 20,000 points are allotted for storage of own ship’s track, marks and lines.
For target tracks, the total number of points is15,000.
When this memory becomes full, the oldest track is deleted to make room for the lat-
est. For that reason you may want to adjust the recording interval to conserve the
memory.

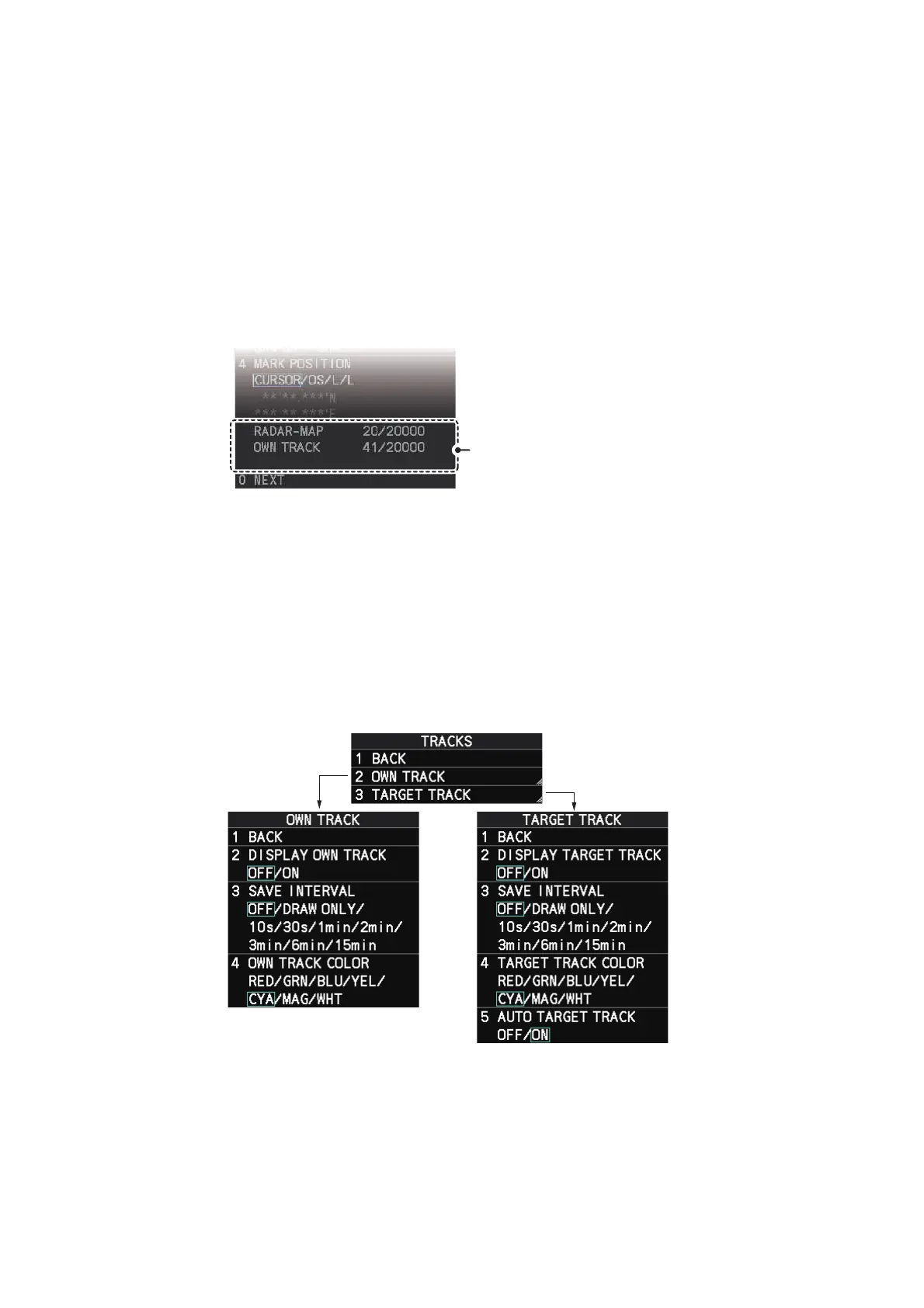

Note: You can check how many tracks are in use from [MAIN MENU] o [2 MARKS*]
o [5 RADAR MAP]. (*: For A/B/W-types with Radar Plotter functionality, this menu ap-
pears as [2 MARKS•CHART].)
5.8.1 How to show/hide tracks
You can show or hide tracks for own ship or for targets (A/B/W-types only).
1. Open the menu.
2. Select [2 MARKS].
For A/B/W-types with Radar Plotter functionality, select [2 MARKS•CHART].
3. Select [7 TRACKS].
4. Select [2 OWN TRACK] or [3 TARGET TRACK] as appropriate.
Note: [3 TARGET TRACK] is available only for A/B/W-type radars.
5. Select [2 DISPLAY OWN TRACK] or [3 DISPLAY TARGET TRACK], as appropri-
ate.
6. Select [ON] to show tracks, or [OFF] to hide tracks.
Note: [3 SAVE INTERVAL] must be set to other than [OFF] to show tracks.
7. Close the menu.
Total number of marks
and lines appear at
[
RADAR-MAP
]
, own
and target tracks
appear here also.
Shown only for
A/B/W-types
To Next Page
