1.54 How to Select a Display Mode (B/W-type Only)

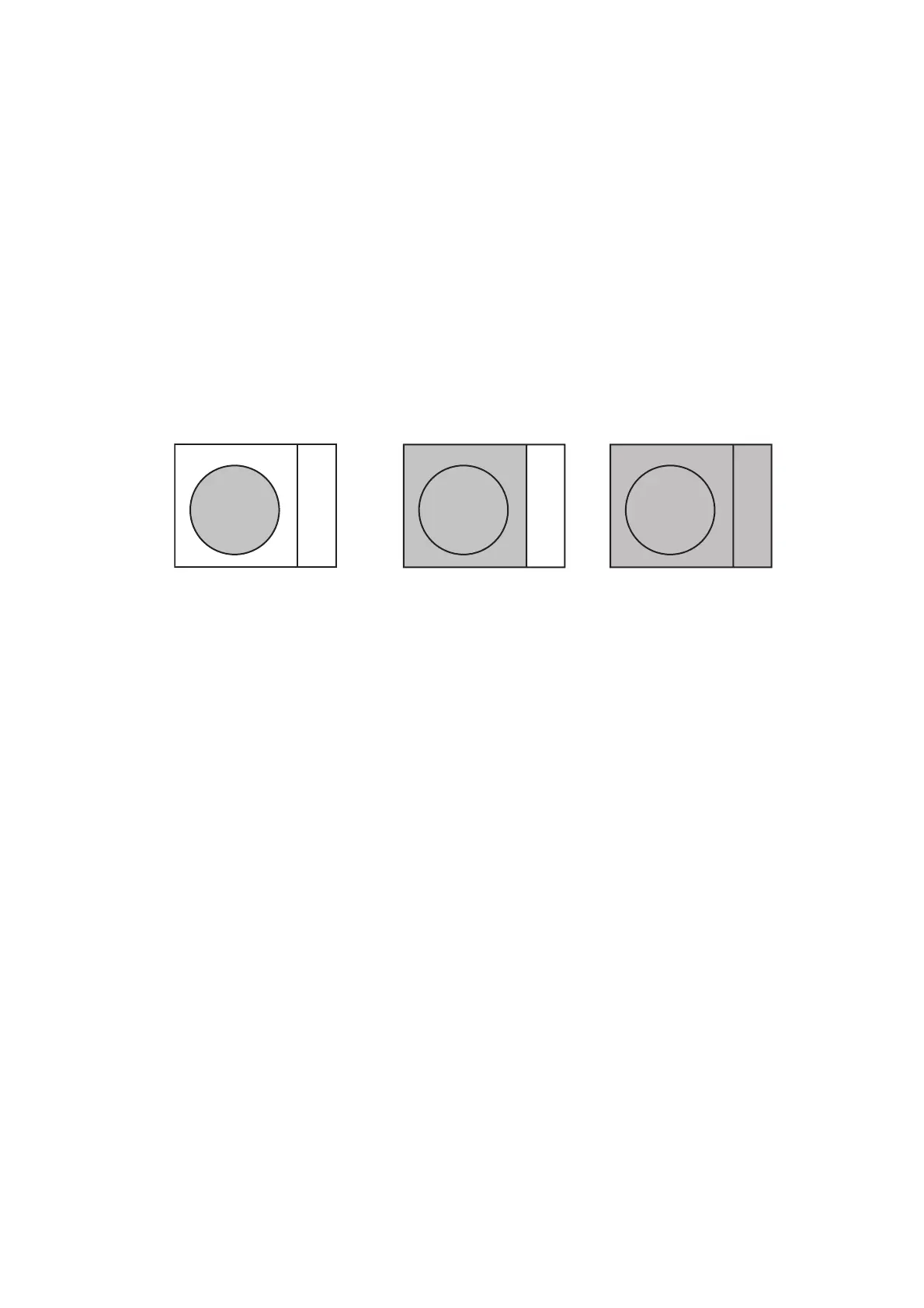

B/W-type radars of this series have three echo display modes available:
• [CIRCLE] mode: The echoes are displayed inside a circle on the screen. This is the
default (IMO compliant) mode.
• [WIDE] mode: The echoes are displayed in a square area, but are not displayed in
the data display area.
• [ALL] mode: The echoes are displayed across the entire screen.
Follow the procedure below to change display modes.
1. Open the menu.
2. Select [1 ECHO]. The [ECHO] menu appears.
3. Select [8 ECHO AREA].
4. Select the appropriate setting, then press the ENTER MARK key.
5. Close the menu.
