1.41.2 How to set the net cursor dimensions and orientation
1. Open the menu.
2. Select [3 NAV TOOLS].
3. Select [3 EBL•VRM•CURSOR SET].
4. Select [0 NEXT] to show the second page of the menu.
5. [3 FRONT HALF LENGTH].
6. Rotate the scrollwheel, then left-click to set the length of selected net section.
Note: The length appears in the [WARP LENGTH] indication. Adjust the values
so that the total length for front and rear is equal to, or less than 3000m.
7. Select [4 REAR HALF LENGTH].
8. Rotate the scrollwheel, then left-click to set the
length of selected net section.
Note: The length appears in the [WARP LENGTH]
indication. Adjust the values so that the total length
for front and rear is equal to, or less than 3000m.
9. Select [5 NET WIDTH].
10. Rotate the scrollwheel, then left-click to set the net
width.
11. Select [6 ROTATE STEP].
Select [360°] or [32 POINTS], then left-click.
The net cursor moves in the same manner as EBL2 moves. Select [360°] to move
with 0.1° steps, or select [32 POINTS] to move with 11.25° steps.
12. Close the menu.
13. Insert the net cursor at the location of the net with the EBL offset function.
14. Rotate the EBL knob to adjust the orientation the net cursor until the cursor is in
line with, or against, the tide direction.
1) Press the EBL OFFSET key.
2) Move the cursor onto the net location, then left-click.

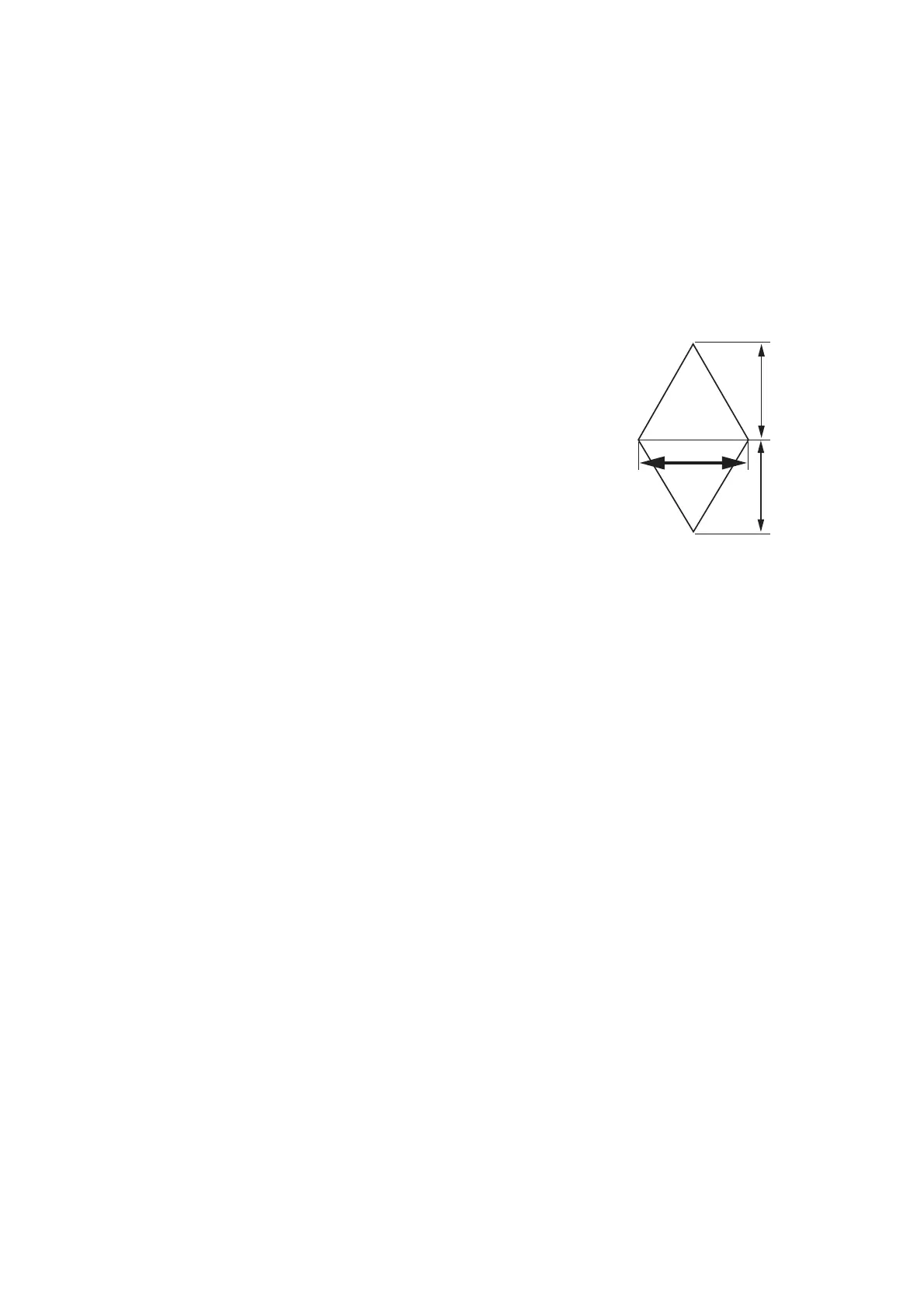

Net width
a
b
Forward
length of
net
Forward
length of
net
Rear
length
of net
To Next Page
