Adjusting the length of the non-slip control sticks

<RXPD\DGMXVWWKHWHQVLRQRI\RXUVWLFNVWRSURYLGHWKHIHHOWKDW\RXSUHIHUIRUÀ\LQJ7RDGMXVW\RXUVSULQJV\RX¶OOKDYH

to remove the rear case of the transmitter. First, remove the battery cover on the rear of the transmitter. Next, unplug the

battery wire, and remove the battery from the transmitter. Next, using a screwdriver, remove the four screws that hold the

transmitter’s rear cover in position, and put them in a safe place. Gently ease off the transmitter’s rear cover. Now you’ll

VHHWKHYLHZVKRZQLQWKH¿JXUHDERYH

Using a small Phillips screwdriver, rotate the adjusting screw for each stick for the desired spring tension. The tension

increases when the adjusting screw is turned clockwise.

:KHQ\RXDUHVDWLV¿HGZLWKWKHVSULQJWHQVLRQVUHDWWDFKWKHWUDQVPLWWHUVUHDUFRYHU:KHQWKHFRYHULVSURSHUO\LQSODFH

reinstall and tighten the four screws. Reinstall the battery and cover.

Adjusting Display Contrast:

To adjust the display contrast, from the home menu press and hold the END BUTTON.

Turn the DIAL while still holding the END BUTTON:

clockwise to brighten

counterclockwise to darken the display

Let go off the DIAL and the END BUTTON.

You may change the length of the control sticks to make your transmitter more

comfortable to hold and operate. To lengthen or shorten your transmitter’s

VWLFNV¿UVWXQORFNWKHVWLFNWLSE\KROGLQJORFNLQJSLHFH%DQGWXUQLQJVWLFNWLS

A counterclockwise. Next, move the locking piece B up or down (to lengthen

or shorten). When the length feels comfortable, lock the position by turning

locking piece B counterclockwise.

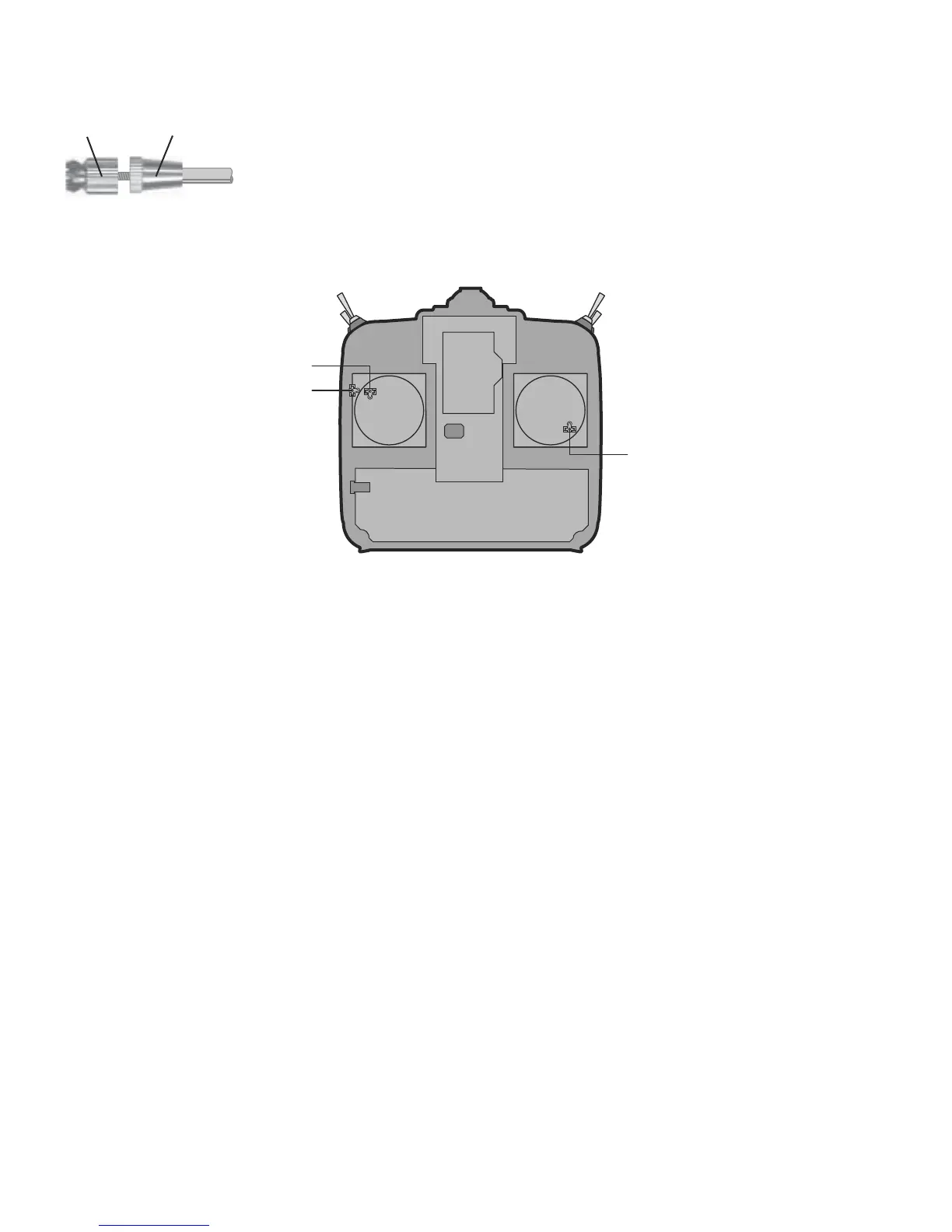

Stick tip A Locking piece B

Stick lever tension adjustment

Mode 2 transmitter with rear cover removed.

Aileron

Elevator

Rudde

Stick Stick
