RADIO INSTALLATION
Follow these guidelines to properly mount the servos, receiver and battery.
• Make certain the alignment tab on the battery, switch and servo connectors is oriented correctly and “keys” into the
corresponding notch in the receiver or connectors before plugging them in. When unplugging connectors, never pull on
the wires. Always pull on the plastic connector instead.
• If your aileron servo (or others) are too far away to plug into the receiver, use an aileron extension cord to extend the
length of the servo lead. Additional Futaba extension cords of varying lengths are available from your hobby dealer.
Always use an extension of the proper length. Avoid plugging multiple extensions together to attain your desired length.
If distance is greater than 18” or multiple or high current draw servos are being used, use Futaba Heavy-Duty servo
extensions.
Servo
Rubber
grommet
Servo
Rubber
grommet

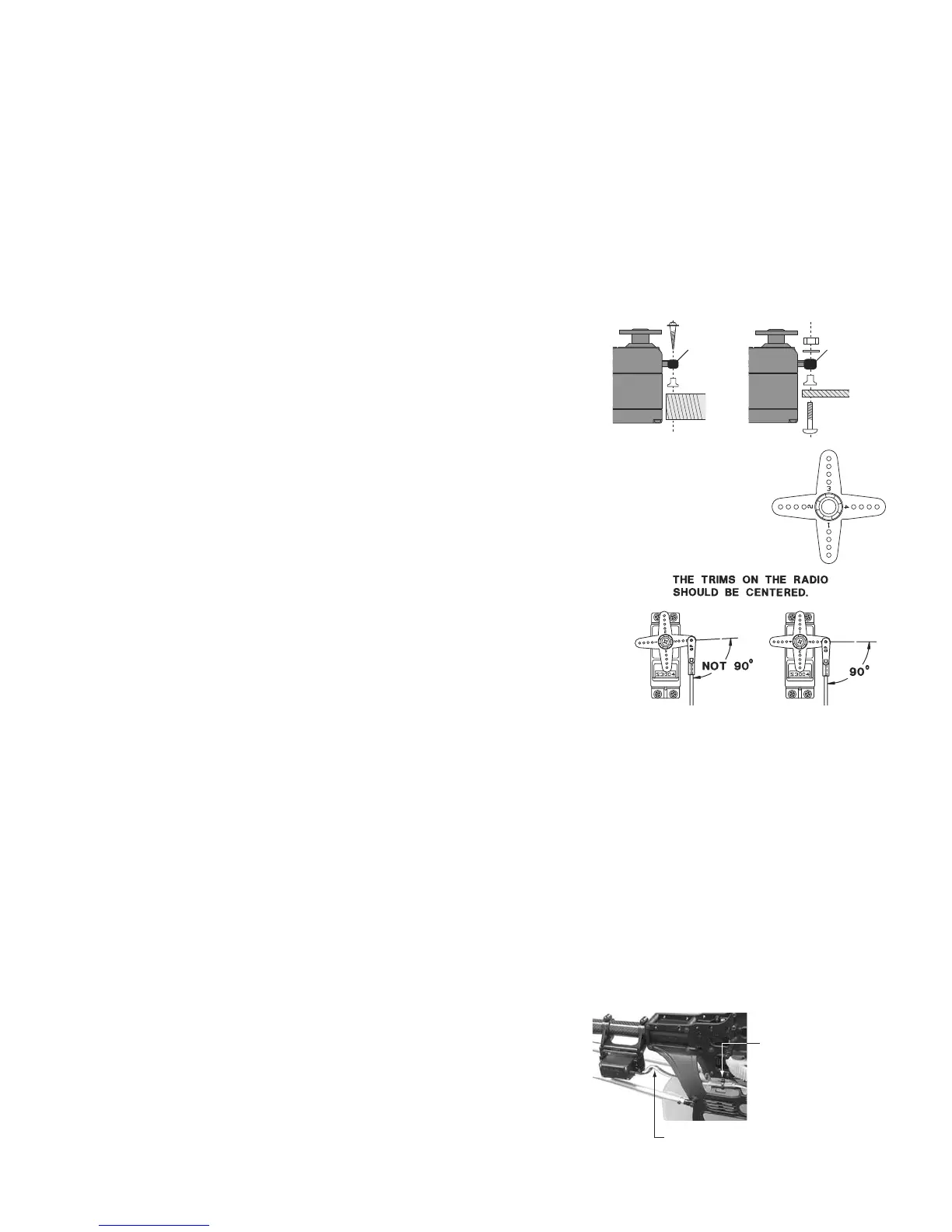

• Always mount the servos with the supplied rubber grommets. Do not over
tighten the screws. No part of the servo casing should contact the mounting
UDLOVVHUYRWUD\RUDQ\RWKHUSDUWRIWKHDLUSODQHKHOLFRSWHUVWUXFWXUH2WKHUZLVH
YLEUDWLRQZLOOEHWUDQVPLWWHGWRWKHVHUYRFDXVLQJSUHPDWXUHZHDUDQGRUVHUYR
failure.
• Note the small numbers (1, 2, 3, 4) molded into each arm on the Futaba 4-arm servo arms. The numbers
indicate how many degrees each arm is “off” from 90 degrees to correct for minute manufacturing
deviations from servo to servo.
• To center the servos, connect them to the receiver and turn on the transmitter
and receiver. Center the trims on the transmitter, then find the arm that will be
perpendicular to the pushrod when placed on the servo.
• After the servos are installed, operate each servo over its full travel and check that the pushrods and servo arms do not
bind or contact each other. Also make sure the controls do not require excess force to operate. If there is an objectionable
buzzing sound coming from a servo, there is probably too much resistance in the control. Find and correct the problem.
Even if there is no servo damage, excess battery drain will result.
• Use the mounting plateIURPWKHUHFHLYHURQRIIVZLWFKDVDWHPSODWHIRUWKHFXWRXWDQGVFUHZKROHV0RXQWWKHVZLWFK
on the side of the fuselage opposite the engine exhaust, and where it won’t be inadvertently turned on or off during
handling or storage. Be certain the switch moves without restriction and “snaps” from ON to OFF, and that the cutout
allows full motion of the switch in both directions.
• When you install the switch harness to the helicopter, please use the switch cover. Generally sandwich the frame between
the switch and switch cover and securely tighten the screws. Different models might require different installations. If so,
please follow the model's instruction manual.
Fasten about 5-10cm
from the servo outlet
so that the lead wire
is neat.
Slack in the lead wire.
• To prevent the servo lead wires from being broken by vibration during
ÀLJKWSURYLGHDVOLJKWDPRXQWRIVODFNRUH[WUDVRWKDWWKHZLUHVWLFNVRXW
slightly and fasten it at suitable points. In addition, periodically check the
wire during daily maintenance.
